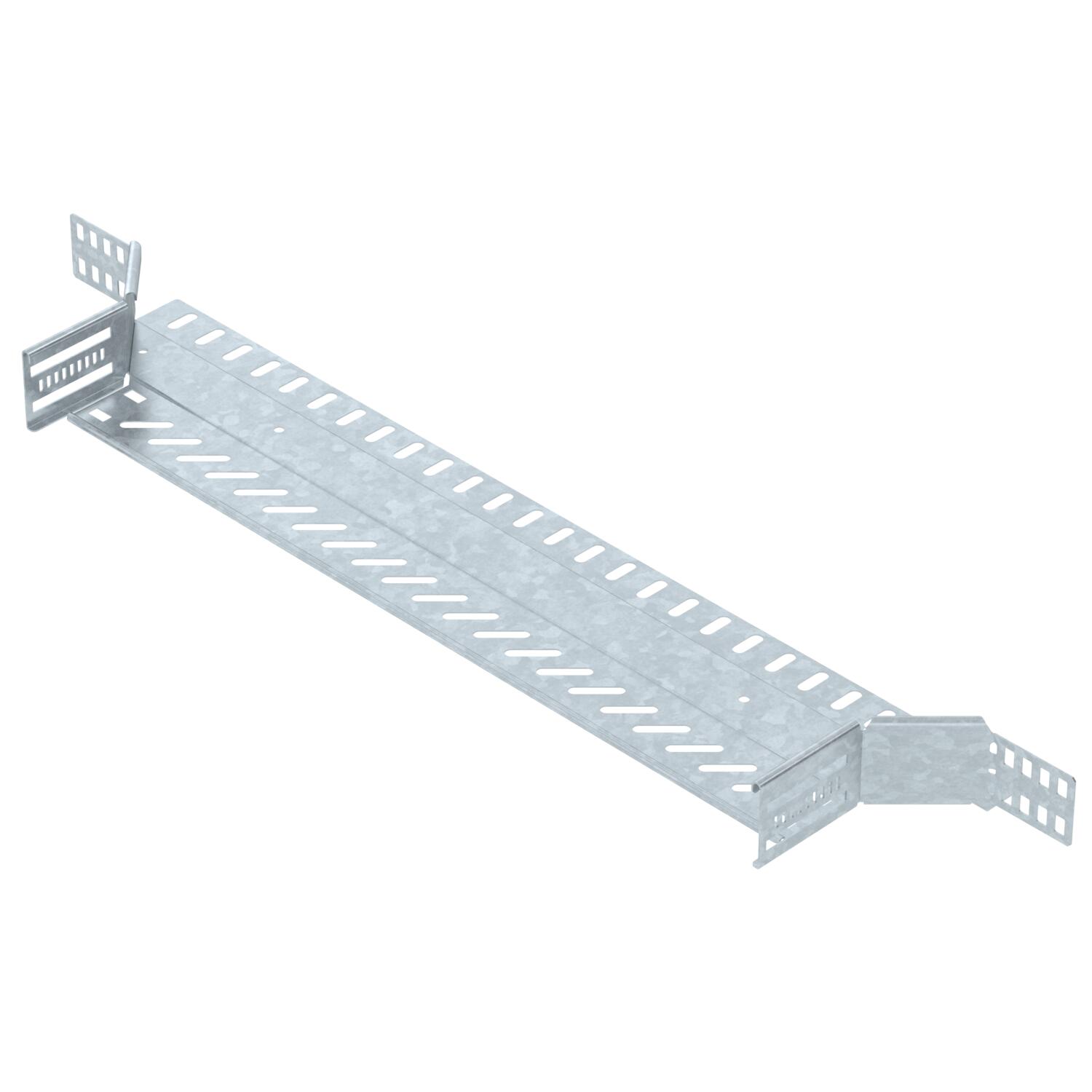

Add-on tee 60 FT

Item no. 6042223 | EAN 4012197342548

Item no. / Types

Width

Colour	zinc

Product description

Product description

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	2,9783 kg CO2e / 1 Piece
Colour	zinc
Connector version	Integrated connector
Departing width	600 mm

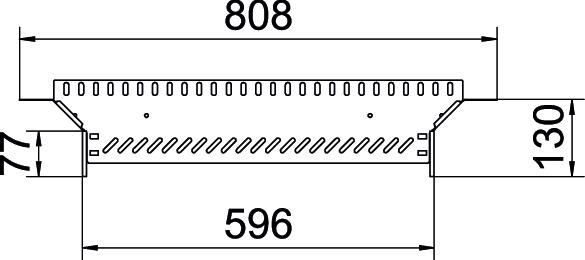

Dimension	60x600
Dimension B	600 mm
Height	60 mm
Maintain electrical functions	yes
Material	Steel
Material thickness, floor plate	1 mm
NATO hole pattern	no

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	16 St.
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	600 mm

All types

All types

Types	Width	Colour	Item no.
RAA 610 FT	100 mm	zinc	6042211
RAA 615 FT	150 mm	zinc	6042213
RAA 620 FT	200 mm	zinc	6042215
RAA 630 FT	300 mm	zinc	6042217
RAA 640 FT	400 mm	zinc	6042219
RAA 650 FT	500 mm	zinc	6042221
RAA 660 FT	600 mm	zinc	6042223
