Add-on tee 110 FT

Item no. 6042251 | EAN 4012197342753

Item no. / Types

Width

Colour	zinc

Product description

Product description

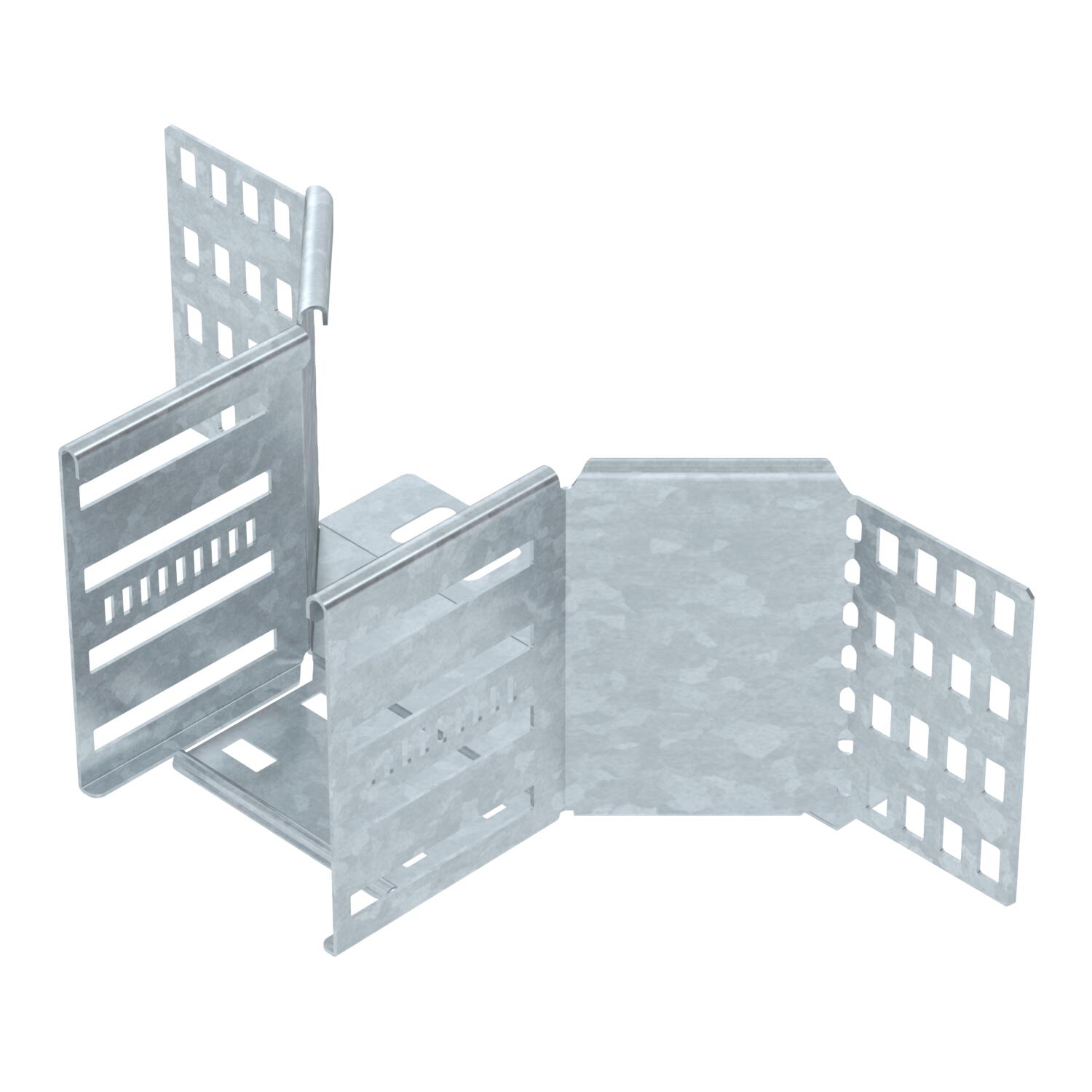

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,6835 kg CO2e / 1 Piece
Colour	zinc
Connector version	Integrated connector
Departing width	100 mm

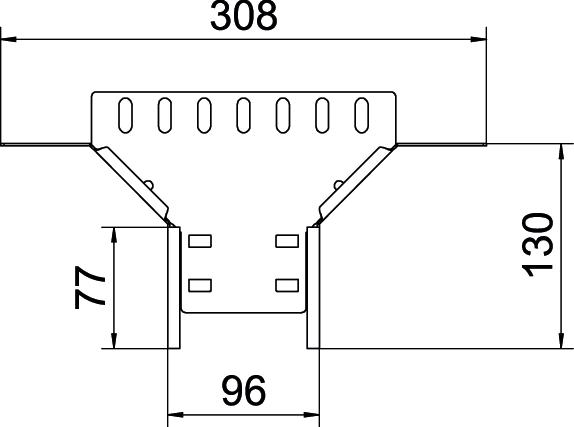

Dimension	110x100
Dimension B	100 mm
Height	110 mm
Maintain electrical functions	no
Material	Steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	18 St.
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Colour	Item no.
RAA 110 FT	100 mm	zinc	6042251
RAA 115 FT	150 mm	zinc	6042253
RAA 120 FT	200 mm	zinc	6042255
RAA 130 FT	300 mm	zinc	6042257
RAA 140 FT	400 mm	zinc	6042259
RAA 150 FT	500 mm	zinc	6042261
RAA 160 FT	600 mm	zinc	6042263
