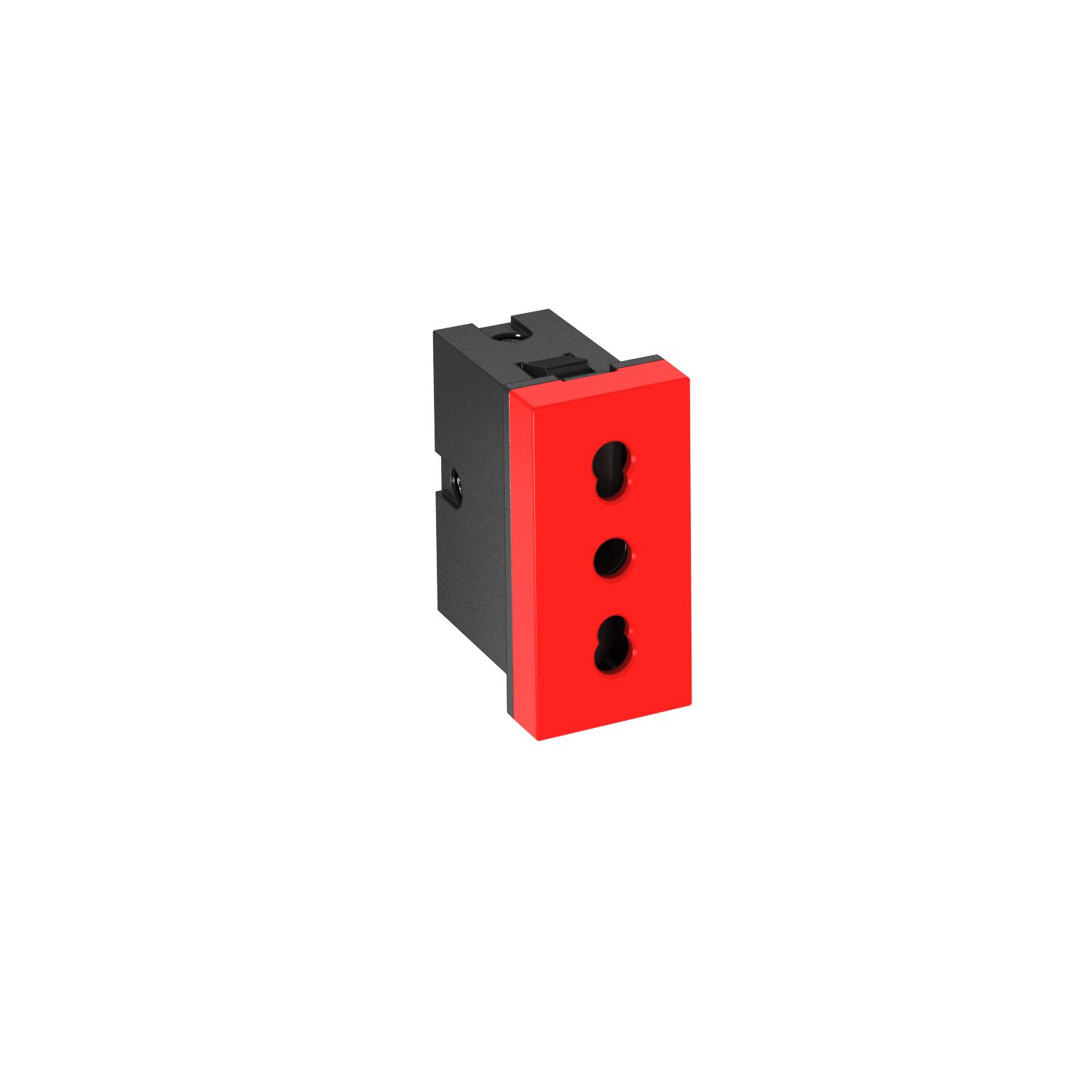

90° socket, Italy, single, half module width

Item no. / Types

Number of units	1

Version for	Italy

Colour

Product description

Product description

Single 90° socket, Italy P17/11, with increased touch protection, with screw terminals, 2-pin, 16 A, 250 V~.

Technical data

Closable	no
Colour	Signal red; RAL 3001
Connection type	Screw terminal
Cover	Central plate
Depth	37 mm

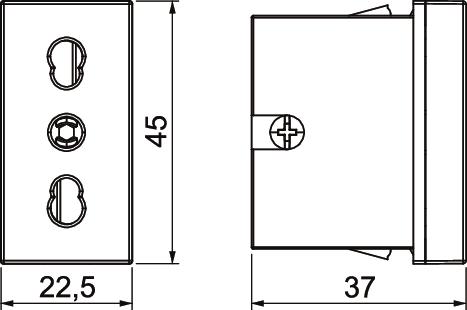

Dimension	22,5x45x37
Ejection mechanism	no
Error current protection	no
Fastening type	Lock
For more difficult conditions (according to VDE)	no
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	no
Material	Polycarbonate
Mounting type	Device installation duct
Nominal current	16 A
Nominal voltage	250 V
Number of poles	2

Number of units	1
Operating temperature, max.	40 °C
Operating temperature, min.	-5 °C
Printed label/coding	Without printing
Protection rating	Other
Rotated central insert	no
Socket angle	0°
Special power supply	Without special power supply
Surface version	Matt
Surge protection	no
Transparent	no
Version for	Italy
Warning light	no
Width	22,5 mm
With fine-wire fuse	no
With functional lighting	no
With on/off switch	no
With orientation lighting	no
