90° socket, Italy, single

Item no. / Types

Number of units	1

Version for	Italy

Colour

Product description

Product description

Single 90° socket, Italy P17/11, with increased touch protection, with screw terminals, 2-pin, 16 A, 250 V~.

Technical data

Closable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0091 kg CO₂e / 1 Piece
Colour	Pure white; RAL 9010
Connection type	Screw terminal
Cover	Central plate

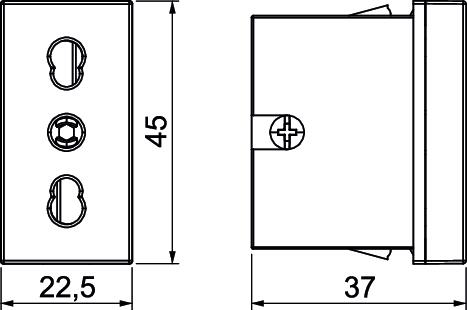

Depth	37 mm
Dimension	250V, 10/16A
Ejection mechanism	no
Error current protection	no
Fastening type	Lock
For more difficult conditions (according to VDE)	no
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	no
Material	Polycarbonate
Mounting type	Device installation duct
Nominal current	16 A
Nominal voltage	250 V

Number of poles	2
Number of units	1
Operating temperature, max.	40 °C
Operating temperature, min.	-5 °C
Printed label/coding	Without printing
Protection rating	Other
Rotated central insert	no
Socket angle	0°
Special power supply	Without special power supply
Surface version	Matt
Surge protection	no
Transparent	no
Version for	Italy
Warning light	no
Width	22,5 mm
With fine-wire fuse	no
With functional lighting	no
With on/off switch	no
With orientation lighting	no
