90° bend 60 FT
Item no. 6211450 | EAN 4012196684991
- Product description
-

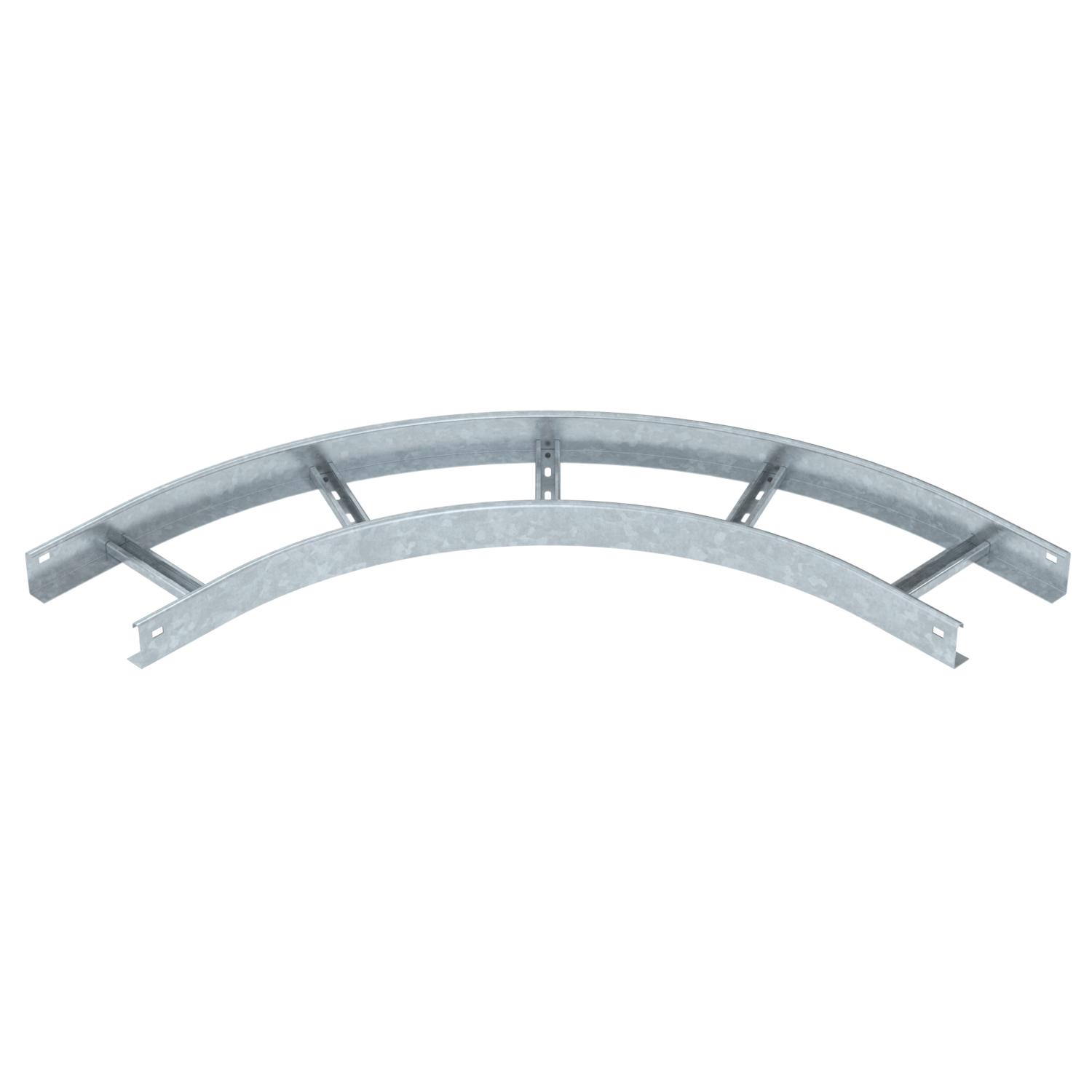

Product descriptionHorizontal 90° bend, fitting for cable ladders, side height 60 mm With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Without connectors Dimension 60x200 Dimension B 200 mm Dimension R 200 mm Height 60 mm Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FT
LVG 60 FT 6208843 - Downloads
-
Data sheet LB 90 620 R5 FT / 6211450 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LB 90 620 R5 FT / 6211450 , 0.10MB , pdfUK Declaration of Conformity LB 90 620 R5 FT / 6211450 , 0.09MB , pdfREACH Declaration of conformity LB 90 620 R5 FT / 6211450 , 0.12MB , pdfRoHS Declaration of conformity LB 90 620 R5 FT / 6211450 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
