90° bend 60 FS
Item no. 6211422 | EAN 4012196684892
- Product description
-

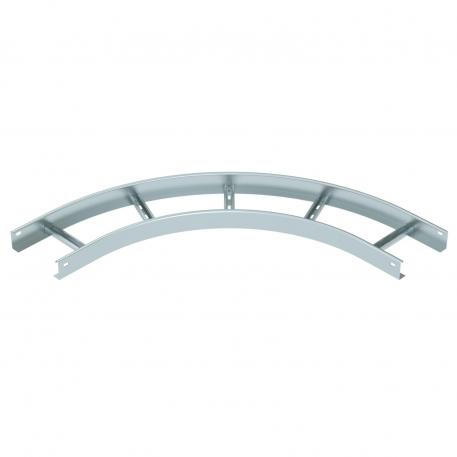

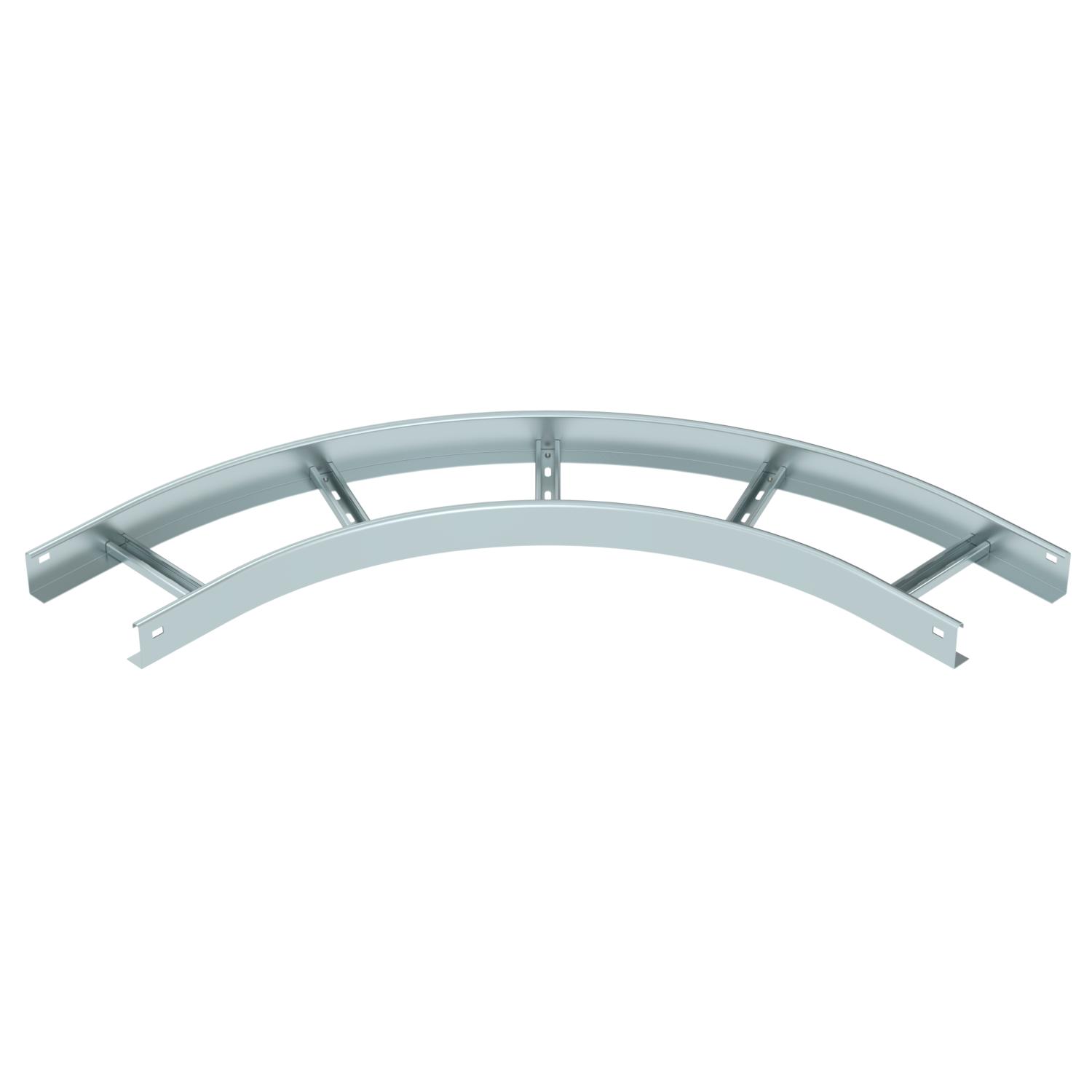

Product descriptionHorizontal 90° bend, fitting for cable ladders, side height 60 mm With connector perforation. Can be used in indoor areas. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension 60x200 Dimension B 200 mm Dimension R 200 mm Height 60 mm Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FS
LVG 60 FS 6208840 - Downloads
-
