100 FS reducer/stop-end

Item no. 7111802 | EAN 4012196341801

100 mm
Product description
Product description

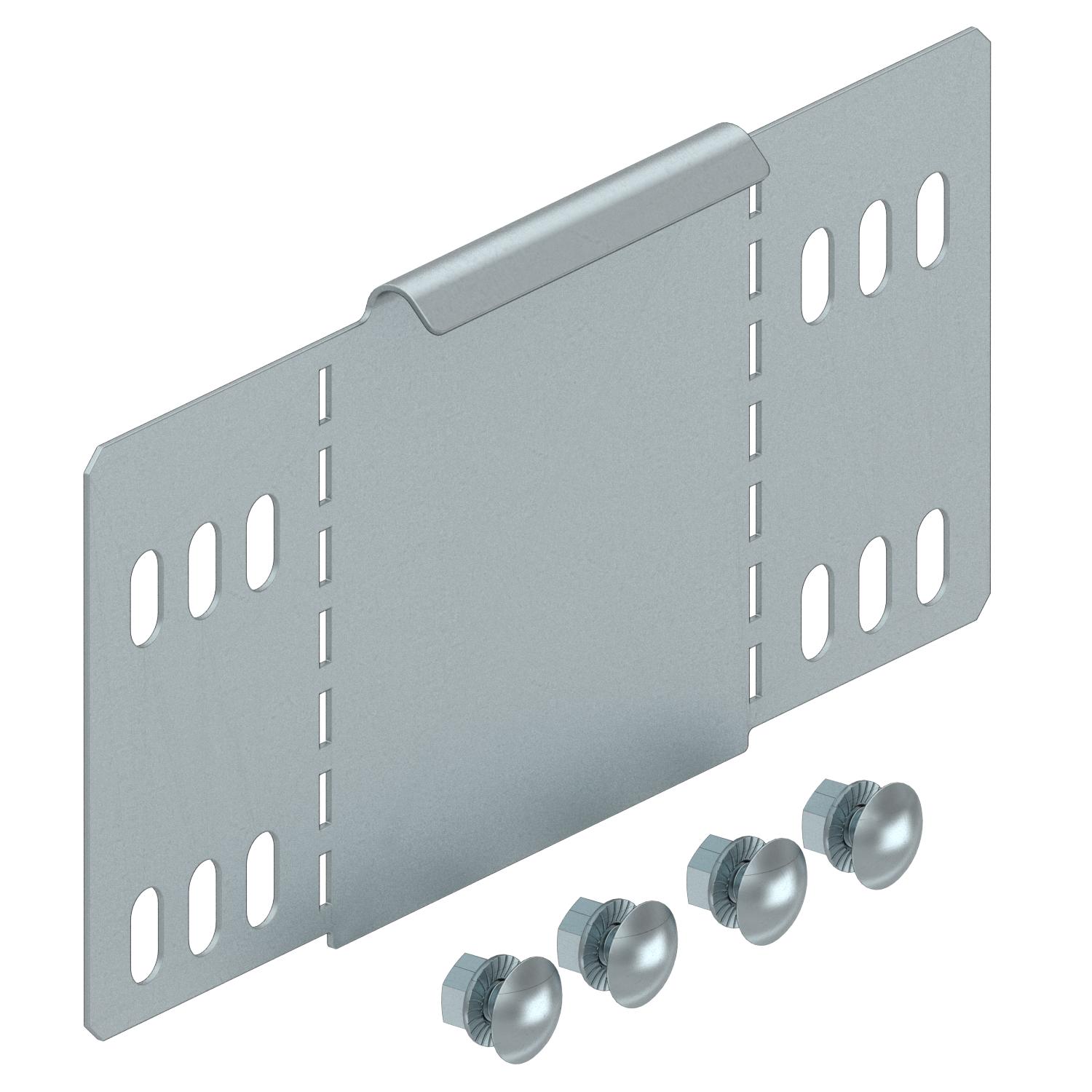

Reducer/stop-end for cable trays with side height 100 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc

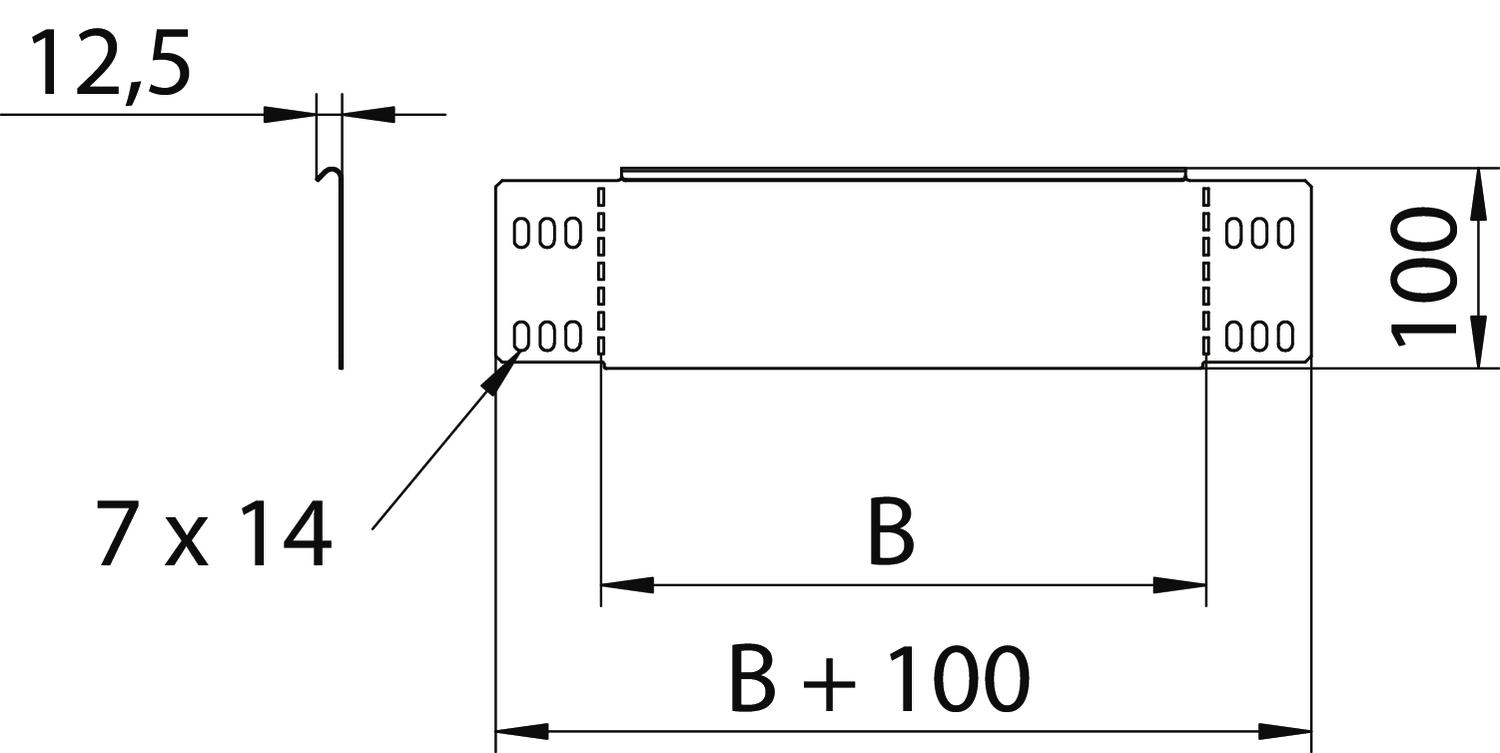

Dimension 100x100
Dimension B 100 mm
Height 100 mm
Height 4 in
Maintain electrical functions no
Material Steel
Plate thickness 1 mm
Surface Strip galvanized
Wide-span version no
Width 100 mm
Width 4 in
All types

All types

Types Width Height Item no.
RWEB 1010 FS 100 mm 100 mm 7111802
RWEB 1020 FS 200 mm 100 mm 7111804
RWEB 1030 FS 300 mm 100 mm 7111806
RWEB 1040 FS 400 mm 100 mm 7111808
RWEB 1050 FS 500 mm 100 mm 7111810
RWEB 1060 FS 600 mm 100 mm 7111812
Accessories

System accessories

Products Types Item no.
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
Downloads

Download

Download
Download

EU declaration of conformity RWEB 1010 FS / 7111802 , 0.11MB , pdf
Download
REACH Declaration of conformity RWEB 1010 FS / 7111802 , 0.12MB , pdf
Download
RoHS Declaration of conformity RWEB 1010 FS / 7111802 , 0.12MB , pdf
Download

Download

RWEB 1010 FS / 7111802
