0° socket with switch, South Africa/India, 16 A, encoded version, single 1 | Single 0° | Signal red; RAL 3001

0° socket with switch, South Africa/India, 16 A, encoded version, single

Item no. 6120736 | EAN 4012196050017

Item no. / Types	6120736 / STD-SA0GK SRO1.5

Number of units	1

Version for	Single 0°

Colour	Signal red; RAL 3001

Product description

Product description

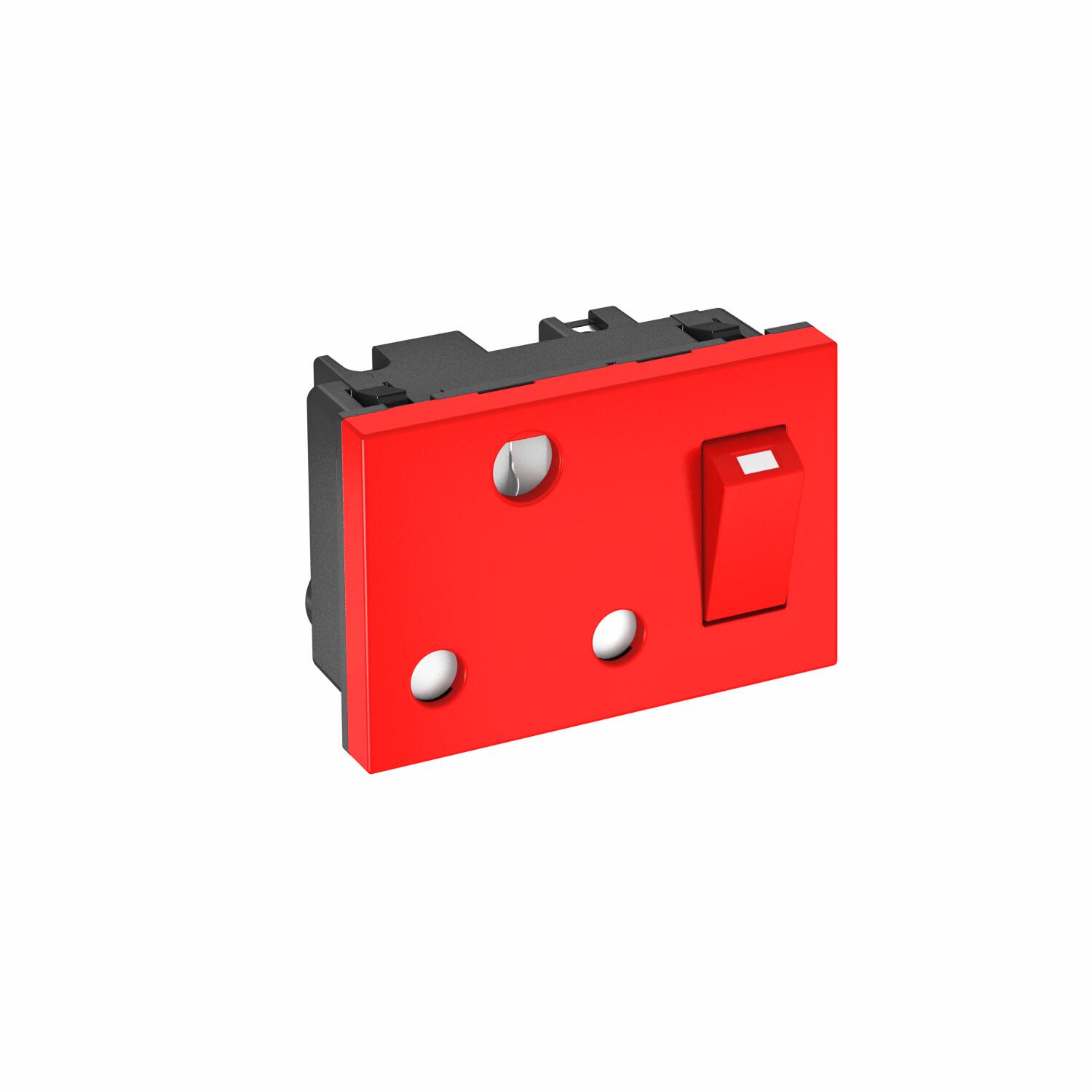

Socket, single 0°, with switch, South Africa/India, encoded version, conforming to BS 546, with increased touch protection, with screw terminals, 2-pin, 16 A, 250 V~.

Technical data

Technical data

Closable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0193 kg CO₂e / 1 Piece
Coding	yes
Colour	Signal red; RAL 3001
Cover	Central plate
Dimension	250V, 16A
Fastening type	Lock
For more difficult conditions (according to VDE)	no
increased touch protection	yes
Material	Polycarbonate
Mounting type	Device installation duct
Nominal current	16 A
Nominal voltage	250 V

Number of poles	2
Number of units	1
Operating temperature, max.	40 °C
Operating temperature, min.	-5 °C
Printed label/coding	Without printing
Protection rating	Other
Special power supply	Without special power supply
Surface version	Not applicable
Transparent	no
Version for	Single 0°
With functional lighting	no
With on/off switch	yes
With orientation lighting	no
