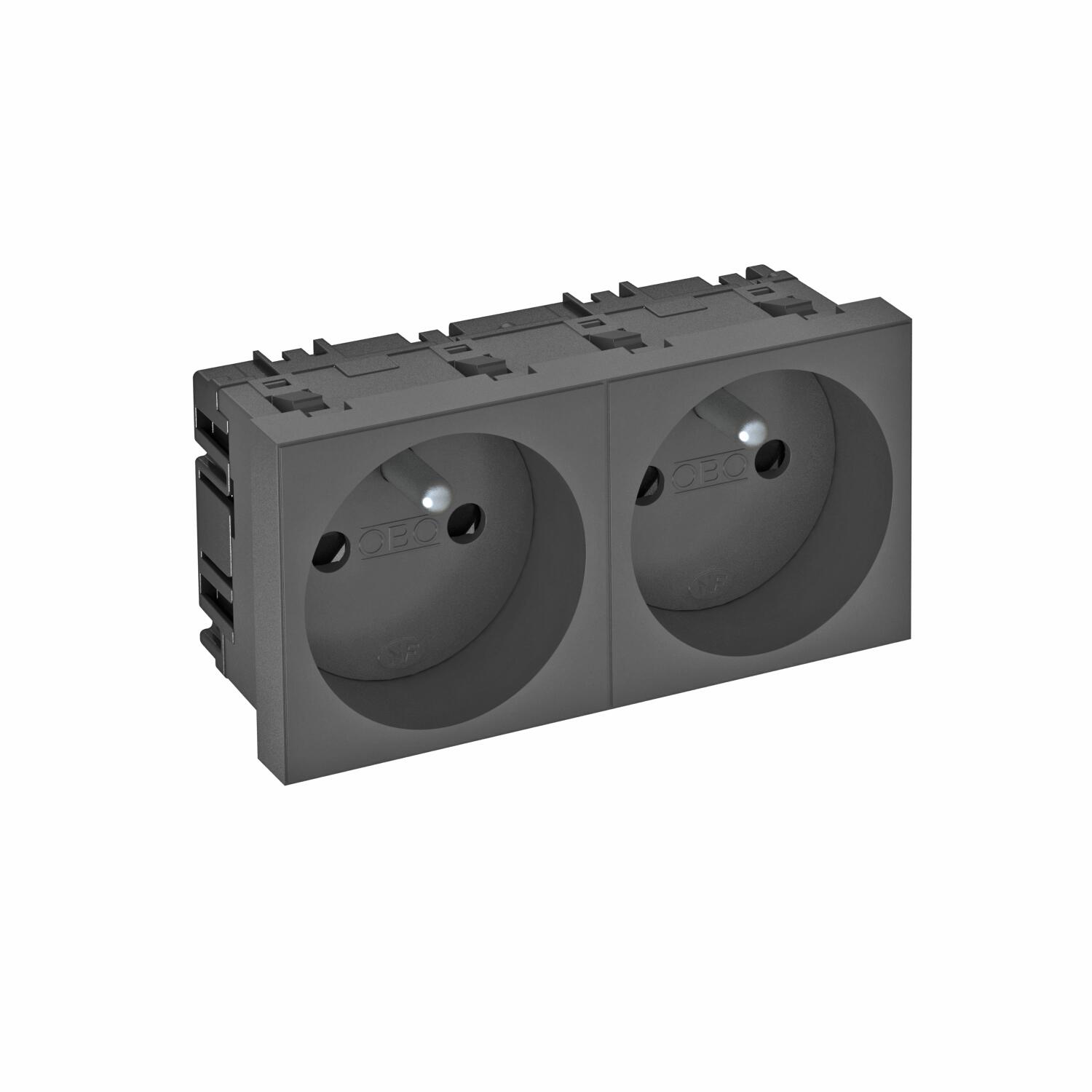

0° socket, with earthing pin, double 2 | Double 0° | Black-grey; RAL 7021

0° socket, with earthing pin, double

Item no. 6120180 | EAN 4012196048281

Item no. / Types

Number of units	2

Version for	Double 0°

Colour

Product description

Product description

Socket with earthing pin, double 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1.

For installation in Rapid 45 trunking, device installation trunking, service poles, underfloor systems and desk boxes.

Technical data

Technical data

Approvals	VDE
Closable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,3183 kg CO₂e / 1 Piece
Coding	no
Colour	Black-grey; RAL 7021
Connection type	Screwless terminal
Cover	Central plate

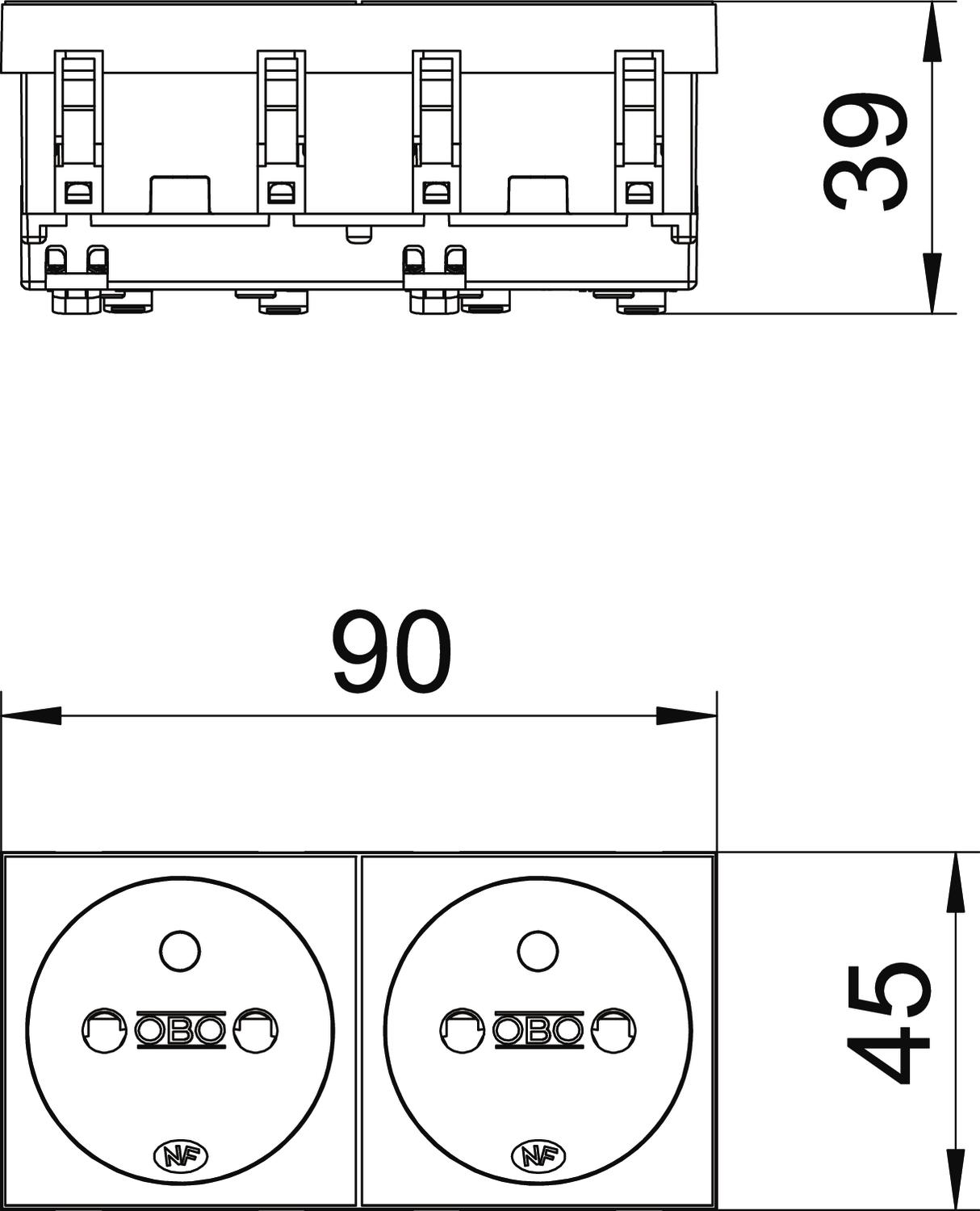

Depth	39 mm
Dimension	250V, 10/16A
Ejection mechanism	no
Error current protection	no
Fastening type	Lock
For more difficult conditions (according to VDE)	no
Halogen-free	yes
Height	45 mm
Hinged cover	no
increased touch protection	yes
Insulated installation	no
Labelling panel	no
Material	Polycarbonate
Mounting type	Device installation duct
Nominal current	16 A

Nominal voltage	250 V
Number of poles	2
Number of units	2
Operating temperature, max.	40 °C
Operating temperature, min.	-5 °C
Printed label/coding	Without printing
Protection rating	Other
Rotated central insert	no
Socket angle	0°
Socket version	NF
Special power supply	Without special power supply
Surface version	Matt
Surge protection	no
Transparent	no
Version for	Double 0°
Warning light	no
Width	90 mm
With fine-wire fuse	no
With functional lighting	no
With on/off switch	no
With orientation lighting	no

All types

All types

Types	Number of units	Version for	Colour	Item no.
STD-F0 RW2	2	Double 0°	Pure white; RAL 9010	6120172
STD-F0 ROR2	2	Double 0°	Pure orange; RAL 2004	6120174
STD-F0 MZGN2	2	Double 0°	Mint green; RAL 6029	6120176
STD-F0 SRO2	2	Double 0°	Signal red; RAL 3001	6120178
STD-F0 SWGR2	2	Double 0°	Black-grey; RAL 7021	6120180
STD-F0 AL2	2	Double 0°	Aluminium painted	6120182
