Wiring trunking, type LK4 N 80025 2000 | 25 | 80 | Base perforation | Stone grey; RAL 7030

Wiring trunking, type LK4 N 80025

Item no. 6178225 | EAN 4012196005802

Item no. / Types	6178225 / LK4 N 80025

Length	2000 mm

Width	25 mm

Height	80 mm

Fastening type	Base perforation

Colour	Stone grey; RAL 7030

Product description

Product description

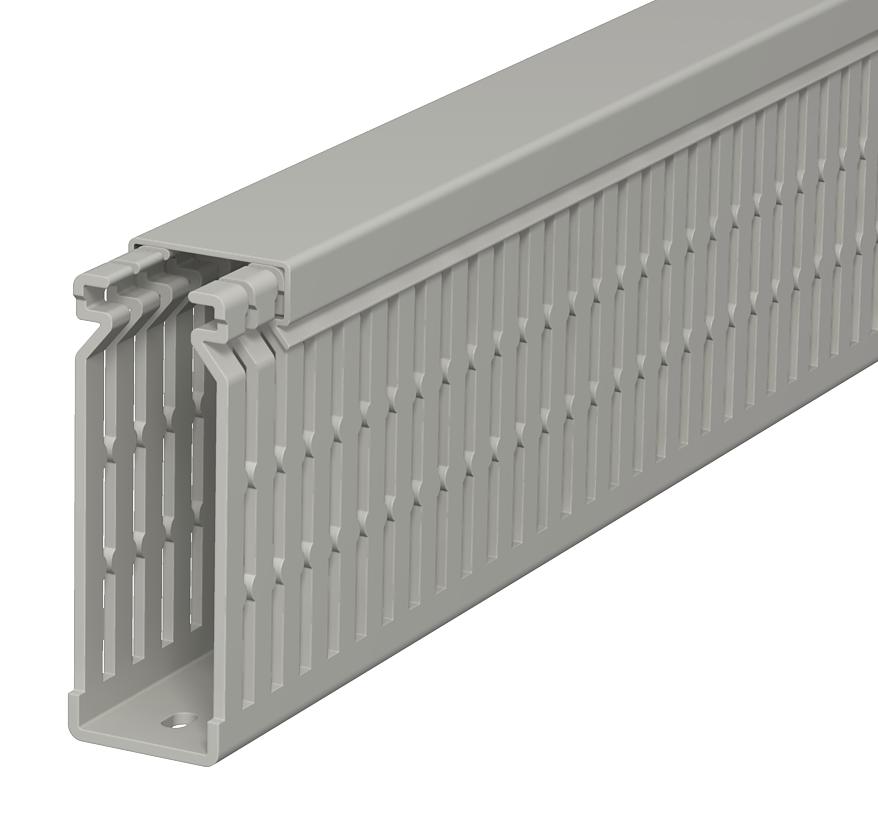

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,3308 kg CO₂e / 1 Meter
Colour	Stone grey; RAL 7030
Creepage current-resistant	yes
Dimension	80x25x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	no
Height	80 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	12,5 mm
Slot width	5 mm
Usable cross-section	18,67 cm²
Width	25 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.
LK4 N 80025	2000 mm	25 mm	80 mm	Base perforation	Stone grey; RAL 7030	6178225

Accessories

System accessories

Products	Types	Item no.
Wire retainer for type LK4 and LK4 N	LK4 H	6178092
Cover LK4 D 25	LK4 D 25	6178482

Mounting accessories

Products	Types	Item no.
Spreading rivet, KSN 1	KSN1	6178520
Body-bound rivet, KSN 22	KSN22	6178525
Plastic rivet tool KNW1	KNW1	6178527
Plastic rivet tool KNW2	KNW2	6178529
Release pliers	AKZ2	6178533
Spacer	AH1	6178540
Spacer	AH2	6178542
