Wire cable clamp A4

Item no. 5302182 | EAN 4012195901372

Item no. / Types

for cable diameter, min.

Product description

Product description

8 mm wire cable clamp

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,1657 kg CO2e / 1 Piece
Dimension	8mm
Dimension A	34 mm
Dimension B	9 mm
Dimension C	6 mm

for cable diameter, min.	8 mm
Material	Stainless steel
Surface	Bright, treated
Version for	Not insulated

All types

All types

Types	for cable diameter, min.	Item no.
947 3 A4	3 mm	5302170
947 5 A4	5 mm	5302174
947 6 A4	6 mm	5302178
947 8 A4	8 mm	5302182
947 10 A4	10 mm	5302188

Downloads

Data sheet 947 8 A4 / 5302182 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity EU declaration of conformity ,

Download

EU declaration of conformity EU declaration of conformity ,

Download

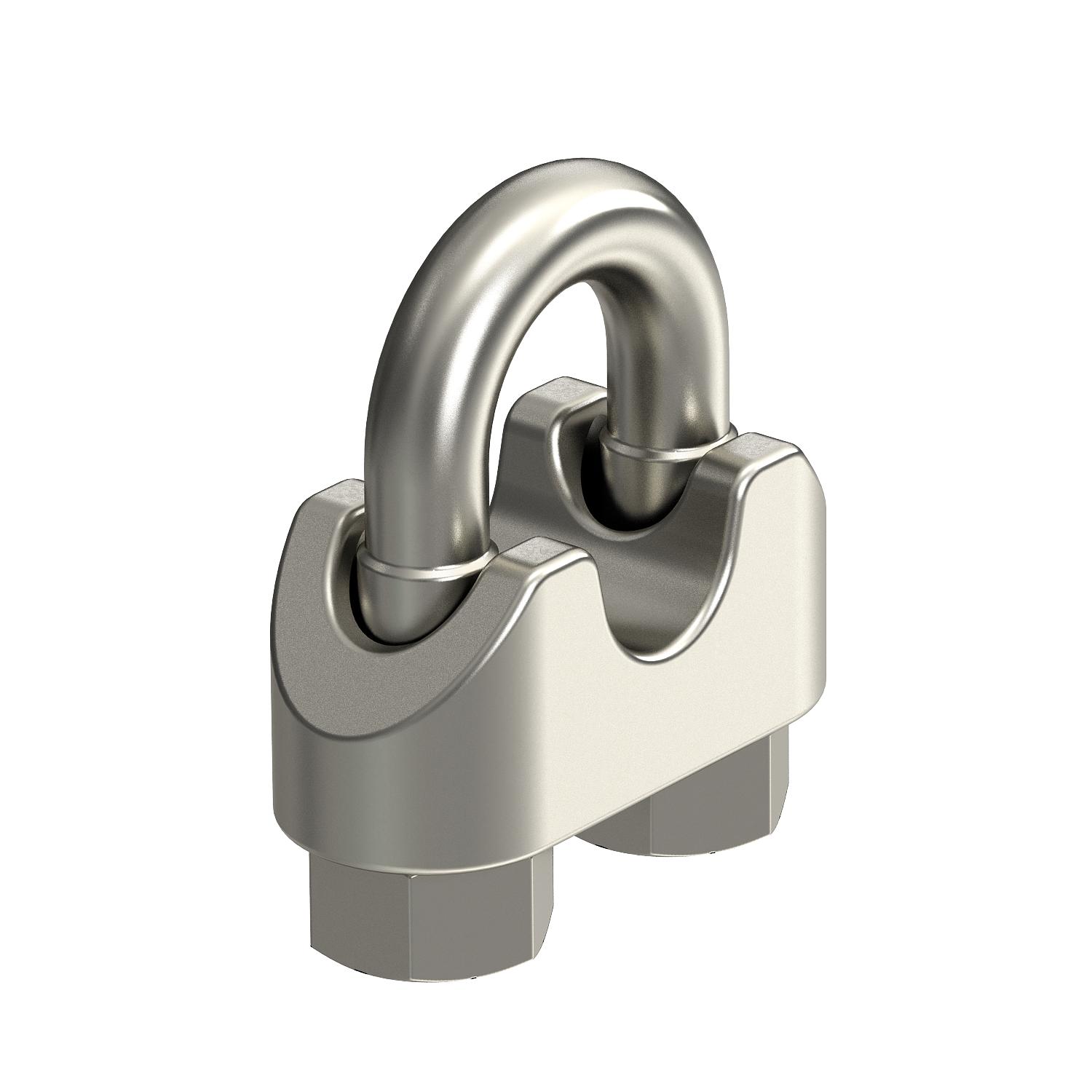

Product graphic 947 8 A4 / 5302182, 82.03 kB, jpg

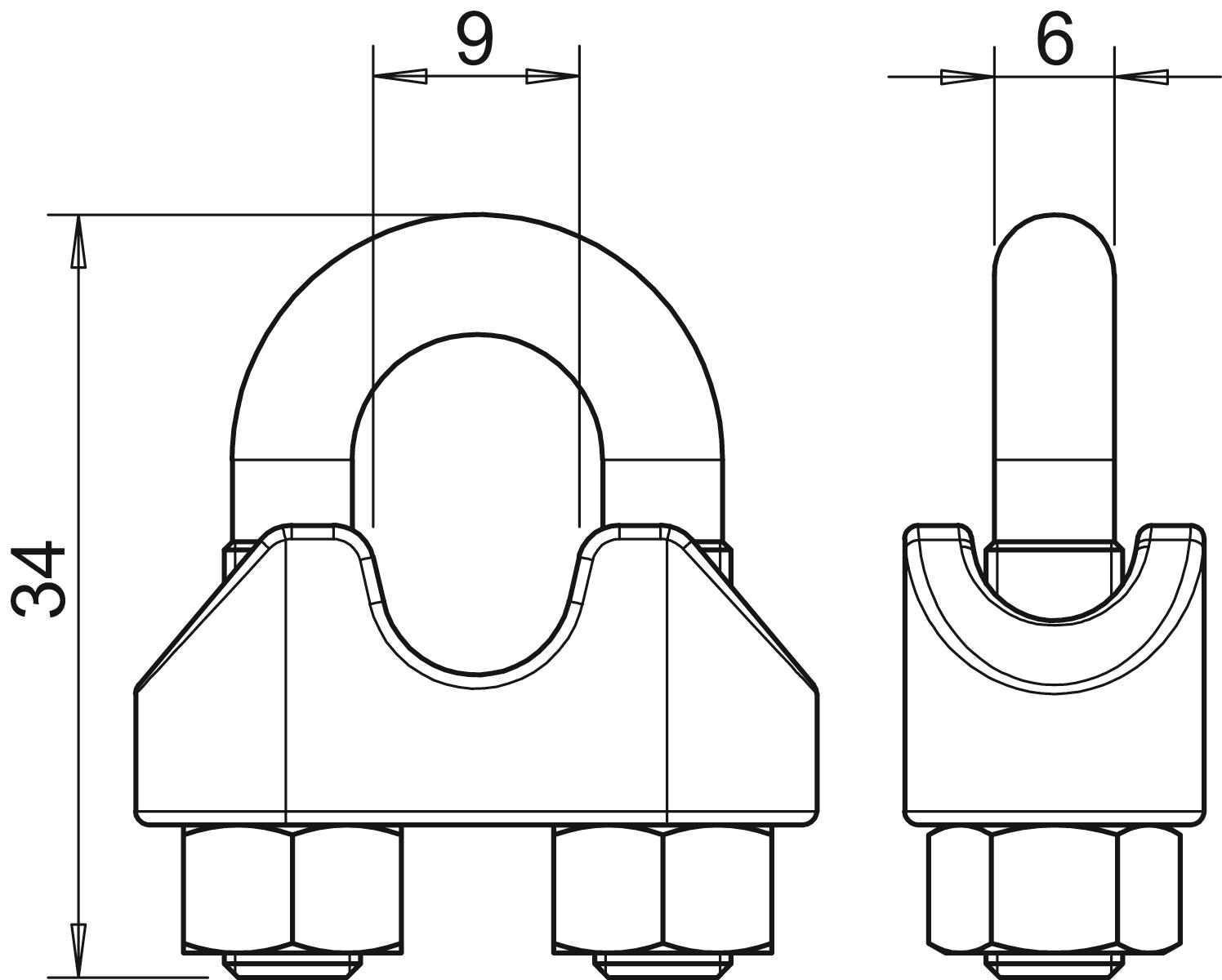

Scale drawing 947 8 A4 / 5302182, 87.82 kB, jpg
