Wide span cable tray WKSG 160 FT

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

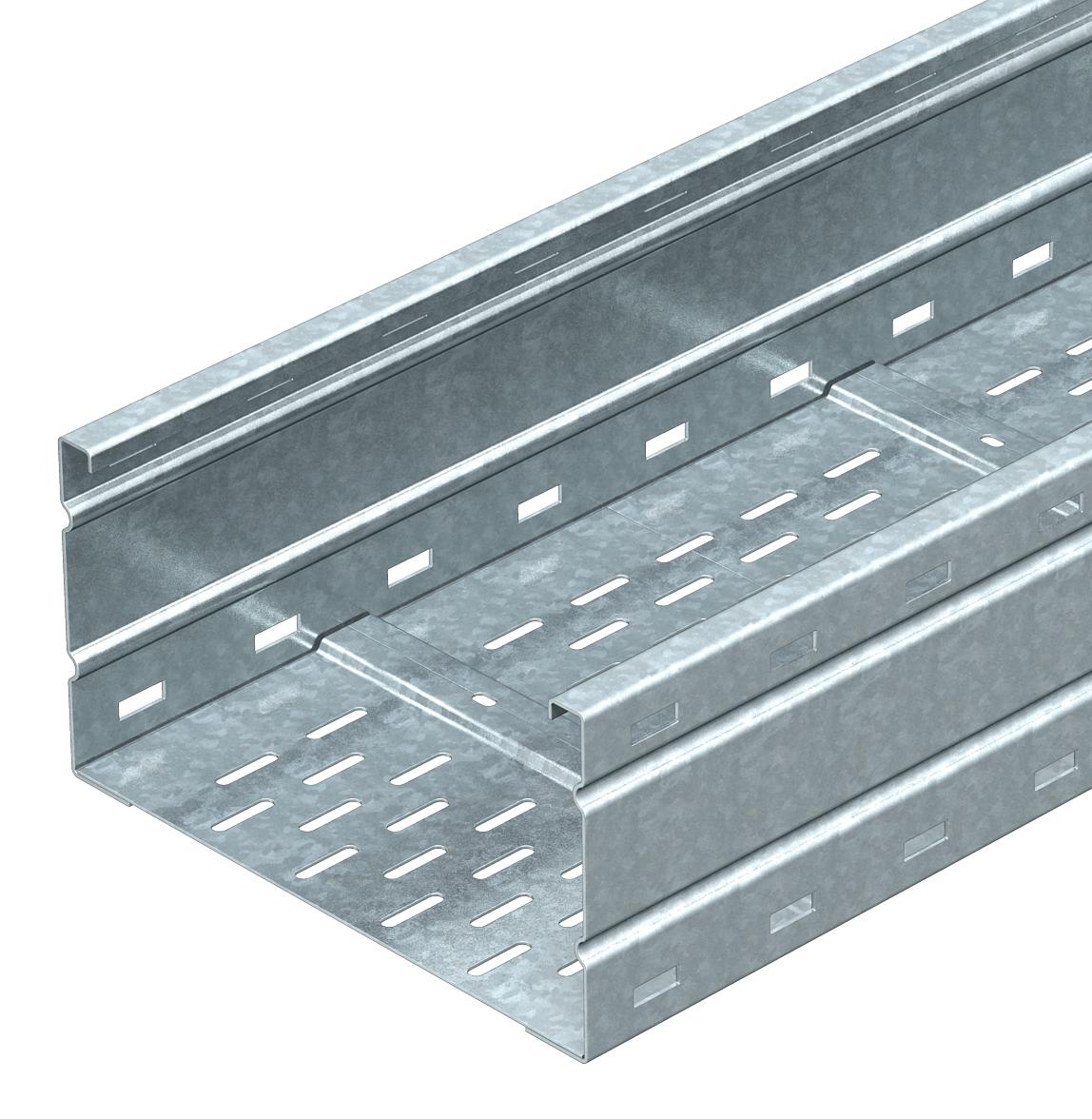

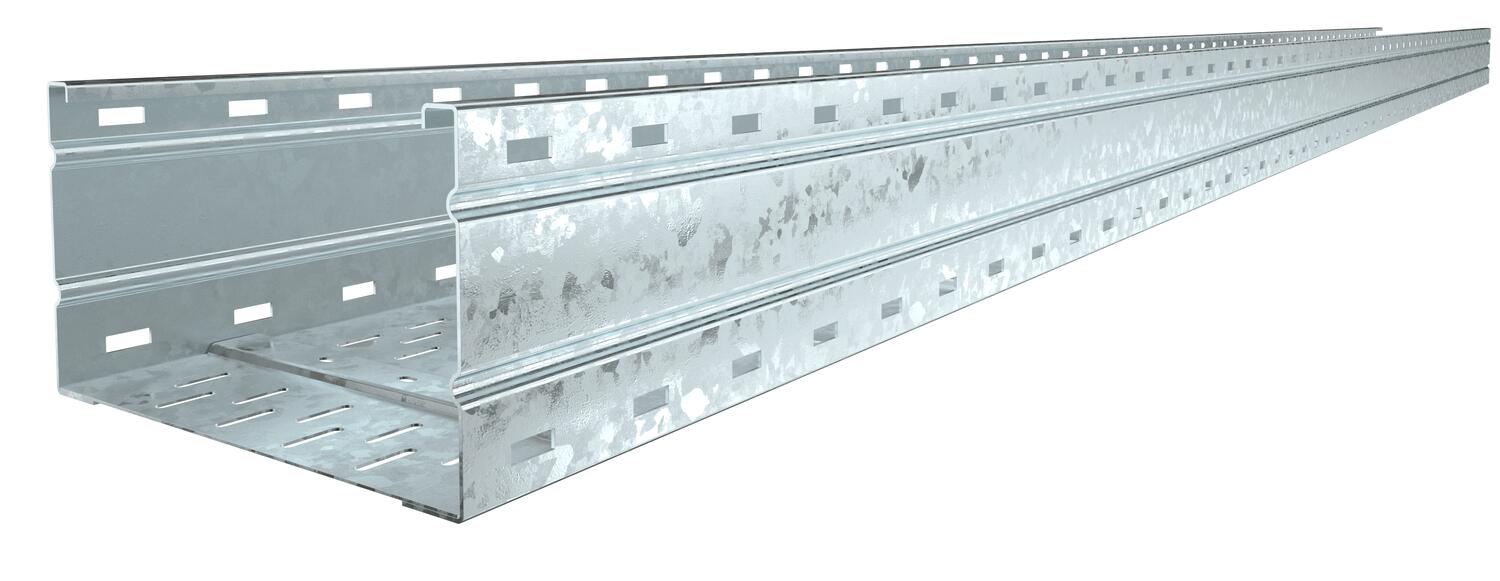

Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	19,7648 kg CO₂e / 1 Meter
Colour	zinc
Connector version	Without connectors

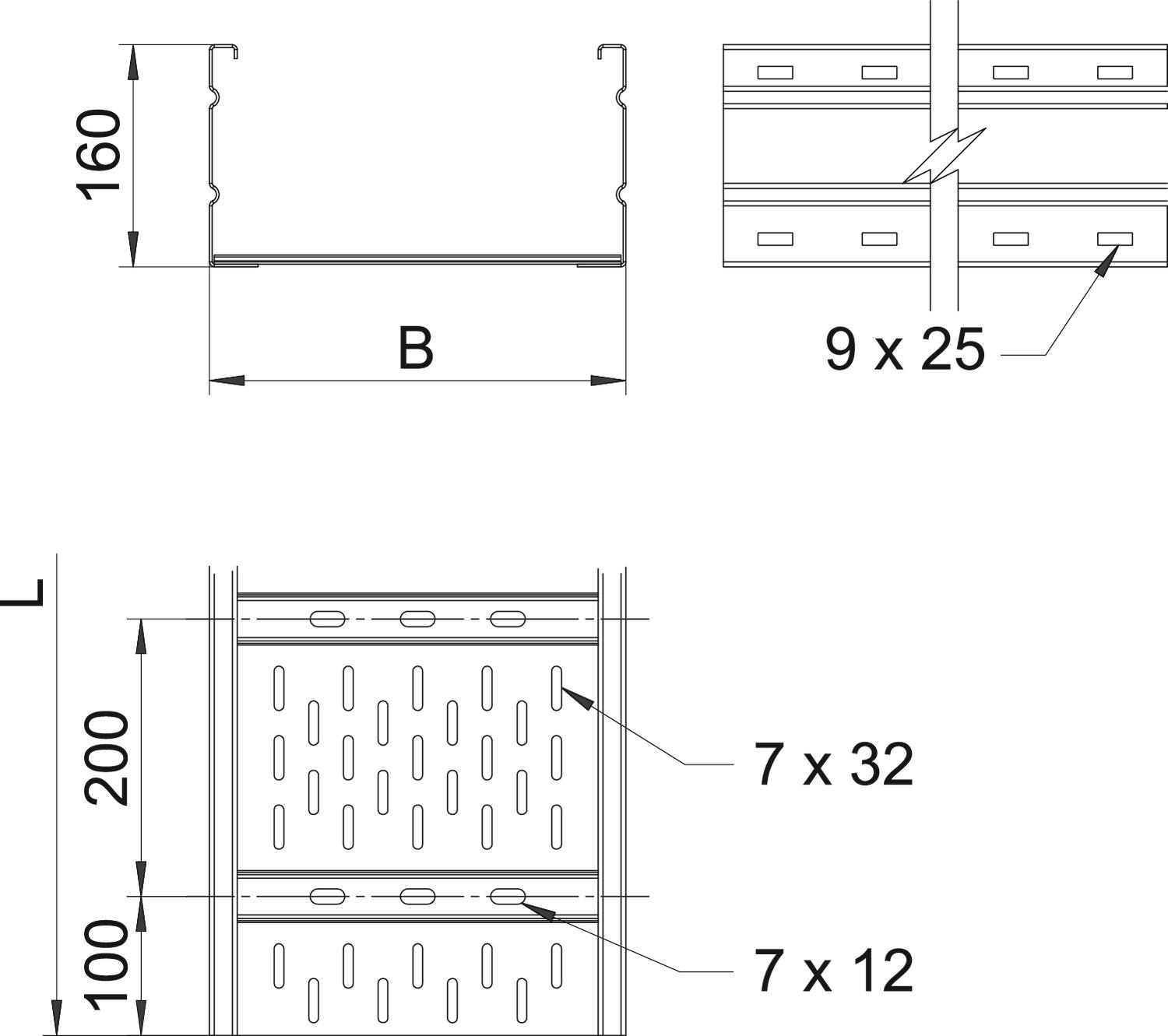

Dimension	160x200x6000
Dimension	200x6000
Dimension B	200 mm
Dimension L	6000 mm
Height	160 mm
Length	6000 mm
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
Plate thickness	2 mm
Rustproof steel, pickled	no

Side perforation	yes

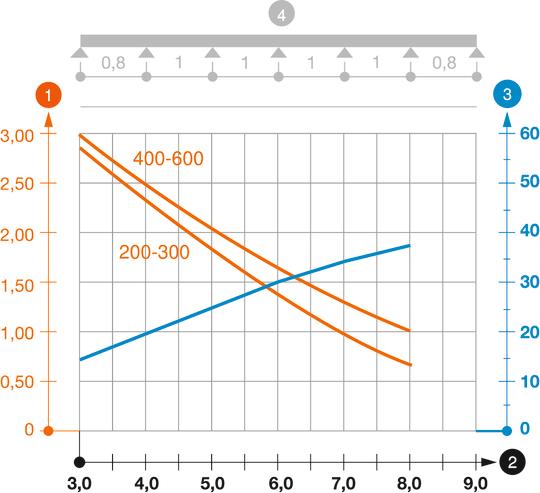

Support spacing 3.0 m	2,9 kN/m
Support spacing 3.5 m	2,59 kN/m
Support spacing 4.0 m	2,3 kN/m
Support spacing 4.5 m	2,04 kN/m
Support spacing 5.0 m	1,8 kN/m
Support spacing 6.0 m	1,4 kN/m
Support spacing 7.0 m	1 kN/m
Support spacing 8.0 m	0,7 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	30200 mm²
Usable cross-section	302 cm²
Usable length	6000 mm
Wide-span version	yes
Width	200 mm

Technical data

All types

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.
WKSG 162 FT	no	6000 mm	200 mm	2 mm	6098550
WKSG 163 FT	no	6000 mm	300 mm	2 mm	6098554
WKSG 164 FT	no	6000 mm	400 mm	2 mm	6098558
WKSG 165 FT	no	6000 mm	500 mm	2 mm	6098562
WKSG 166 FT	no	6000 mm	600 mm	2 mm	6098566
