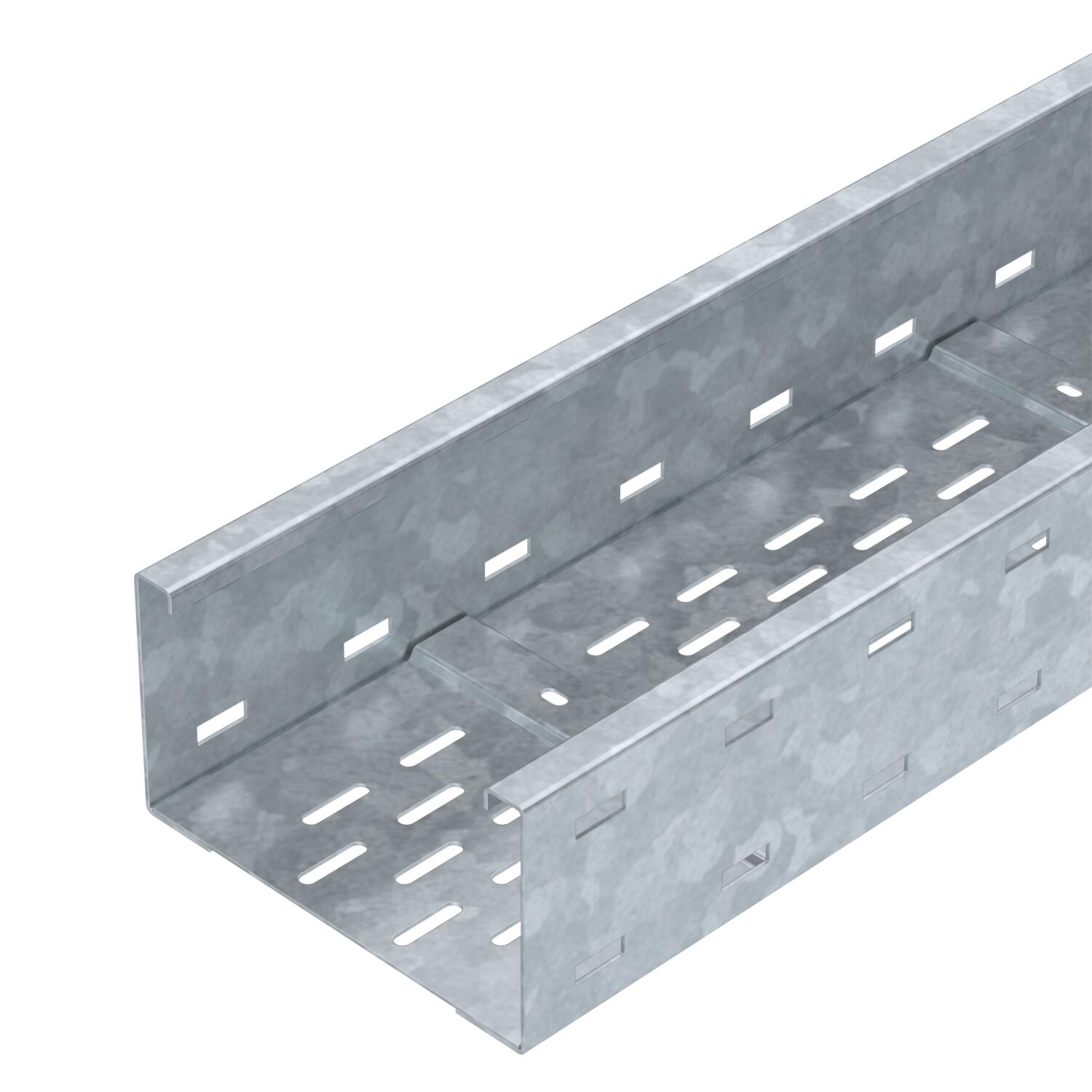

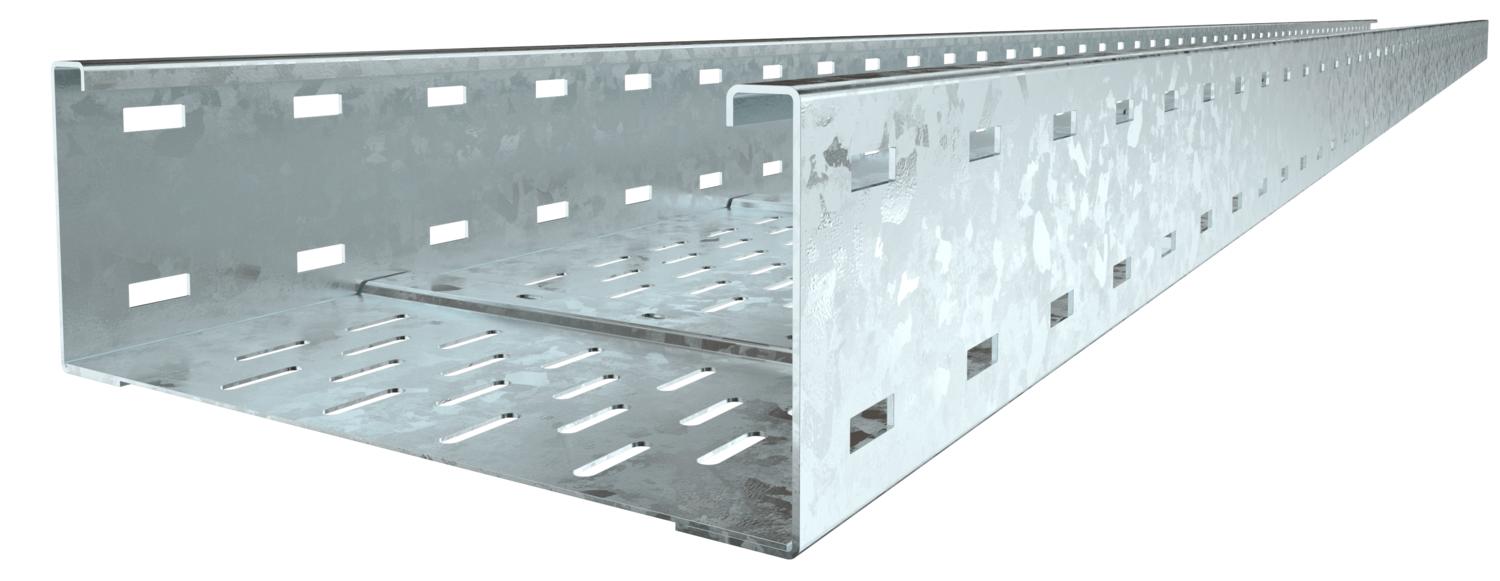

Wide span cable tray WKSG 110 FT
Item no. 6098141 | EAN 4012196351732
- Product description
-
Product descriptionWide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

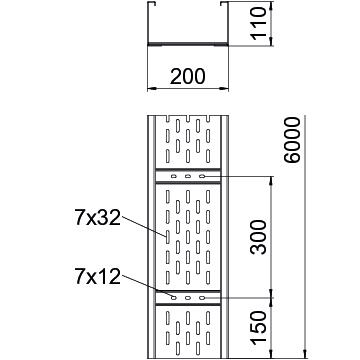

CO2 Footprint (GWP) Cradle-to-Gate 16,3036 kg CO₂e / 1 Meter Colour zinc Connector version Without connectors Dimension 110x200x6000 Dimension 110 x 200 Dimension B 200 mm Dimension L 6000 mm Height 110 mm Length 6000 mm Magnetic shield insulation with cover 50 dB Magnetic shield insulation without cover 20 dB Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 2 mm Rustproof steel, pickled no Side perforation yes Support spacing 3.0 m 2,5 kN/m Support spacing 3.5 m 2,01 kN/m Support spacing 4.0 m 1,6 kN/m Support spacing 4.5 m 1,32 kN/m Support spacing 5.0 m 1,1 kN/m Support spacing 6.0 m 0,75 kN/m Support spacing 7.0 m 0,45 kN/m Support spacing 8.0 m 0,2 kN/m Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 202 cm² Usable cross-section 20200 mm² Usable length 6000 mm Wide-span version yes Width 200 mm Technical data

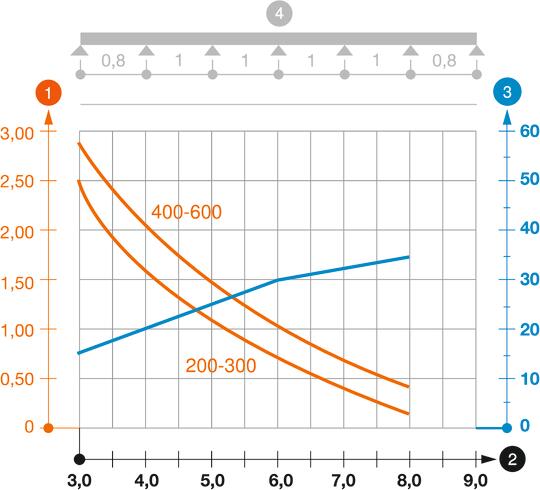

Load diagram, wide span cable tray, type WKSG 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no.

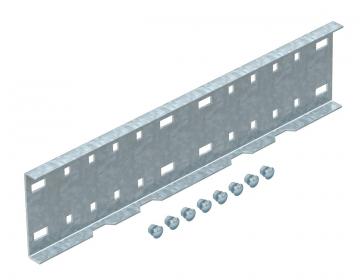

Straight connector FT
WRVL 110 FT 6091180

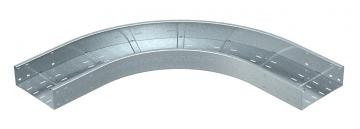

90° bend 110 FT
WRB 90 120 FT 6098344

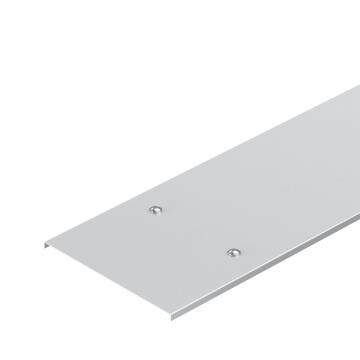

DD cover with turn buckle
WDRL 1116 20 DD 6227600
Barrier strip 85 DD
TSG 85 DD 6062331
Joint plate DD
SSLB 200 DD 7070314 - Downloads
-
