Wide span cable ladder WKLG 160 A4 6000 | 200 | 2 | no

Wide span cable ladder WKLG 160 A4

Item no. 6227170 | EAN 4012195909965

Item no. / Types

Length	6000 mm

Width

Rail thickness	2 mm

Maintain electrical functions	no

Product description

Product description

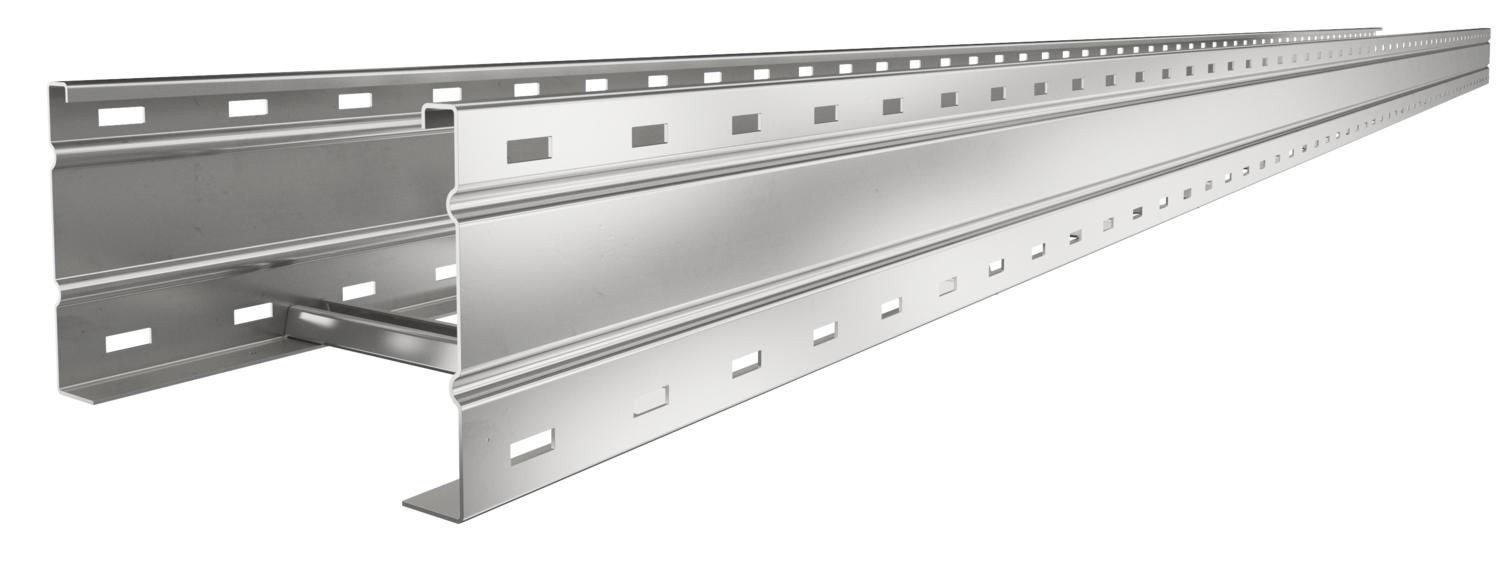

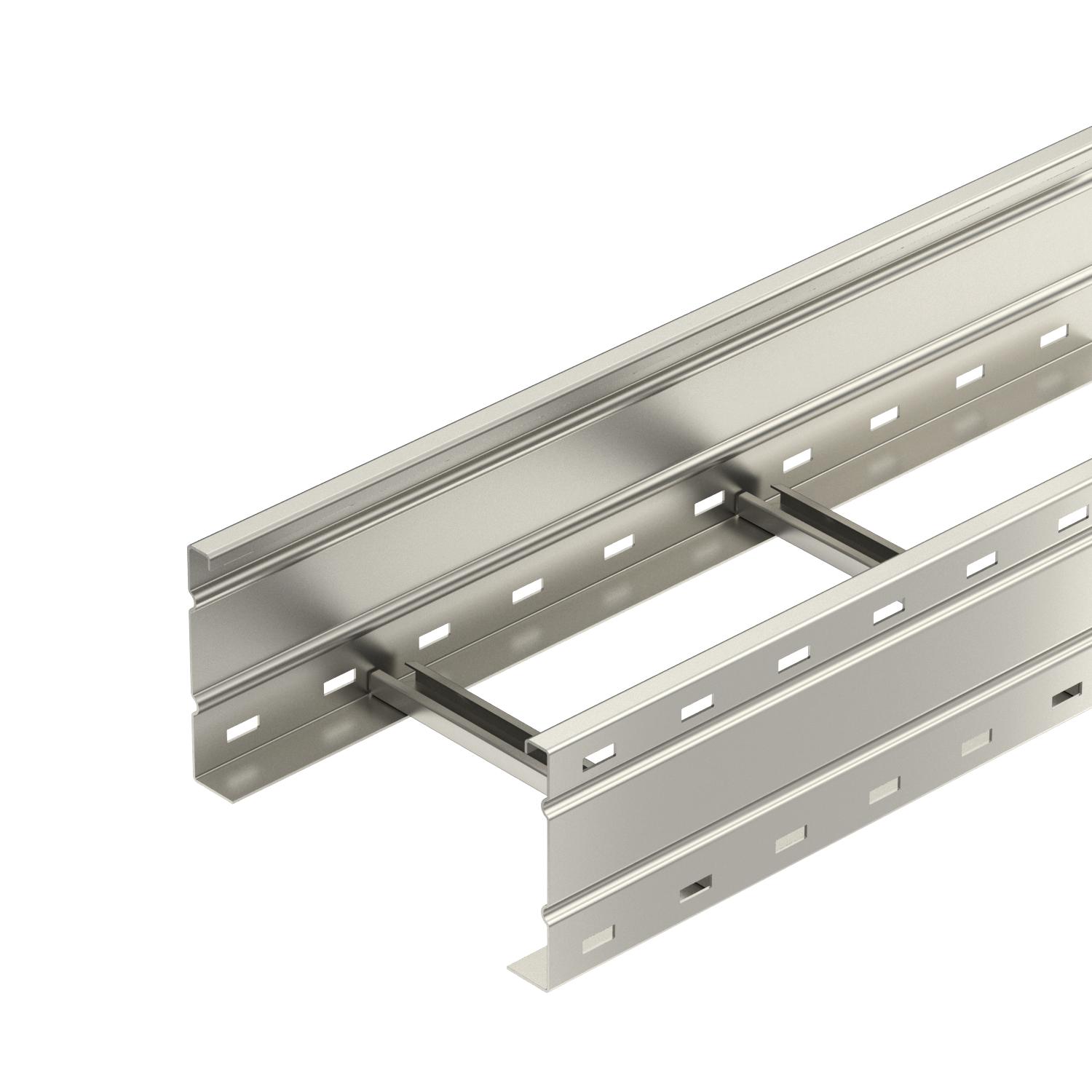

Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	37,7526 kg CO₂e / 1 Meter
Colour	stainless steel

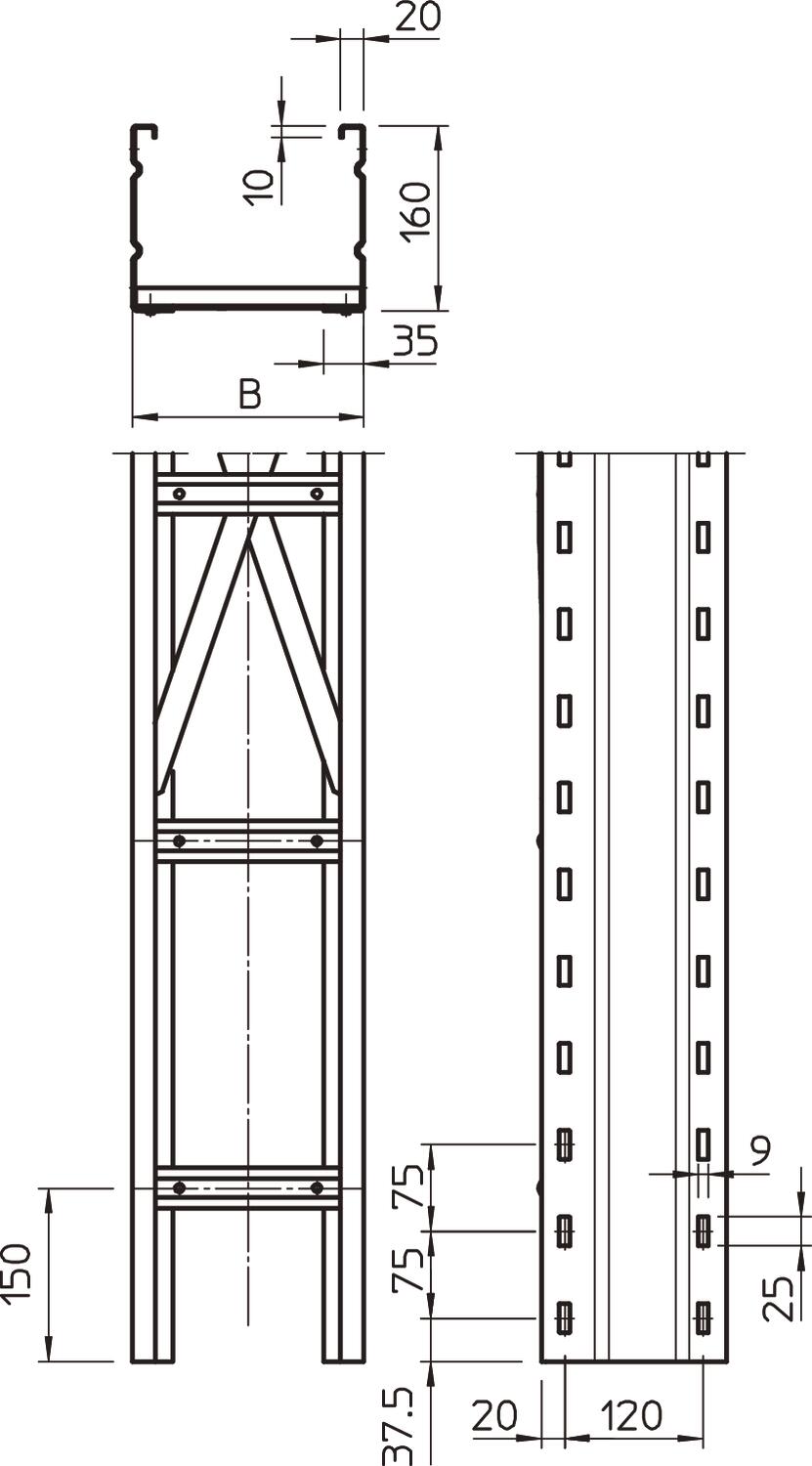

Dimension	160x200x6000
Dimension B	200 mm
Dimension L	6000 mm
Height	160 mm
Length	6000 mm
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	2 mm
Rung slot dimension	16,50
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Profile (open)

Support spacing 3.0 m	2,9 kN/m
Support spacing 3.5 m	2,59 kN/m
Support spacing 4.0 m	2,3 kN/m
Support spacing 4.5 m	2,04 kN/m
Support spacing 5.0 m	1,8 kN/m
Support spacing 6.0 m	1,4 kN/m
Support spacing 7.0 m	1 kN/m
Support spacing 8.0 m	0,7 kN/m
Surface	Bright, treated
Usable cross-section	282 cm²
Usable cross-section	28200 mm²
Version of the rungs	Profile unperforated
Wide-span version	yes
Width	200 mm

Technical data

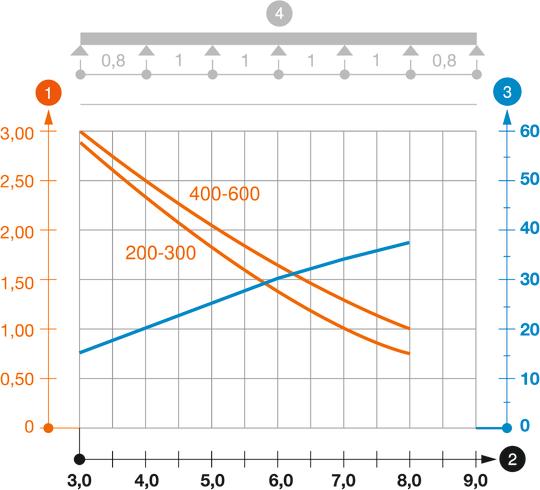

Load diagram, wide span cable ladder, type WKLG 160

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.
WKLG 1620 A4	6000 mm	200 mm	2 mm	no	6227170
WKLG 1630 A4	6000 mm	300 mm	2 mm	no	6227172
WKLG 1640 A4	6000 mm	400 mm	2 mm	no	6227174
WKLG 1650 A4	6000 mm	500 mm	2 mm	no	6227176
WKLG 1660 A4	6000 mm	600 mm	2 mm	no	6227178
