Welding angle
Item no. 6015350 | EAN 4012195696582
- Product description
-

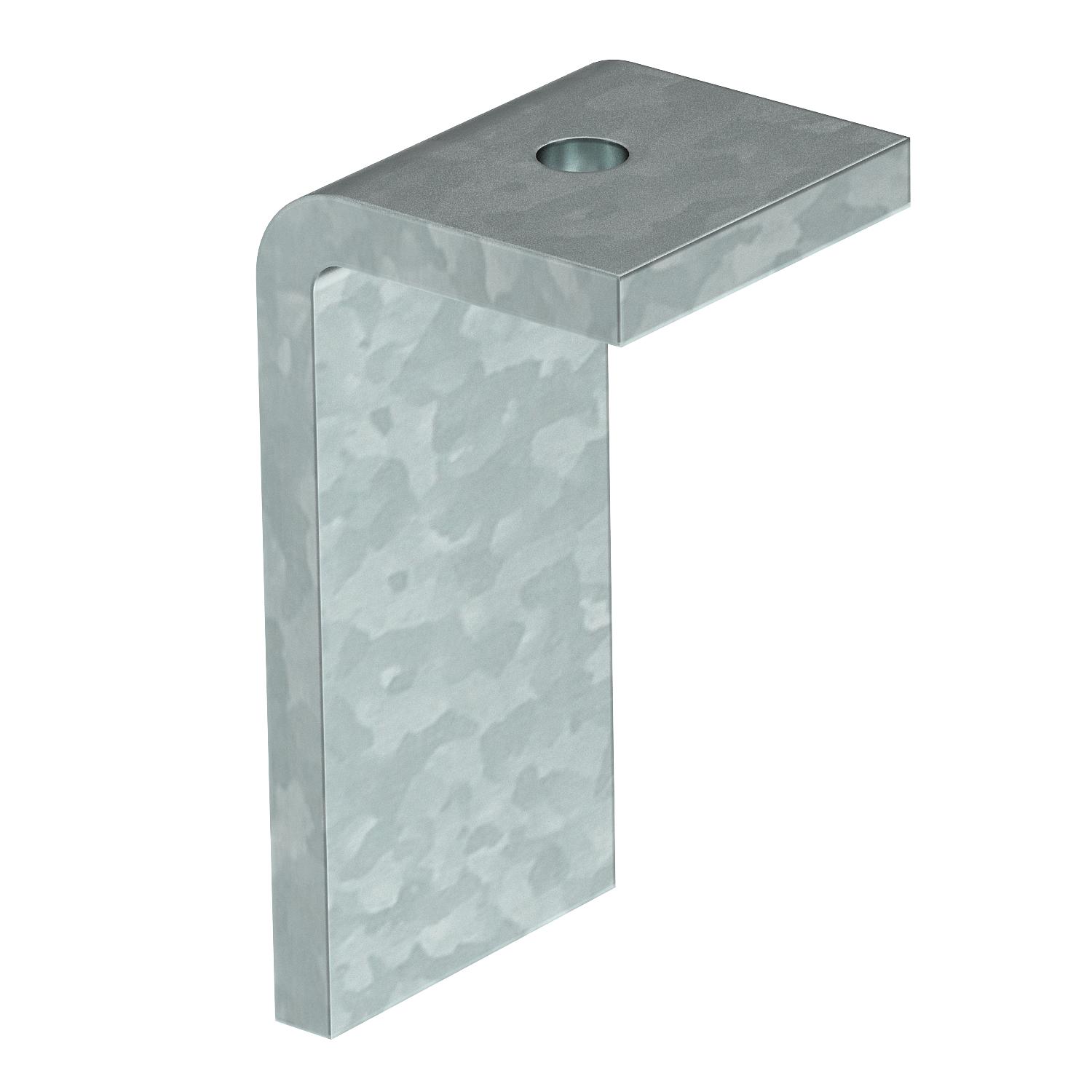

Product descriptionWelding angle for mounting shipbuilding cable ladders and marine trays, for welding to steel structures.
-
- Technical data
-
Technical data

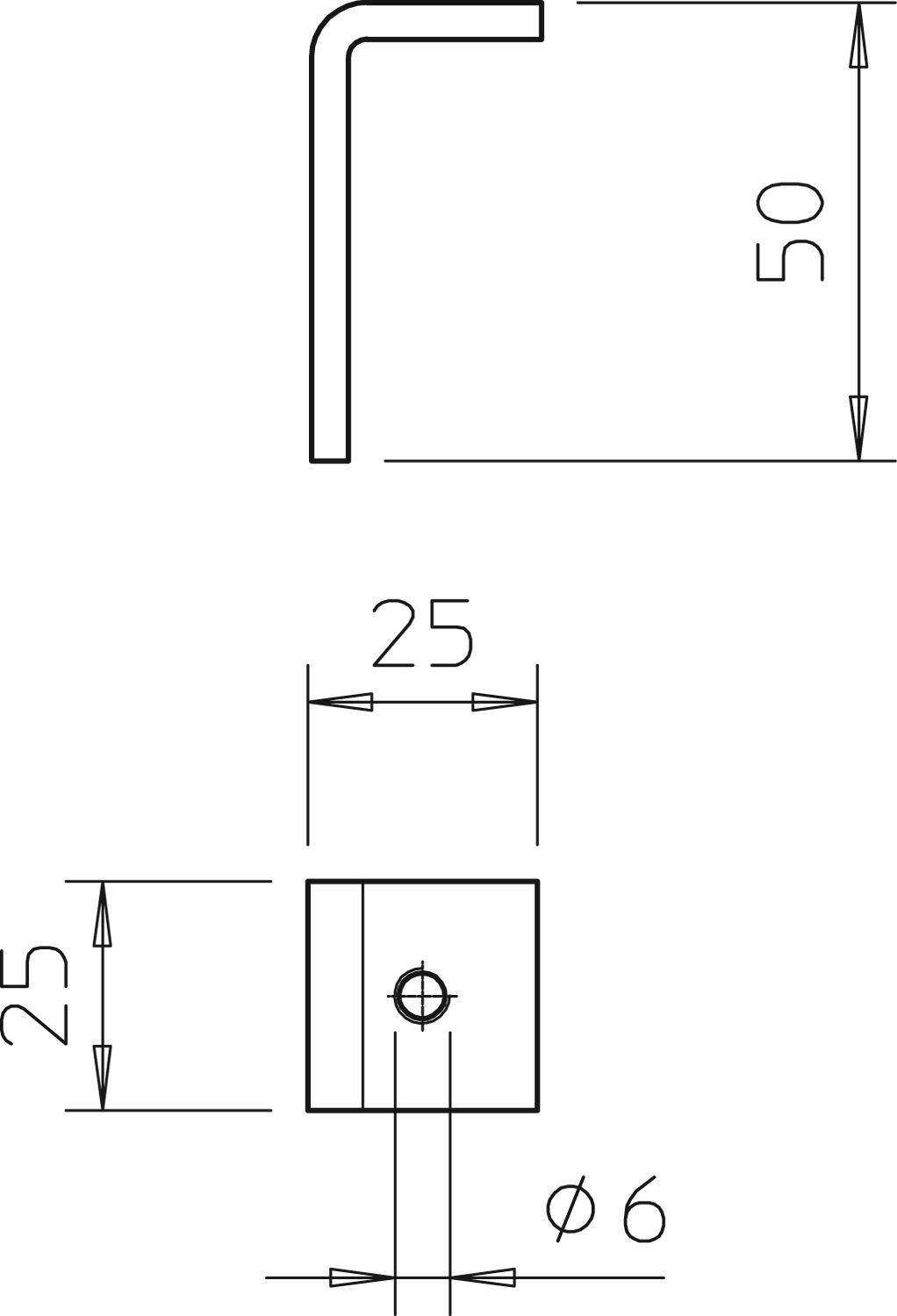

CO2 Footprint (GWP) Cradle-to-Gate 0,1356 kg CO2e / 1 Piece Colour zinc Dimension 25x50 Dimension 50x25x4 Height 25 mm Length 50 mm Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Width 25 mm - All types
- Downloads
-
Data sheet ASW FT / 6015350 , 0.15MB , pdfEU declaration of conformity ASW FT / 6015350 , 0.11MB , pdfREACH Declaration of conformity ASW FT / 6015350 , 0.12MB , pdfRoHS Declaration of conformity ASW FT / 6015350 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
