Washer A5
Item no. 3402316 | EAN 4012195909484
- Product description
-
Product descriptionWasher according to DIN 125, shape A, for universal use.
-
- Technical data
-
Technical data

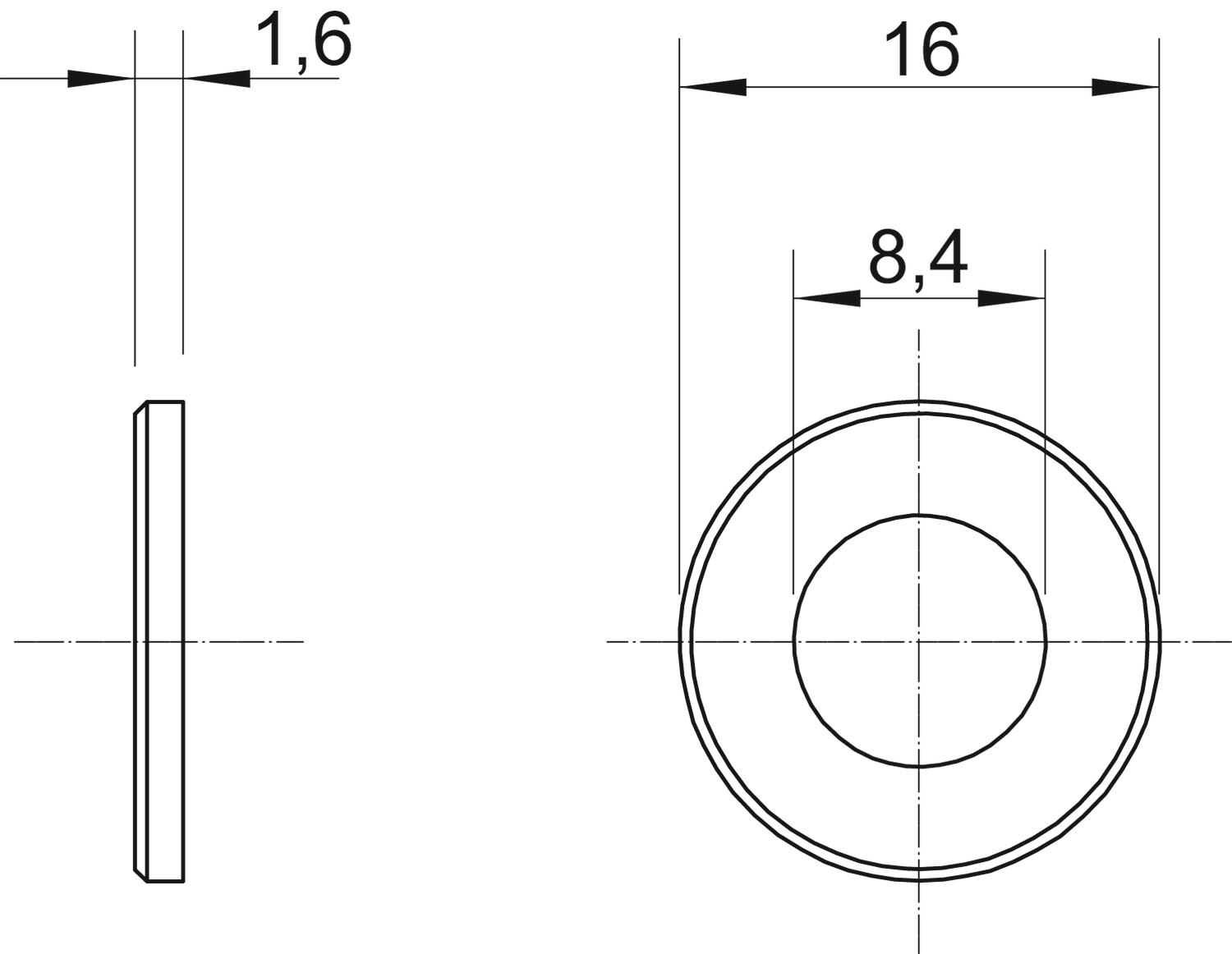

CO2 Footprint (GWP) Cradle-to-Gate 0,0088 kg CO₂e / 1 Piece Diameter 16 mm Dimension M8 Dimension d 8,4 mm Dimension d min. 16 mm Dimension h 1,6 mm External diameter 16 mm Hole diameter 8,4 mm Hole shape Round Inner diameter 8,4 mm Material Stainless steel Material thickness 1,6 mm Thread M8 With toothing no - All types
- Downloads
-
Data sheet WS M8 D16 A5 / 3402316 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity WS M8 D16 A5 / 3402316 , 0.06MB , pdfREACH Declaration of conformity WS M8 D16 A5 / 3402316 , 0.12MB , pdfRoHS Declaration of conformity WS M8 D16 A5 / 3402316 , 0.13MB , pdf
