Washer A2
Item no. 3402312 | EAN 4012195300557
- Product description
-
Product descriptionWasher according to DIN 125, shape A, for universal use.
-
- Technical data
-
Technical data

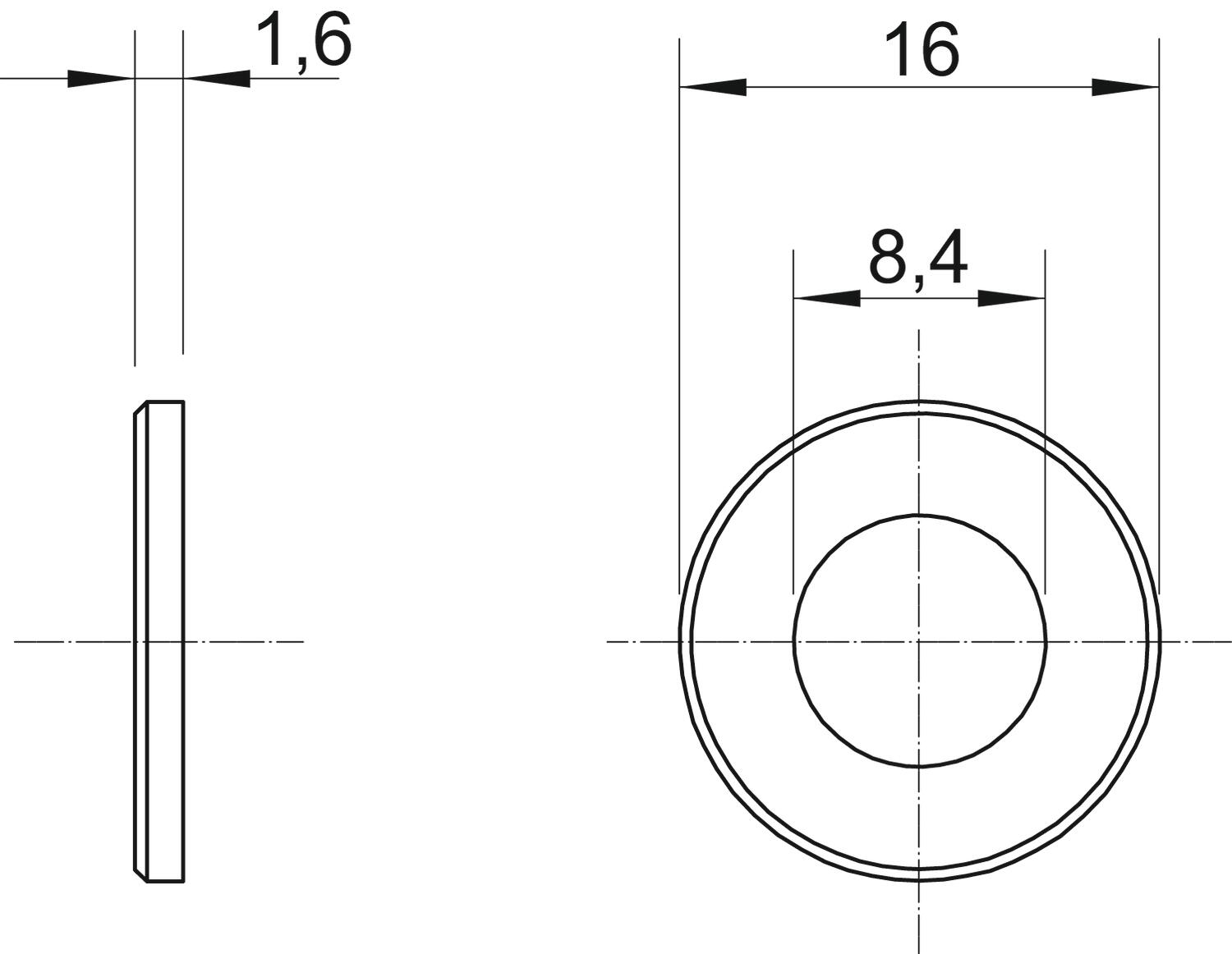

CO2 Footprint (GWP) Cradle-to-Gate 0,0076 kg CO₂e / 1 Piece Diameter 16 mm Dimension M8 Dimension d 8,4 mm Dimension d min. 16 mm Dimension h 1,6 mm External diameter 16 mm Hole diameter 8,4 mm Hole shape Round Inner diameter 8,4 mm Material Stainless steel Material thickness 1,6 mm Plate thickness 0,06 in Surface Bright, treated Thread M8 With toothing no - All types
- Downloads
-
Data sheet WS M8 D16 A2 / 3402312 , 0.14MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity WS M8 D16 A2 / 3402312 , 0.06MB , pdfREACH Declaration of conformity WS M8 D16 A2 / 3402312 , 0.12MB , pdfRoHS Declaration of conformity WS M8 D16 A2 / 3402312 , 0.13MB , pdf
