Washer
Item no. 3402126 | EAN 4012195300199
- Product description
-
Product descriptionWasher according to DIN 125, shape A, for universal use.
-
- Technical data
-
Technical data

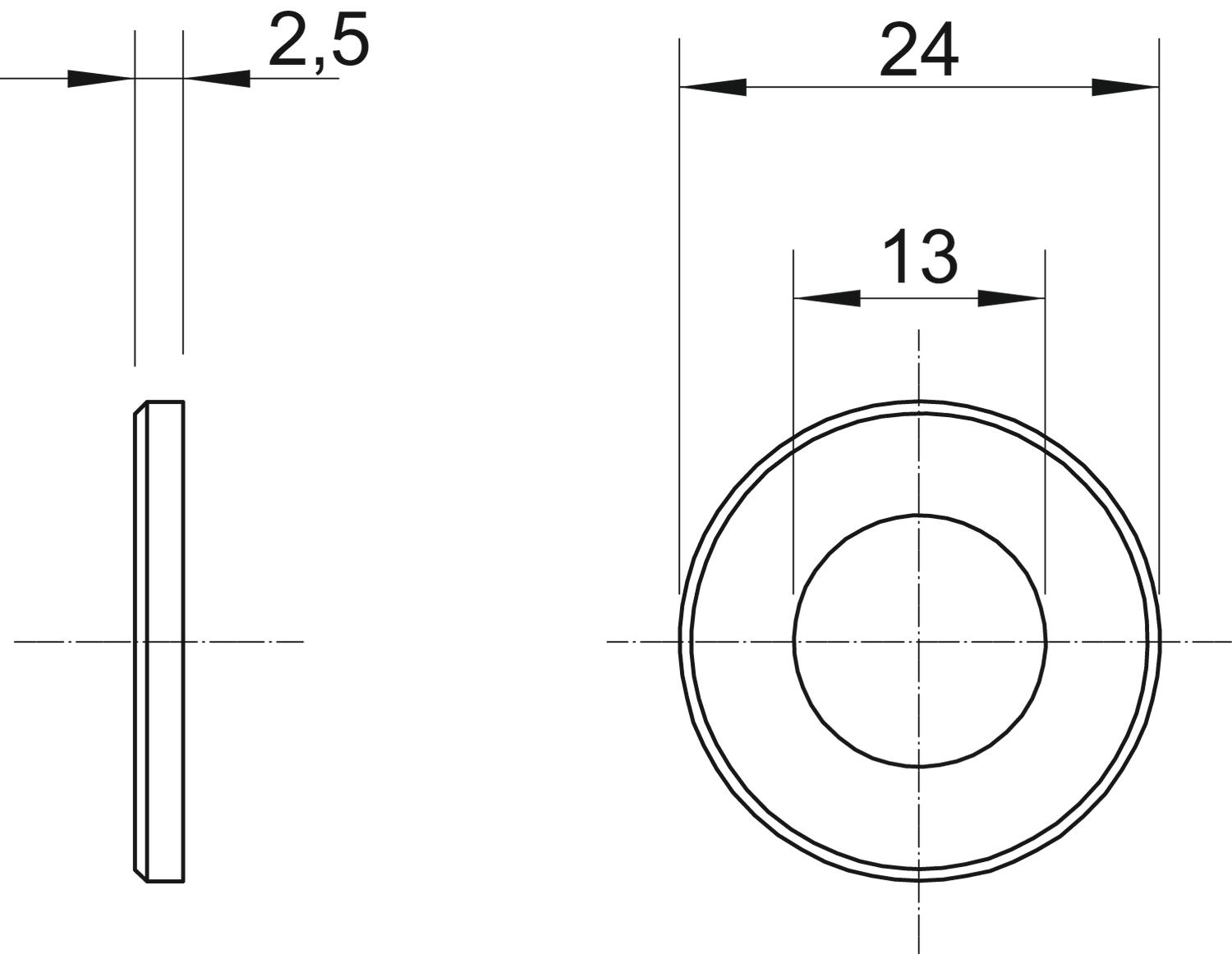

CO2 Footprint (GWP) Cradle-to-Gate 0,0156 kg CO₂e / 1 Piece Dimension M12 Dimension d 13 mm Dimension d min. 24 mm Dimension h 2,5 mm External diameter 24 mm Faceted no Hardened no Hole shape Round Inner diameter 13 mm Material Steel Material thickness 2,5 mm Plate thickness 0,1 in Surface Electrogalvanized Thread M12 With toothing no - All types
- Downloads
-
Data sheet WS M12 D24 G / 3402126 , 0.14MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity WS M12 D24 G / 3402126 , 0.06MB , pdfREACH Declaration of conformity WS M12 D24 G / 3402126 , 0.12MB , pdfRoHS Declaration of conformity WS M12 D24 G / 3402126 , 0.13MB , pdf
