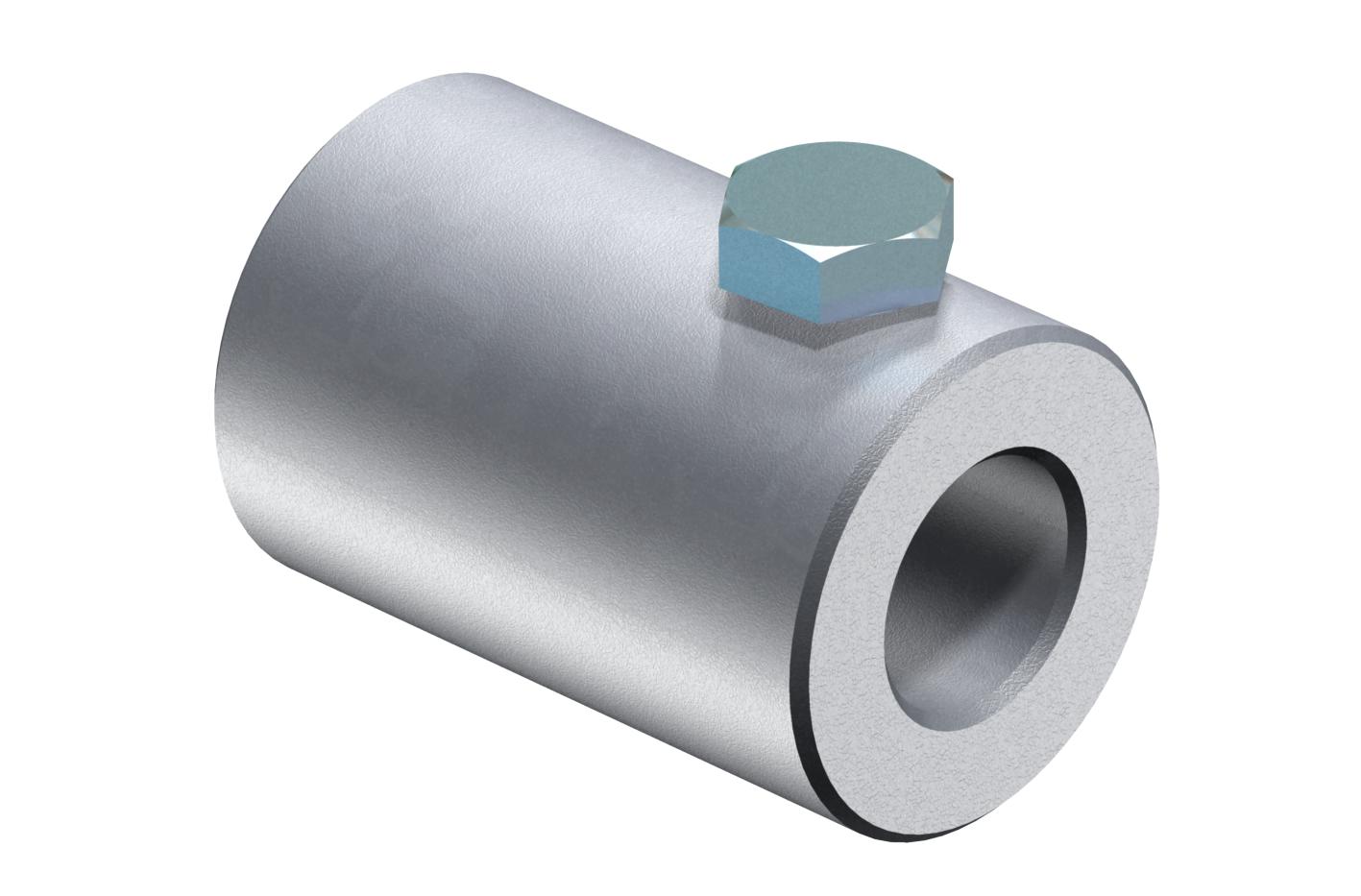

Wall connection
Item no. 5408687 | EAN 4012195673811
- Product description
-
Product description• For mounting insulating rods to structures or walls
• With M8 internal thread, e.g. for mounting the cable bracket type 177 (5207347) for loose conductor routing of round conductors
• Incl. M10 bolts
- Technical data
-
Technical data

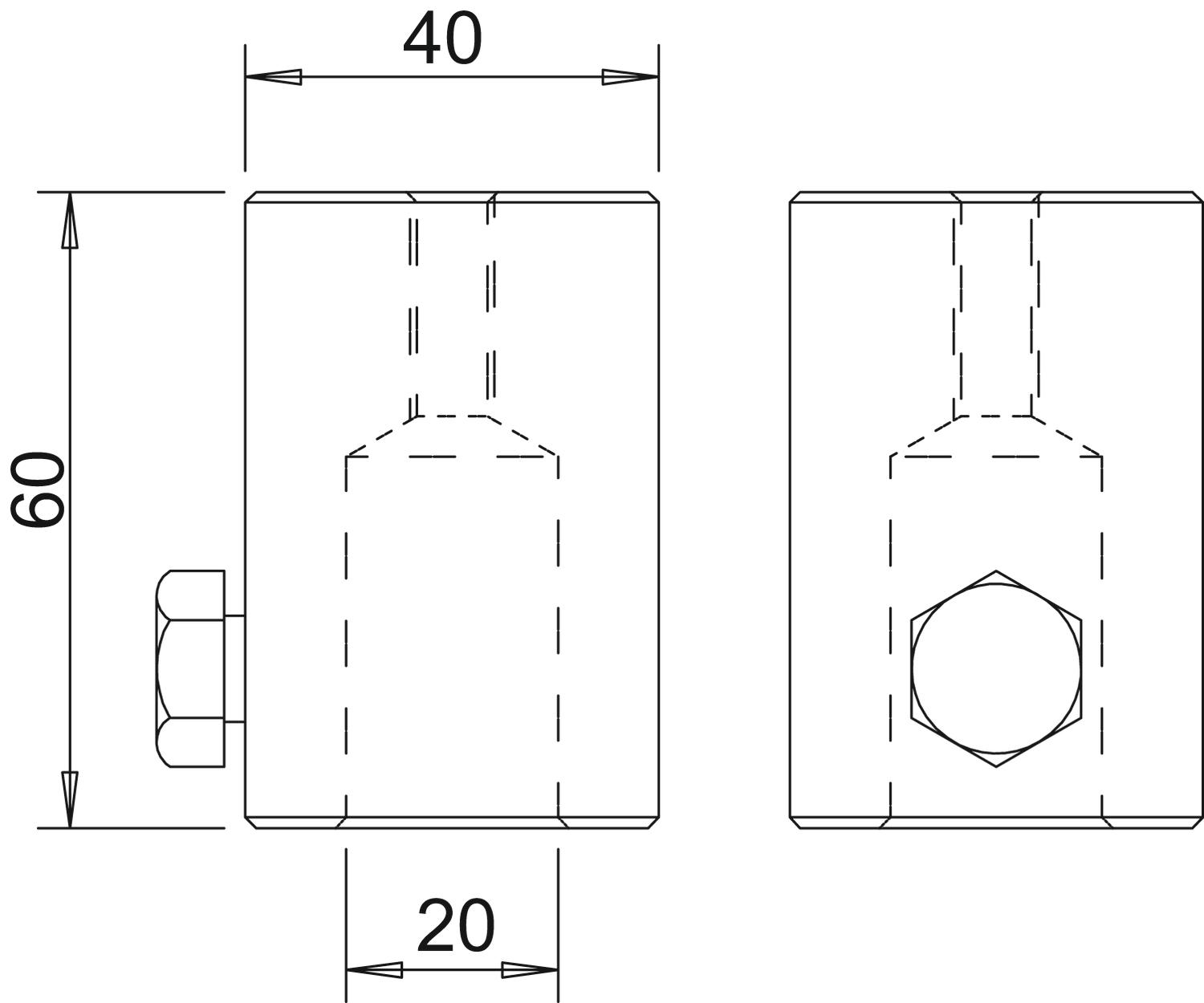

CO2 Footprint (GWP) Cradle-to-Gate 2,0301 kg CO2e / 1 Piece Connection Round conductor Dimension M10 Dimension d min. 40 mm Dimension d Ø 20 mm Dimension L 60 mm Length 60 mm Material Aluminium - All types
- Downloads
-
Data sheet 101 IW-M10 / 5408687 , 0.13MB , pdf
