Wall and support bracket MWAG 12 A2
Item no. 6424406 | EAN 4012197253882
- Product description
-

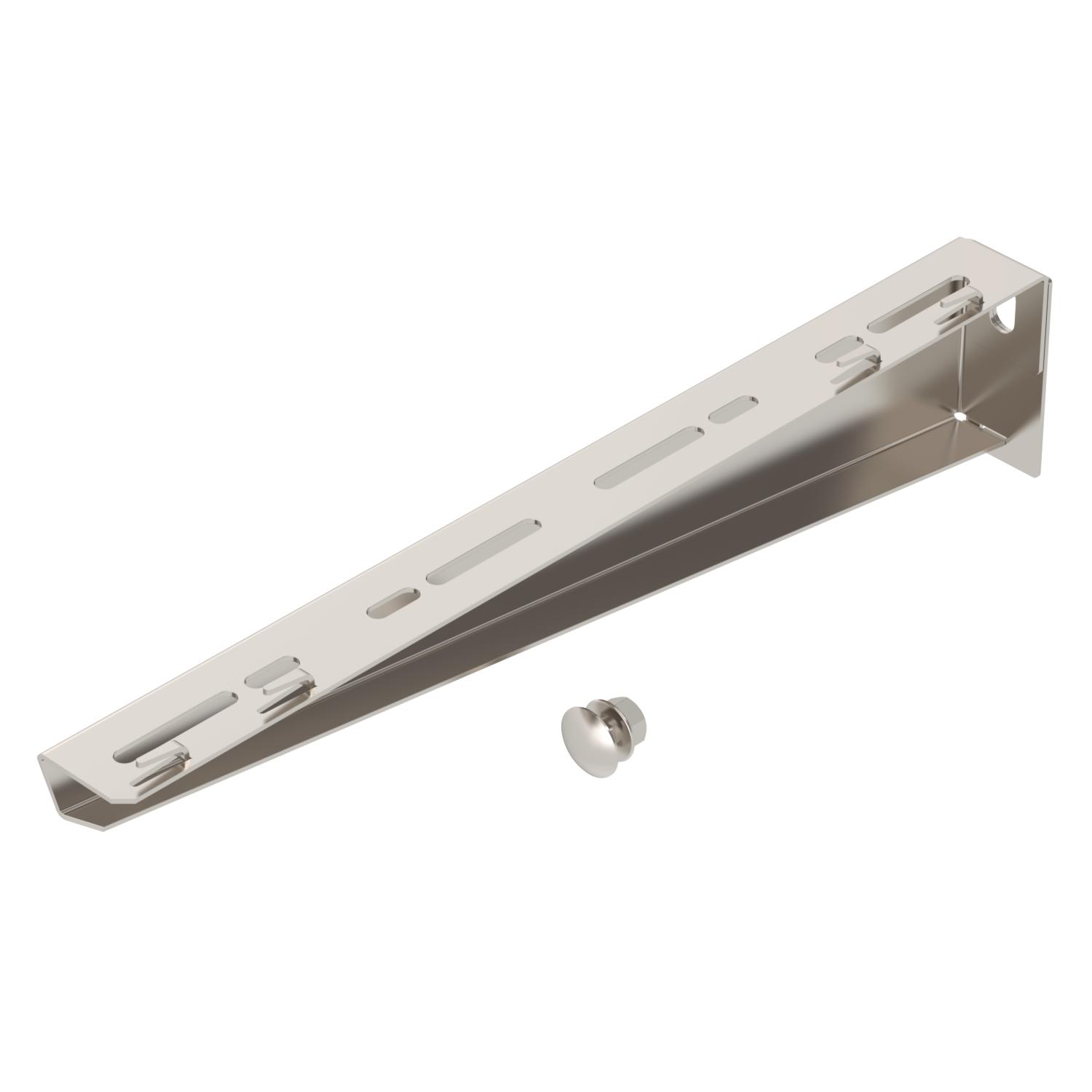

Product descriptionLight-duty wall and support bracket with edged design for screwless mesh cable tray fastening.
-
- Technical data
-
Technical data

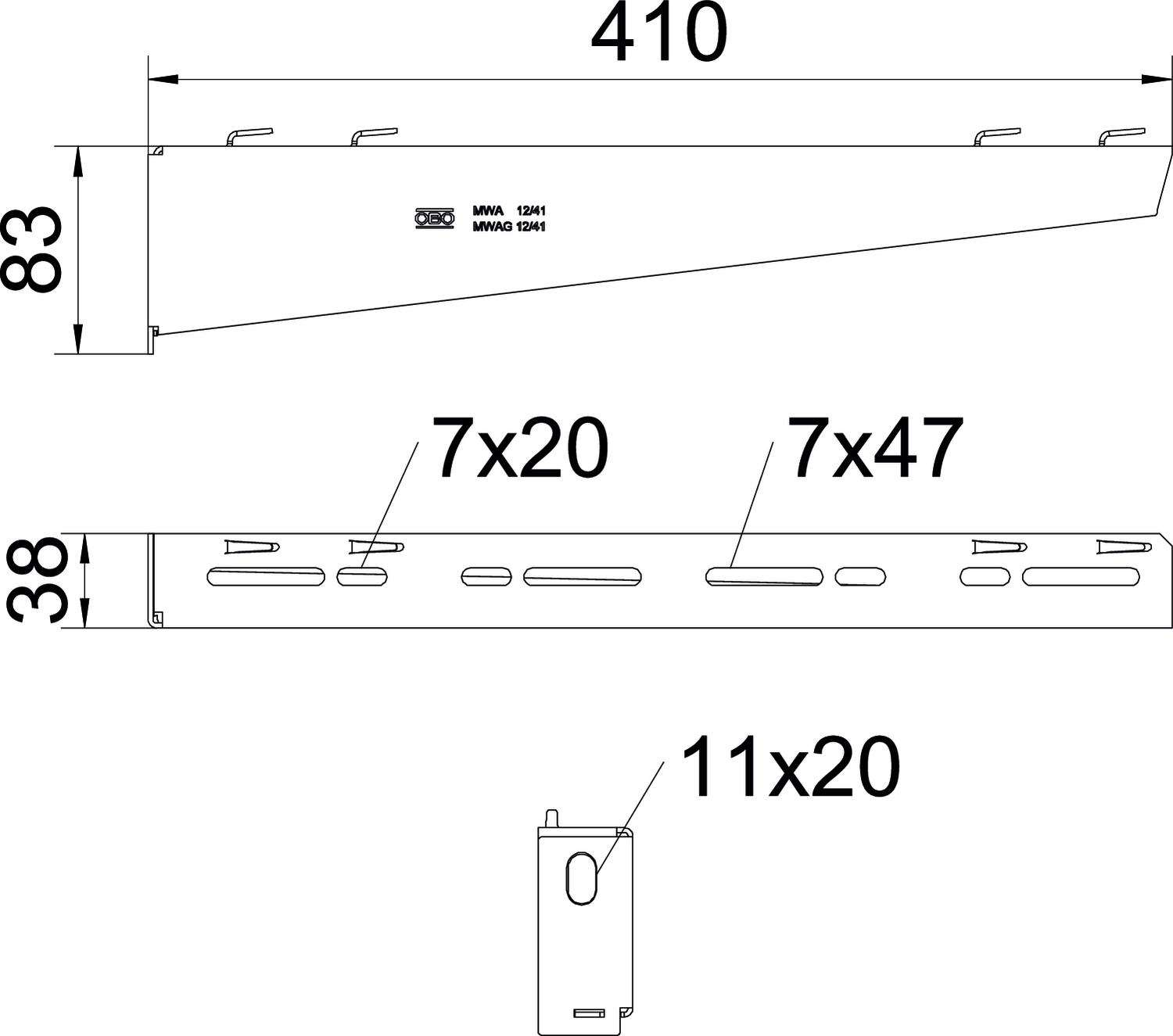

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 4,4158 kg CO2e / 1 Piece Colour stainless steel Dimension B410mm Dimension A 38 mm Dimension B 410 mm Dimension H 83 mm F in kN 1,2 kN for width min. 400 Height 83 mm Hole diameter 11 mm Maintain electrical functions no Material Stainless steel Rustproof steel, pickled no Surface Bright, treated Version for Wall and support bracket Width 410 mm - All types
- Downloads
-
Data sheet MWAG 12 41 A2 / 6424406 , 0.23MB , pdfEU declaration of conformity MWAG 12 41 A2 / 6424406 , 0.11MB , pdfUK Declaration of Conformity MWAG 12 41 A2 / 6424406 , 0.09MB , pdfREACH Declaration of conformity MWAG 12 41 A2 / 6424406 , 0.12MB , pdfRoHS Declaration of conformity MWAG 12 41 A2 / 6424406 , 0.13MB , pdfEnvironmental Product Declaration (EPD) MWAG 12 41 A2 / 6424406 , 1.48MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
