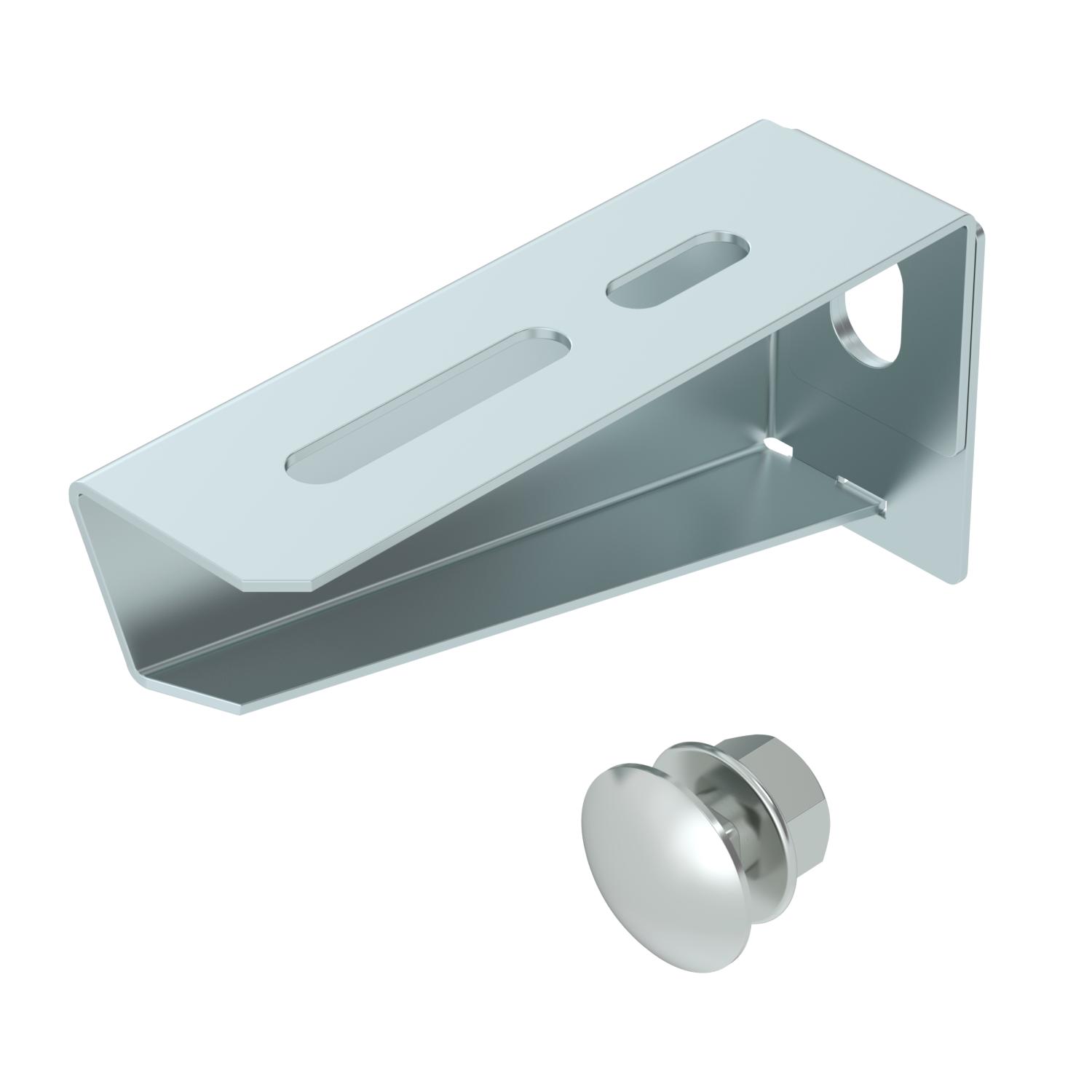

Wall and support bracket MWA 12 FS
Item no. 6424716 | EAN 4012196636853
- Product description
-
Product descriptionLight-duty wall and support bracket.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 0,3698 kg CO₂e / 1 Piece Colour zinc Dimension B110mm Dimension A 32,5 mm Dimension B 110 mm Dimension H 53 mm F in kN 1,2 kN Height 2,09 in Height 53 mm Hole diameter 11 mm Length 32,5 mm Maintain electrical functions yes Maß W 110 mm Material Steel Rustproof steel, pickled no Surface Strip galvanized Version for Wall and support bracket Width 4 in Width 110 mm Technical data

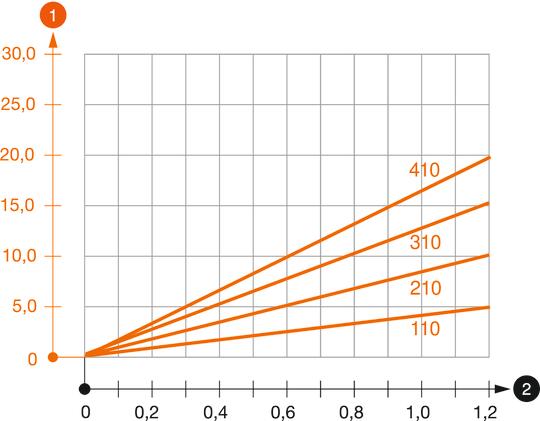

Load diagram, bracket, type MWA 12
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no.

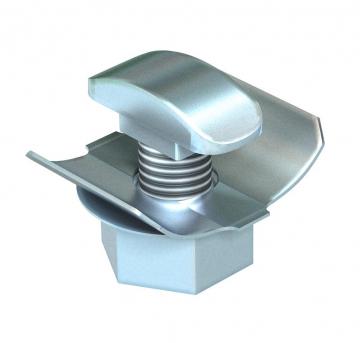

Quick connector
FCM F 6424548 - Downloads
-
