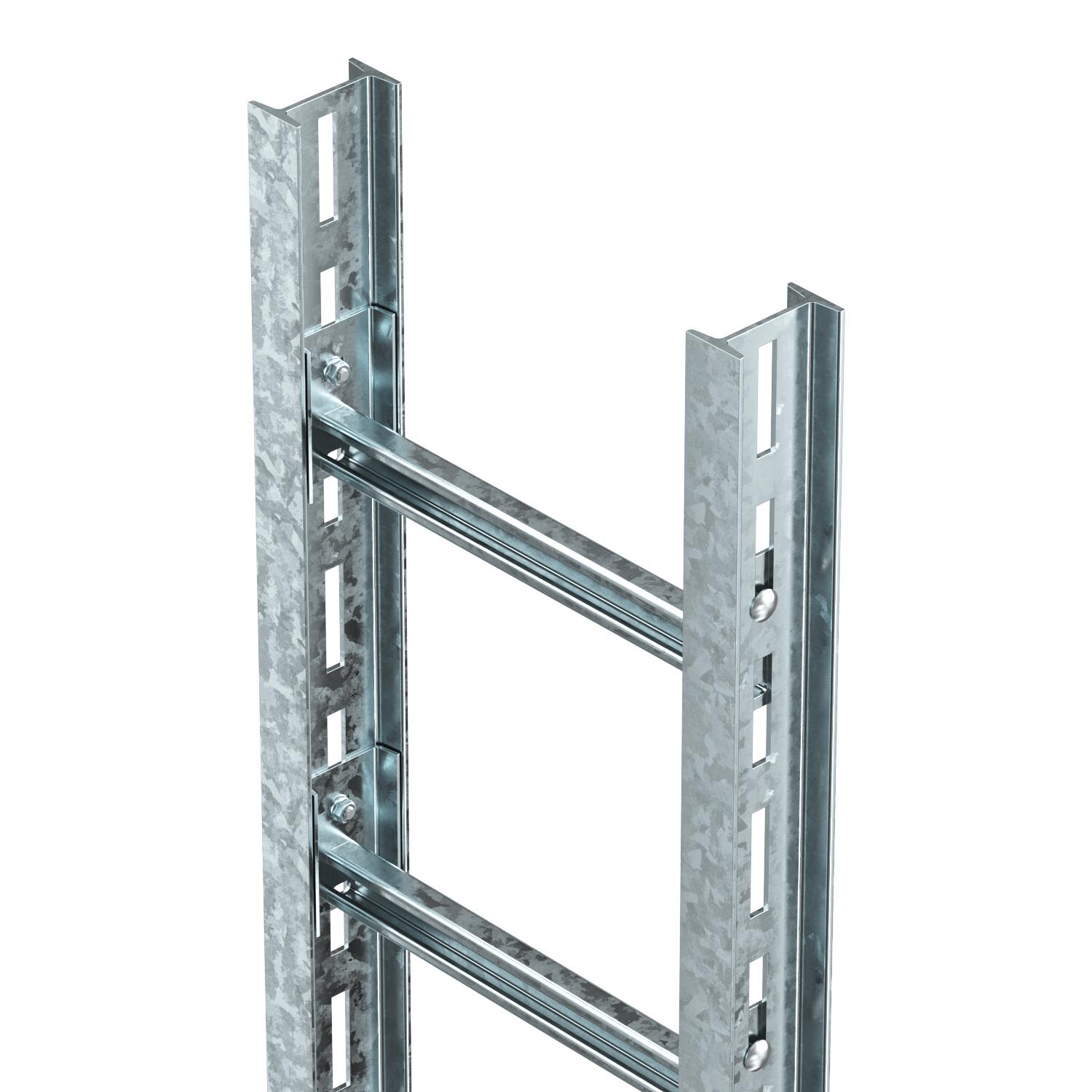

Vertical ladder, SLS80
Item no. 6010105 | EAN 4012196959907
- Product description
-
Product descriptionIndustrial vertical ladder system for the maintenance of electrical function to DIN 4102 Part 12. Approved clips, type BS-U1-M-… FT. Supplied unmounted.
- Technical data
-
Technical data

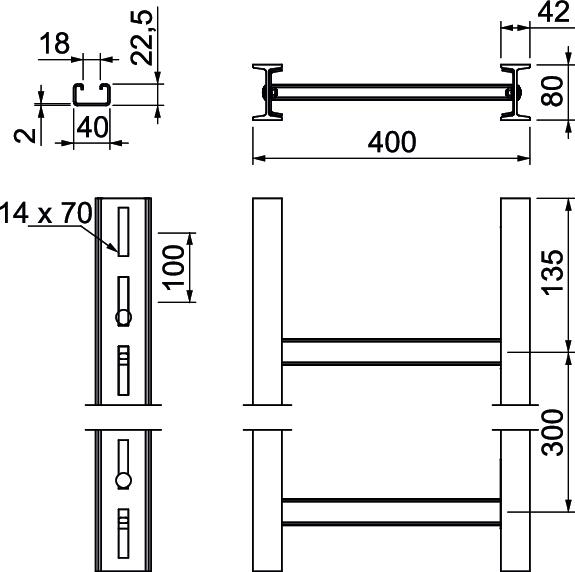

CO2 Footprint (GWP) Cradle-to-Gate 31,3191 kg CO2e / 1 Meter Colour zinc Dimension 400x3000mm Dimension B 400 mm Fire protection Maintenance of electrical function of standard support structure Height 80 mm Length 3000 mm Maintain electrical functions yes Material Steel Rung distance 300 mm Rung slot dimension 2,00 Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Version of the rungs Profile unperforated Width 400 mm - All types
-
System accessories
Products Types Item no.
Strain relief on three sides, with mineral wool, internal height 115 mm
ZSE90-45-11 7215709
Strain relief on three sides, with mineral wool, internal height 175 mm
ZSE90-45-17 7215719
Strain relief on three sides, empty housing, internal height 115 mm
ZSE90-45-11 L 7215764
Strain relief on three sides, empty housing, internal height 175 mm
ZSE90-45-17 L 7215770
Identification plate for maintenance of electrical function
KS-E DE 7205423 Mounting accessories
Products Types Item no.
Mounting angle BW 80
BW 80 55 FT 6019528 - Downloads
-
Data sheet SLS80C40F 40 FT / 6010105 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity SLS80C40F 40 FT / 6010105 , 0.10MB , pdfNo invitation to tender text is available for this product.
