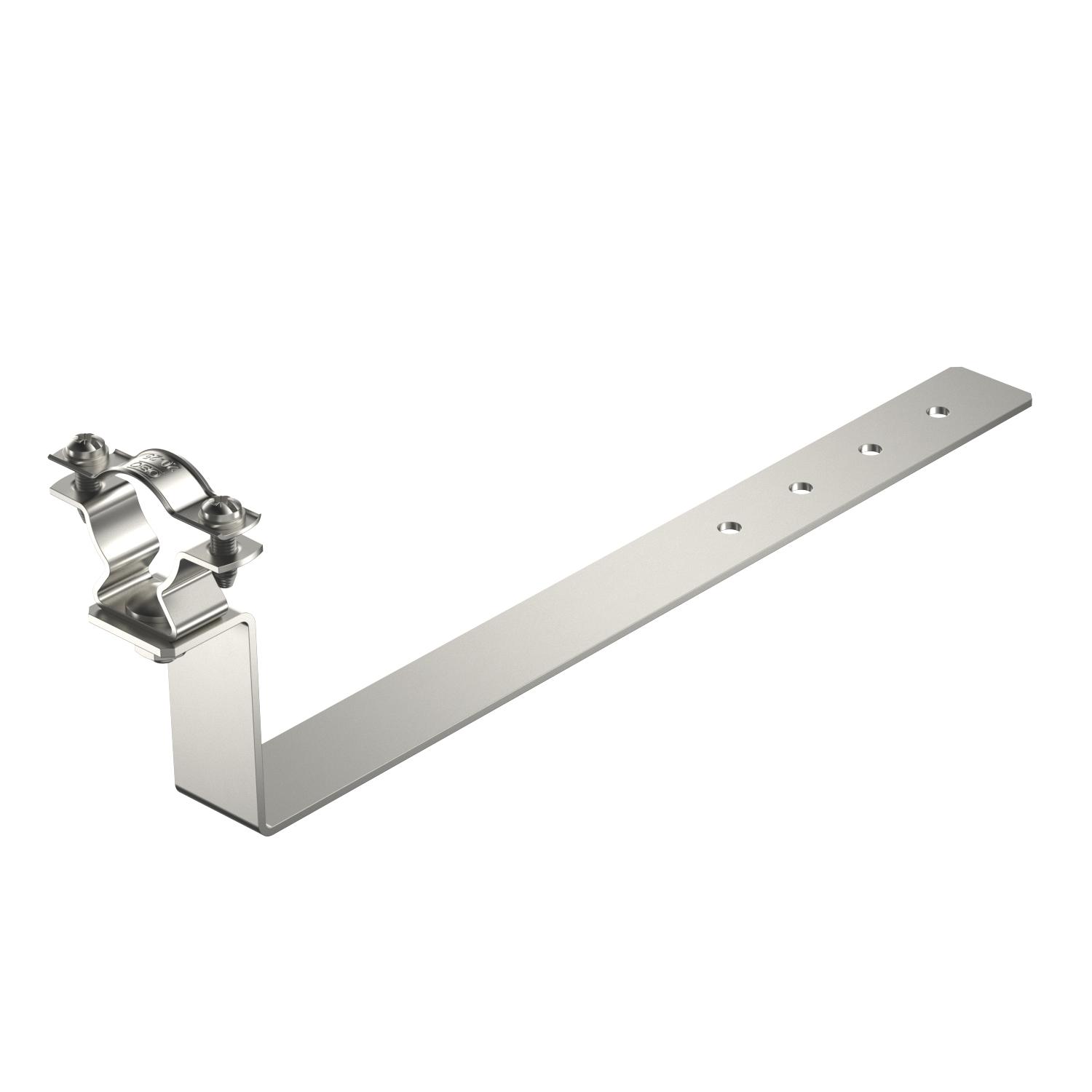

VA roof conductor holder, pitched roofs
Item no. 5408047 | EAN 4012195674870
- Product description
-
Product description• For routing of the isCon® conductor on pitched roofs
• Cable bracket with sprung discs to protect the screws against loosening
- Technical data
-
Technical data

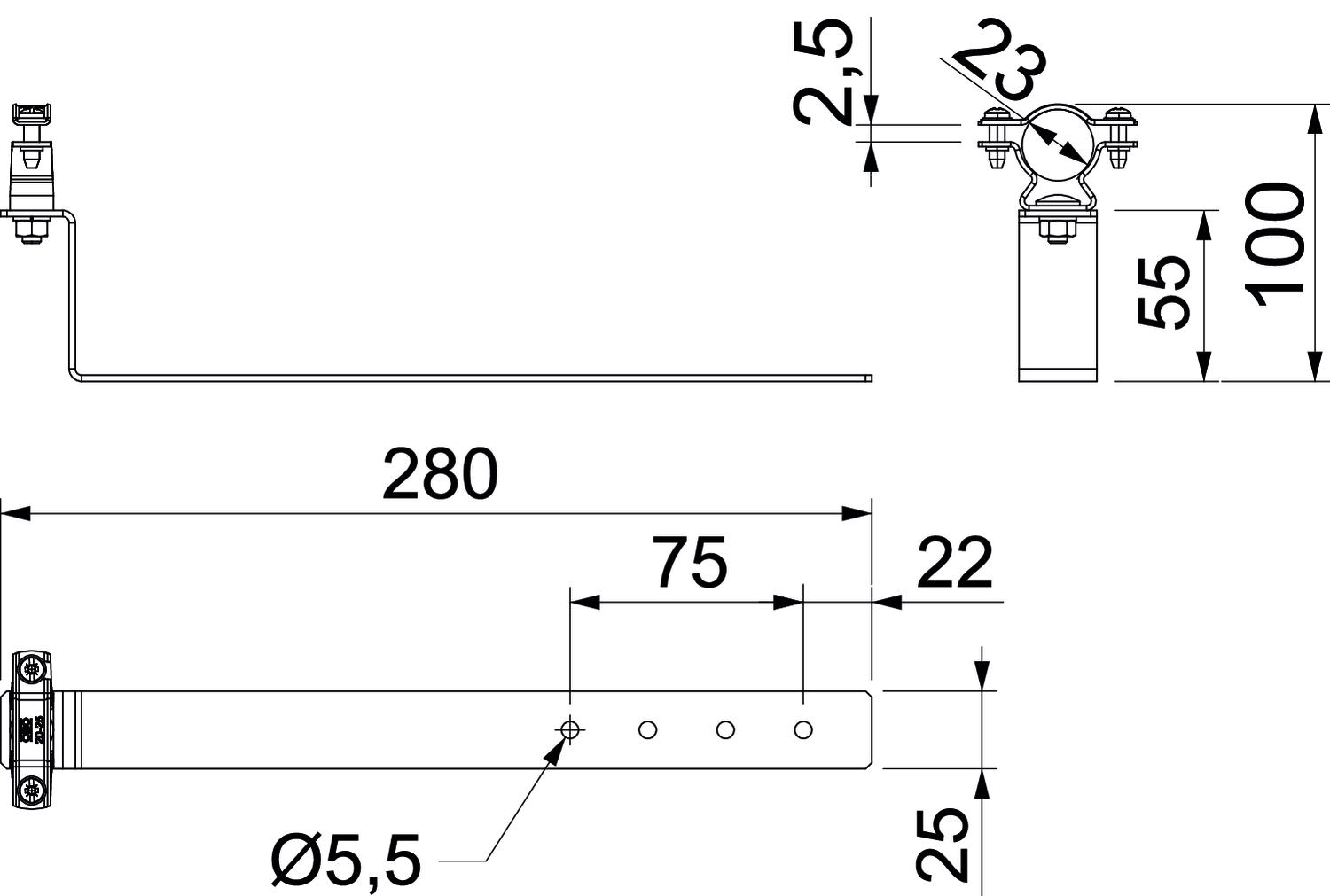

Application Pitched roof CO2 Footprint (GWP) Cradle-to-Gate 1,171 kg CO2e / 1 Piece Conductor diameter, min. 23 Conductor fastening type With clamp clip Connection Round conductor Dimension 280mm Dimension L 2,5 mm Length 280 mm Material Stainless steel Mounting height 55 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet isCon H280 VA / 5408047 , 0.16MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,Mounting instructions Extended mounting instructions, long isCon® , 6.11MB , pdf
