UP Flush-mounted outlet box 35 | 20 mm | 4
morepic-1 morepic-2

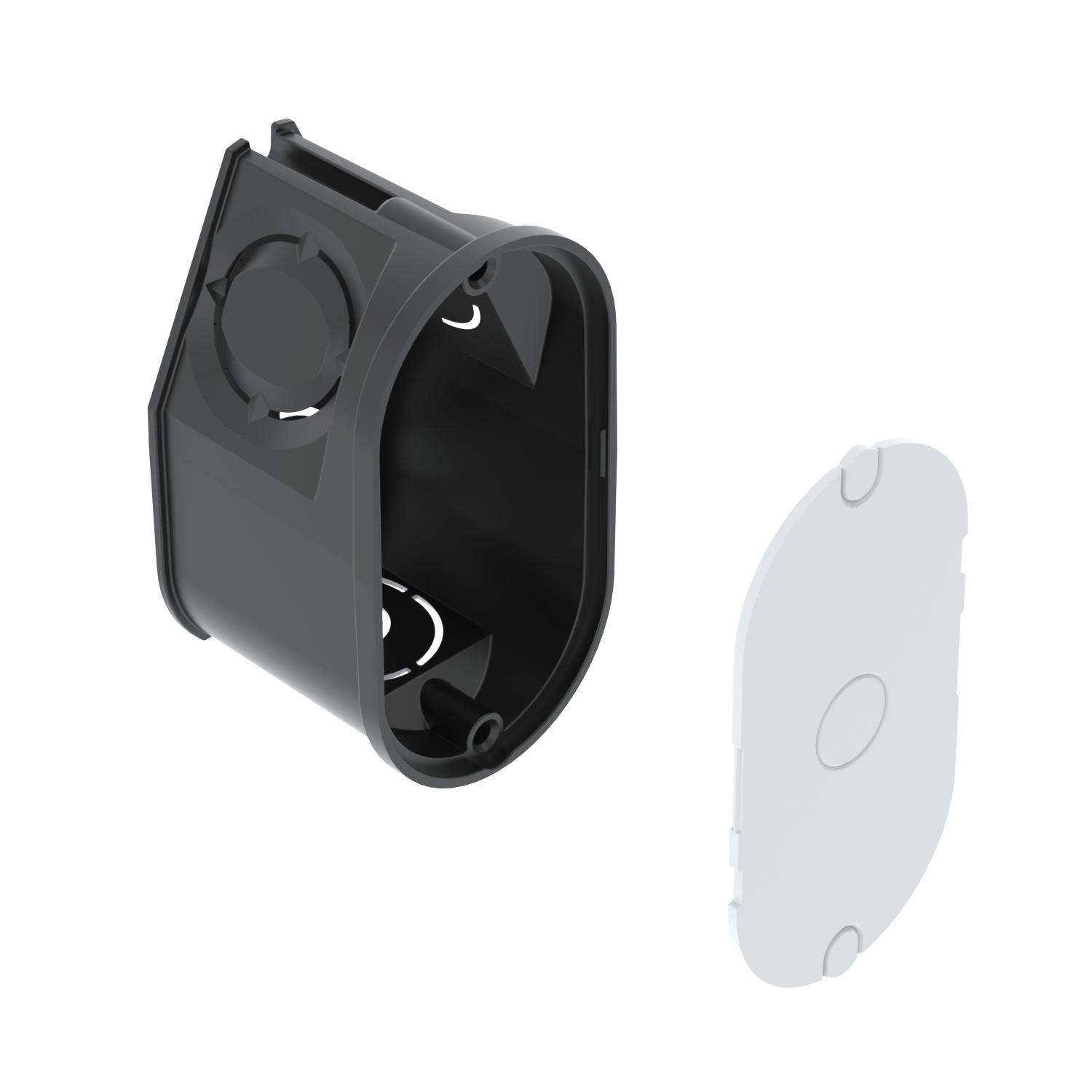

UP Flush-mounted outlet box

Item no. 2003732 | EAN 4012196715862

2003732 / UG 30-WA-D
35 mm
20 mm
4
Product description
Product description
Flush-mounted outlet box for single cable routing. Oval shape, for use in masonry with an installation depth of at least 35 mm.

• 2 entries up to Ø 20 mm
• 1 combination entry of Ø 10 and 20 mm
• 1 entry up to Ø 20 mm in the base
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Nominal cross-section 1.5 mm²
Technical data

Technical data

Airtight no
CO2 Footprint (GWP) Cradle-to-Gate 0,0932 kg CO₂e / 1 Piece
Colour Jet black
Cover White
Cover fastening Locking

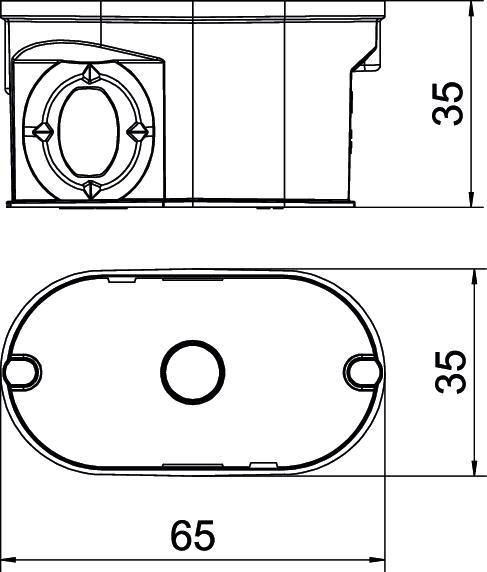

Dimension Ø2x35mm, H35
Entry from rear yes
Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter 20 mm
Halogen-free yes
Height 35 mm
Impact-resistant yes
Length 65 mm
Material Polypropylene
Max. Conductor cross-section 2,5 mm²
No. of entries 4
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 1,5 mm²
Pipe entries Ø 20 mm 4
Protection rating IP30
Rated voltage 400 V
Shape Miscellaneous
Type of entry NYM cables, data cables and corrugated pipes
Type of housing penetration Break-out opening
Width 35 mm
With bolts no
With nail strap no
All types

All types

Types Height for pipe diameter No. of entries Item no.
UG 30-WA-D 35 mm 20 mm 4 2003732
