UP Flush-mounted device connection box 46, double version 46 | | 20/25 mm | 12

UP Flush-mounted device connection box 46, double version

Item no. 2003722 | EAN 4012196856244

Item no. / Types	2003722 / UG 46-DV

Height	46 mm

for pipe diameter	20/25 mm

No. of entries	12

Product description

Product description

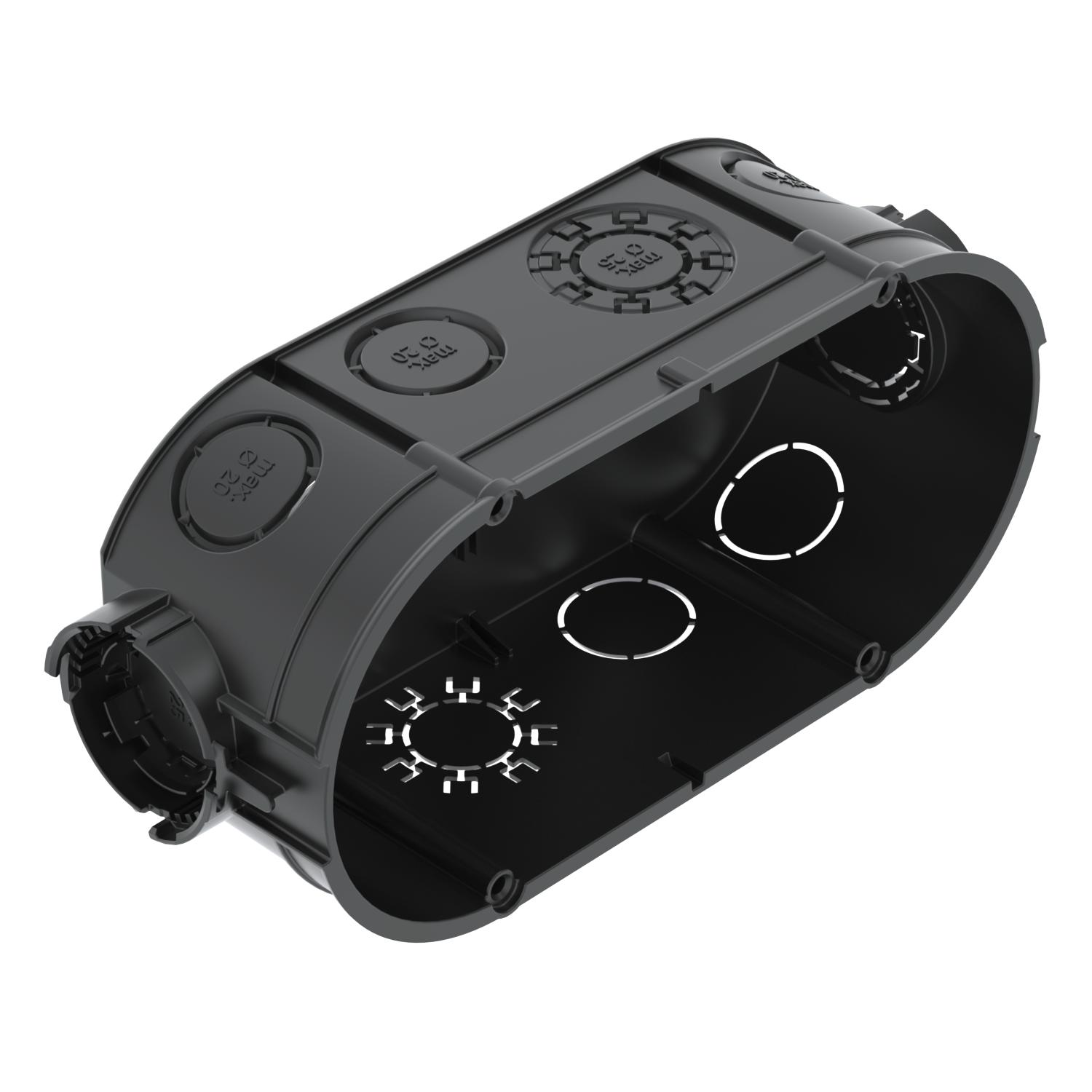

Double flush-mounted device box, for use in masonry with an installation depth of at least 46 mm.

• Connector with bayonet lock, couplable on both sides
• 4 combination pipe entries of Ø 20 and 25 mm
• 6 entries up to Ø 20 mm
• 2 entries up to Ø 20 mm in the base
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	no
CO2 Footprint (GWP) Cradle-to-Gate	0,1365 kg CO₂e / 1 Piece
Colour	deep black / blue grey
Combination entries Ø 20 / 25 mm	4
Cover	Without
Cover fastening	Screws ,
Device fixing	Screws or spreading claws

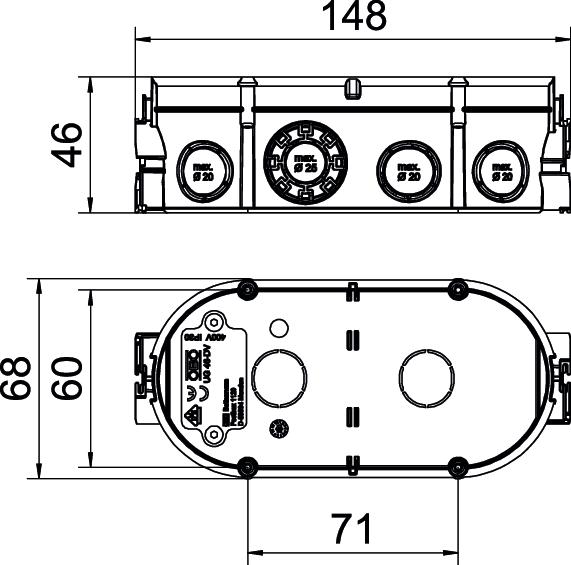

Dimension	2x Ø60xH46mm
Entry from rear	yes
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	46 mm
Impact-resistant	yes

Length	148 mm
Material	Polypropylene
No. of entries	12
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Pipe entries Ø 20 mm	8
Protection rating	IP30
Rated voltage	400 V
Shape	Oval
Type of entry	NYM cables, data cables and corrugated pipes
Type of housing penetration	Break-out opening
Width	68 mm
With bolts	no
