UP Flush-mounted device box 46, with device screws 46 | 60 | 20/25 mm | 7

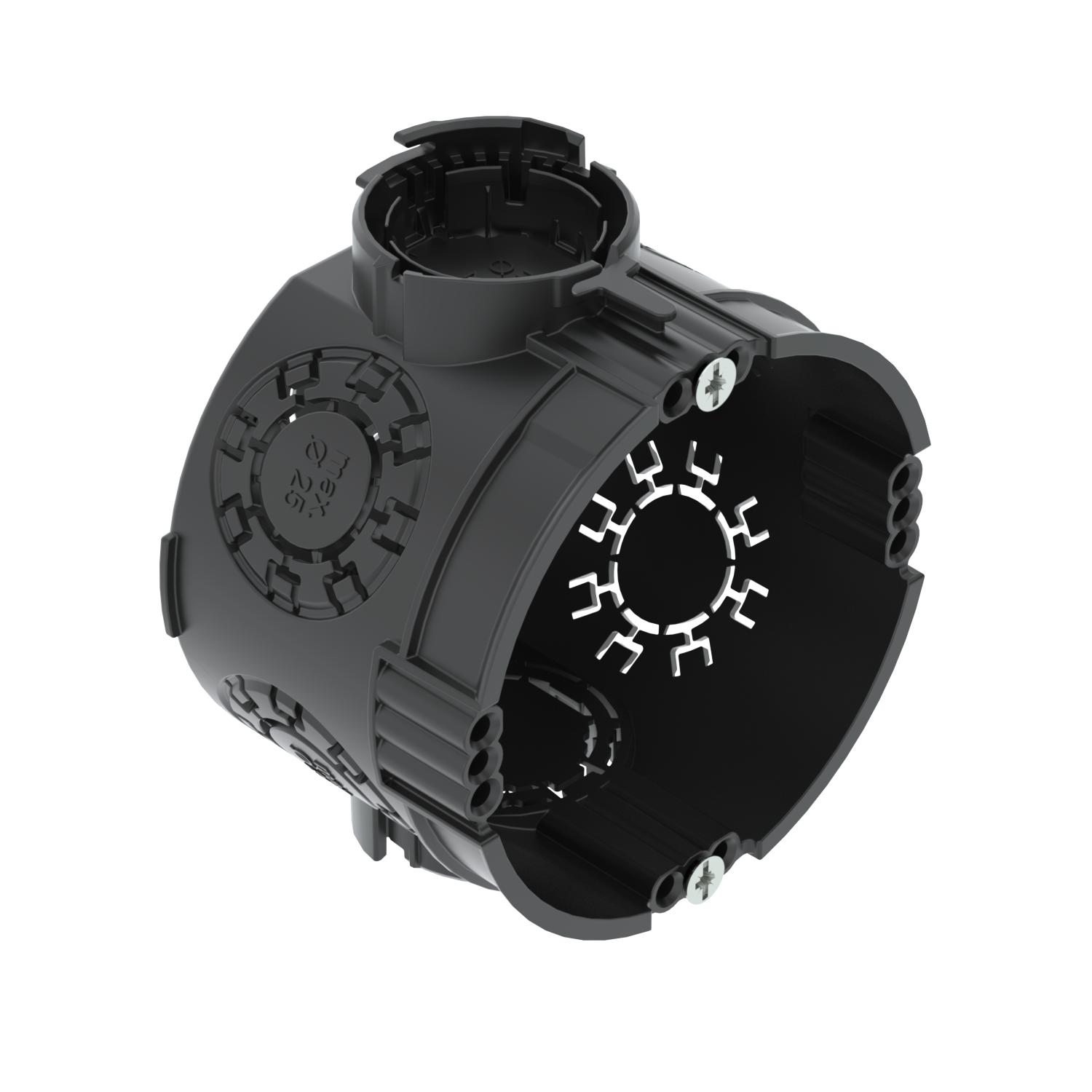

UP Flush-mounted device box 46, with device screws

Item no. 2003701 | EAN 4012196689903

Item no. / Types	2003701 / UG 46-GS

Height	46 mm

Diameter	60 mm

for pipe diameter	20/25 mm

No. of entries	7

Product description

Product description

Flush-mounted device box, for use in masonry with an installation depth of at least 46 mm.

• 4 x 3 screw domes
• 2 pre-mounted device screws
• Connector with bayonet lock, couplable on both sides
• 6 combination pipe insertions of Ø 20 and 25 mm
• 1 entry up to Ø 20 mm in the base
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0738 kg CO₂e / 1 Piece
Colour	Jet black
Combination entries Ø 20 / 25 mm	6
Cover	Without
Cover fastening	Screws ,
Device fixing	Screws or spreading claws
Diameter	60 mm

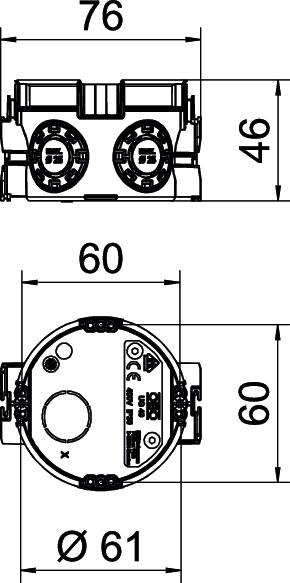

Dimension	Ø60mm, H46mm
Entry from rear	yes
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	46 mm

Impact-resistant	yes
Material	Polypropylene
No. of entries	7
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Pipe entries Ø 20 mm	1
Protection rating	IP30
Rated voltage	400 V
Shape	Round
Type of entry	NYM cables, data cables and corrugated pipes
Type of housing penetration	Break-out opening
With bolts	yes
With nail strap	no

All types

All types

Types	Height	Diameter	for pipe diameter	No. of entries	Item no.
UG 46-GS	46 mm	60 mm	20/25 mm	7	2003701

Accessories

Mounting accessories

Products	Types	Item no.
UP Quick-Fix	ZU 60-QF	2003740
UP Plaster compensation ring 12 mm, flush-mounted device box	ZU 12-PR	2003742
UP Plaster compensation ring 24 mm, flush-mounted device box	ZU 24-PR	2003744
UP Signal cover flush-mounted boxes, single	ZU 60-SD	2003760
UP Distance connector	ZU 20-AS	2003746
