Unperforated cover FS

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

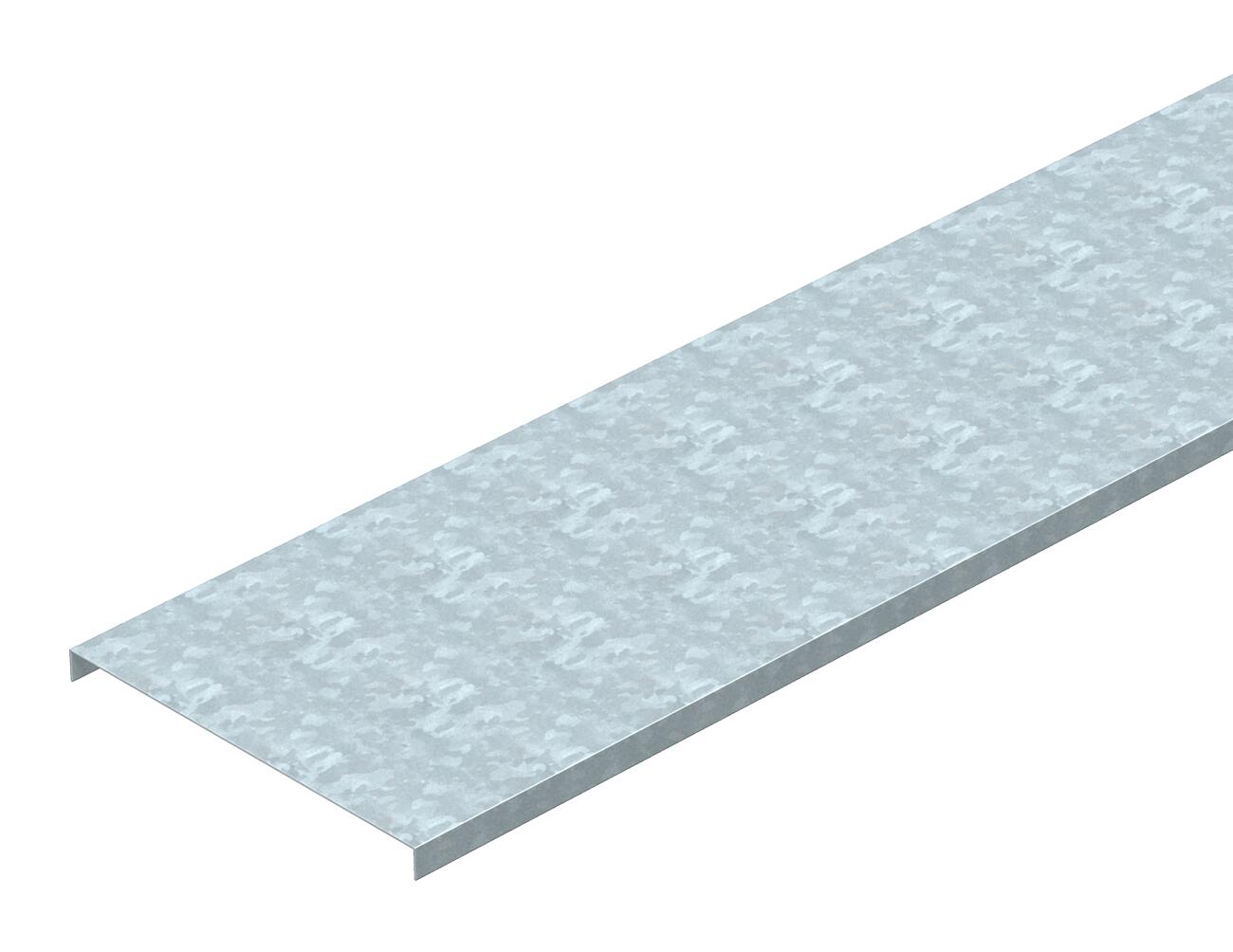

Cover for cable trays and mesh cable trays.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,3355 kg CO2e / 1 Meter
Colour	zinc
Dimension	50x3000
Dimension B	50 mm
Dimension H	15 mm
Fastening type	Screw-on
Height	35 mm
Length	3000 mm
Length	10 ft
Maintain electrical functions	no

All types

All types

Types	Length	Width	Plate thickness	Item no.
DRLU 050 FS	3000 mm	50 mm	1 mm	6052056
DRLU 100 FS	3000 mm	100 mm	1 mm	6052103
DRLU 150 FS	3000 mm	150 mm	1 mm	6052153
DRLU 200 FS	3000 mm	200 mm	1 mm	6052210
DRLU 300 FS	3000 mm	300 mm	1 mm	6052307
DRLU 400 FS	3000 mm	400 mm	1 mm	6052405
DRLU 500 FS	3000 mm	500 mm	1.5 mm	6052512
DRLU 600 FS	3000 mm	600 mm	1.5 mm	6052609

Accessories

Products	Types	Item no.
Cover clamp, universal A2	DKU A2	6065600
Turn buckle FT	AZDR 50 FT	6065112
Tightening strap A2K Jet black	SBR 8 A2K	6490192
Tightening strap FSK, Stone grey	SBR 15 FSK	6490280
Tightening strap A2K, Jet black	SBR 15 A2K	6490282
