Unperforated cover A4

Item no. 6052996 | EAN 4012195021223

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

Unperforated cover for covering cable trays and mesh cable trays.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	43,3403 kg CO2e / 1 Meter
Colour	stainless steel
Dimension	500x3000
Dimension B	500 mm
Fastening type	Cover clamp
Height	13 mm
Length	10 ft
Length	3000 mm
Maintain electrical functions	no
Material	Stainless steel

Plate thickness	0,05 in
Plate thickness	1,25 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	yes
Surface	Bright, treated
Width	20 in
Width	500 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.
DRLU 050 A4	3000 mm	50 mm	1 mm	6052978
DRLU 100 A4	3000 mm	100 mm	1 mm	6052991
DRLU 200 A4	3000 mm	200 mm	1 mm	6052993
DRLU 300 A4	3000 mm	300 mm	1 mm	6052994
DRLU 400 A4	3000 mm	400 mm	1 mm	6052995
DRLU 500 A4	3000 mm	500 mm	1.25 mm	6052996
DRLU 600 A4	3000 mm	600 mm	1.25 mm	6052998

Accessories

Mounting accessories

Products	Types	Item no.
Cover clamp A2	DK DRLU A2	6052810
Turn buckle	DRL H S A2	6065016
Tightening strap A2K Jet black	SBR 8 A2K	6490192
Tightening strap A2K, Jet black	SBR 15 A2K	6490282

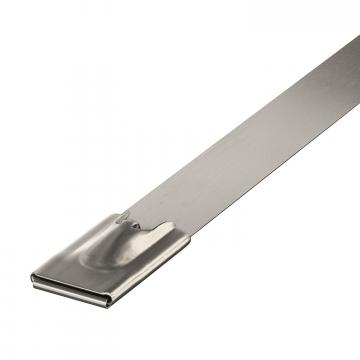

Metal strip clips, wide	MBS 120 A2	7203113
Metal strip clips, wide	MBS 150 A2	7203115
