Universal connector 110 FS
Item no. 6067880 | EAN 4012197364281
- Product description
-

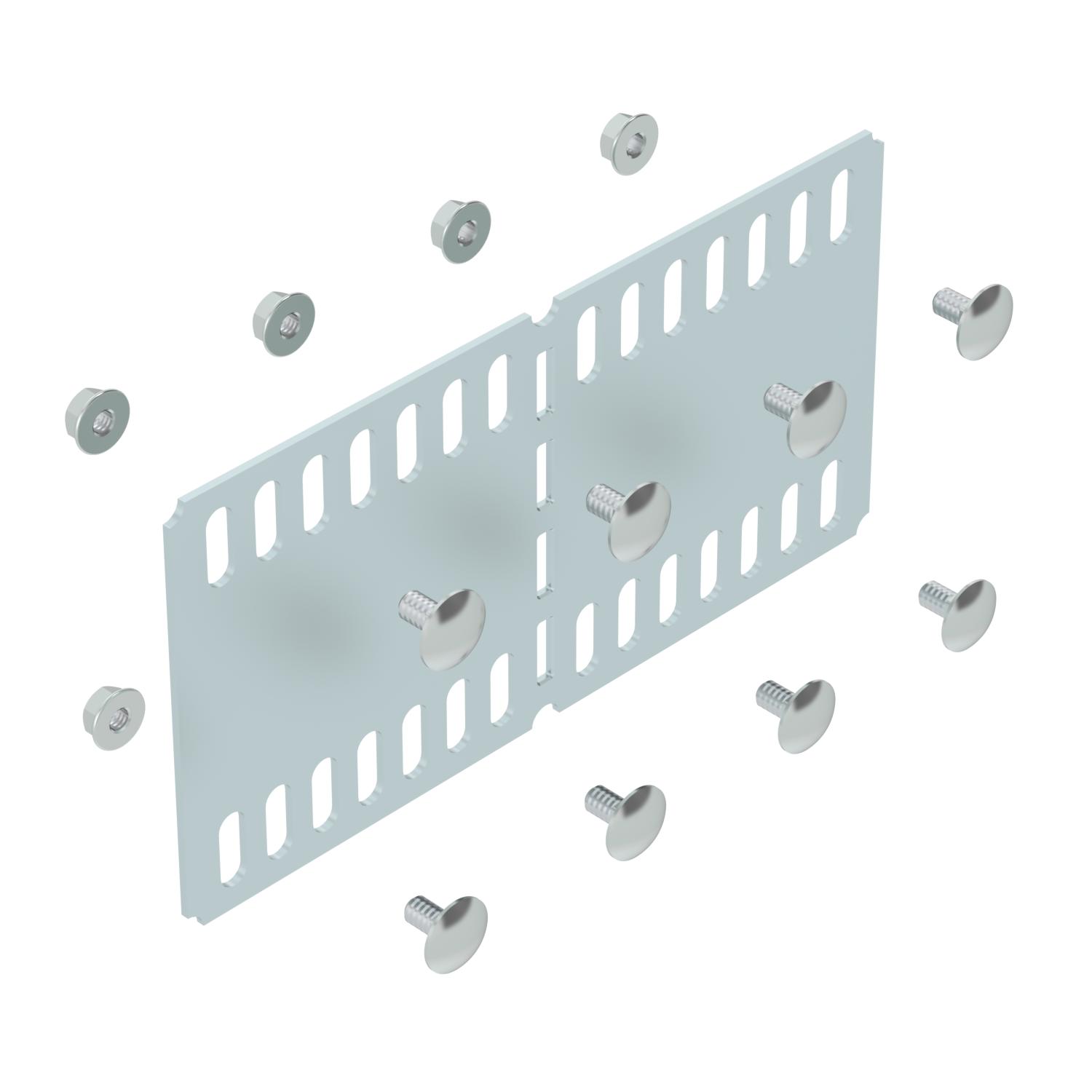

Product descriptionUniversal connector for horizontal straight and angle connectors of walkable cable trays. In an angle state with additional cable protection through flattened edges. Including fastening material.
-
- Technical data
-
Technical data

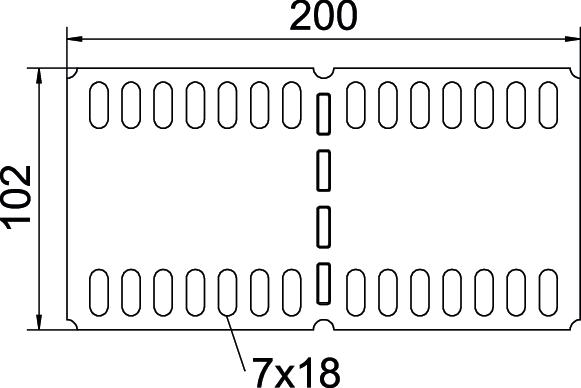

Adjustable connector, horizontal yes Colour zinc Connection type Screw connector Dimension 110x200 Dimension 110x200 Height 102 mm Length 200 mm Material Steel Plate thickness 2 mm Quantity of bolts 8 St. Suitable for cable support system width, max. 600 mm Suitable for cable support system width, min. 100 mm Suitable for cable tray yes Suitable for cable tray system height 110 mm Surface Strip galvanized Version for Straight and angle connector - All types
- Downloads
-
Data sheet RUVK 110 FS / 6067880 , 0.15MB , pdfEU declaration of conformity RUVK 110 FS / 6067880 , 0.10MB , pdfUK Declaration of Conformity RUVK 110 FS / 6067880 , 0.09MB , pdfREACH Declaration of conformity RUVK 110 FS / 6067880 , 0.12MB , pdfRoHS Declaration of conformity RUVK 110 FS / 6067880 , 0.13MB , pdfMounting instructions Begehbares Kabelrinnensystem BKRS für VW AG nach VASS-Standard , 4.17MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
