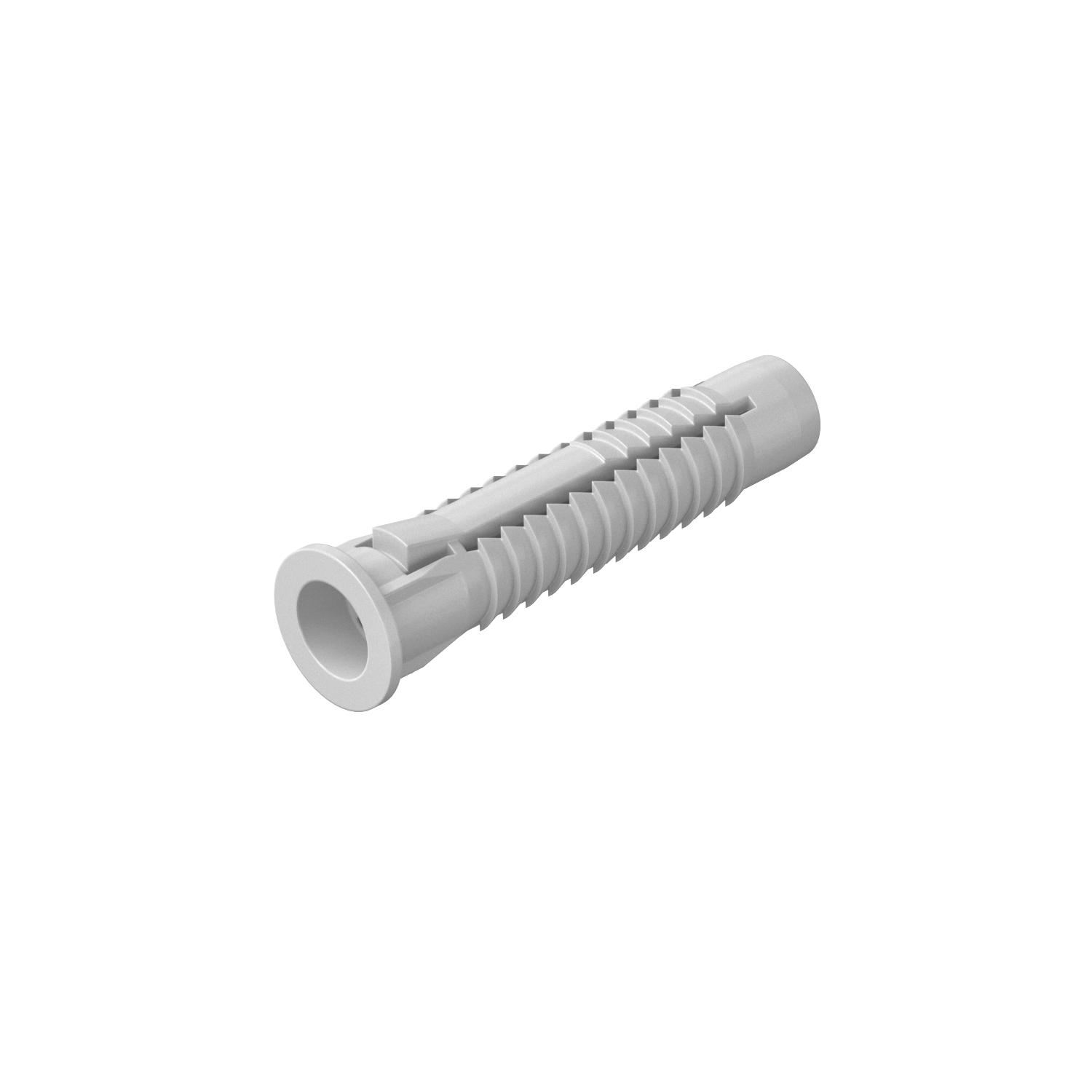

Universal anchor
Item no. 2347582 | EAN 4012196788538
- Product description
-
Product descriptionAlso suitable as a cavity anchor, with collars to prevent slipping. 3 tabs take up the torque.
Required minimum bolt length = anchor length + component thickness + 1 x bolt Ø.
Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.
Our safety value recommendation: 5x
-
- Technical data
-
Technical data

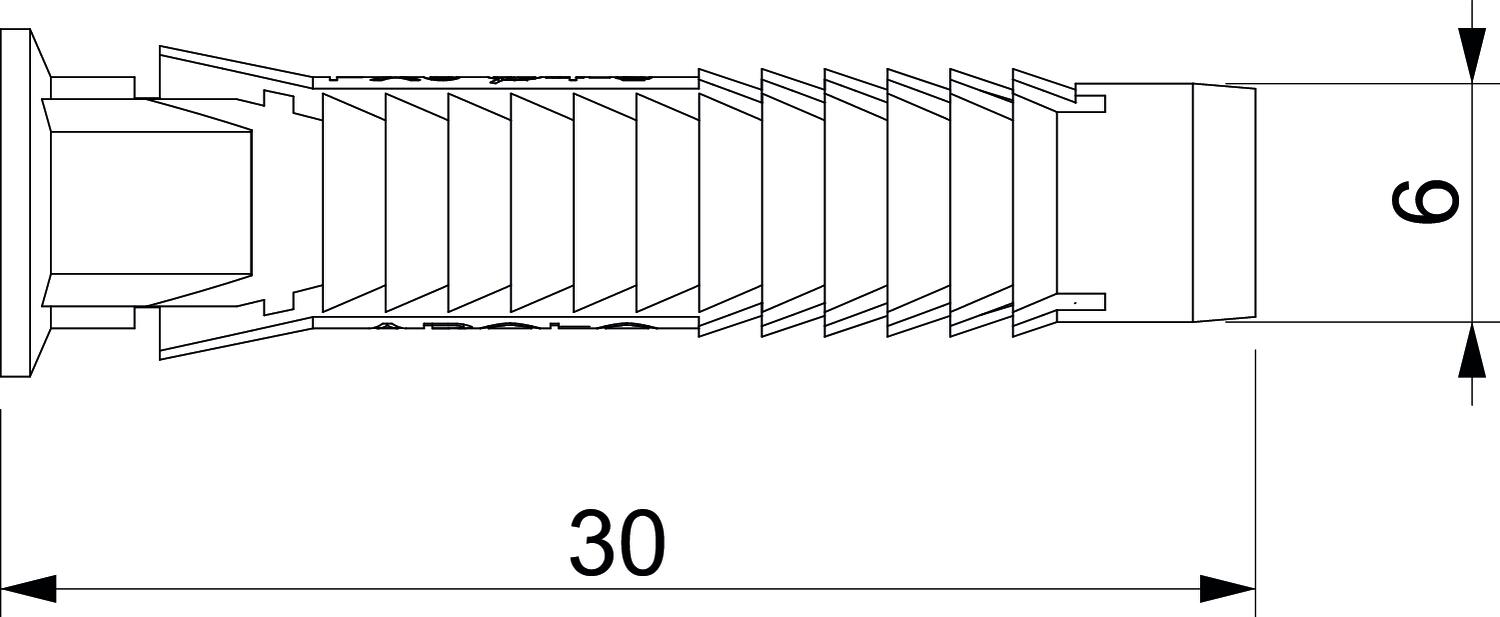

Colour Light grey Diameter 6 mm Dimension 6x30 Dimension D 6 mm Dimension L 30 mm Drill hole diameter, min. 6 mm Length 30 mm Material Polyethylene Pull-out value 470 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw yes Version for Universal anchor With bolts no Wood screws 3,5-5 - All types
