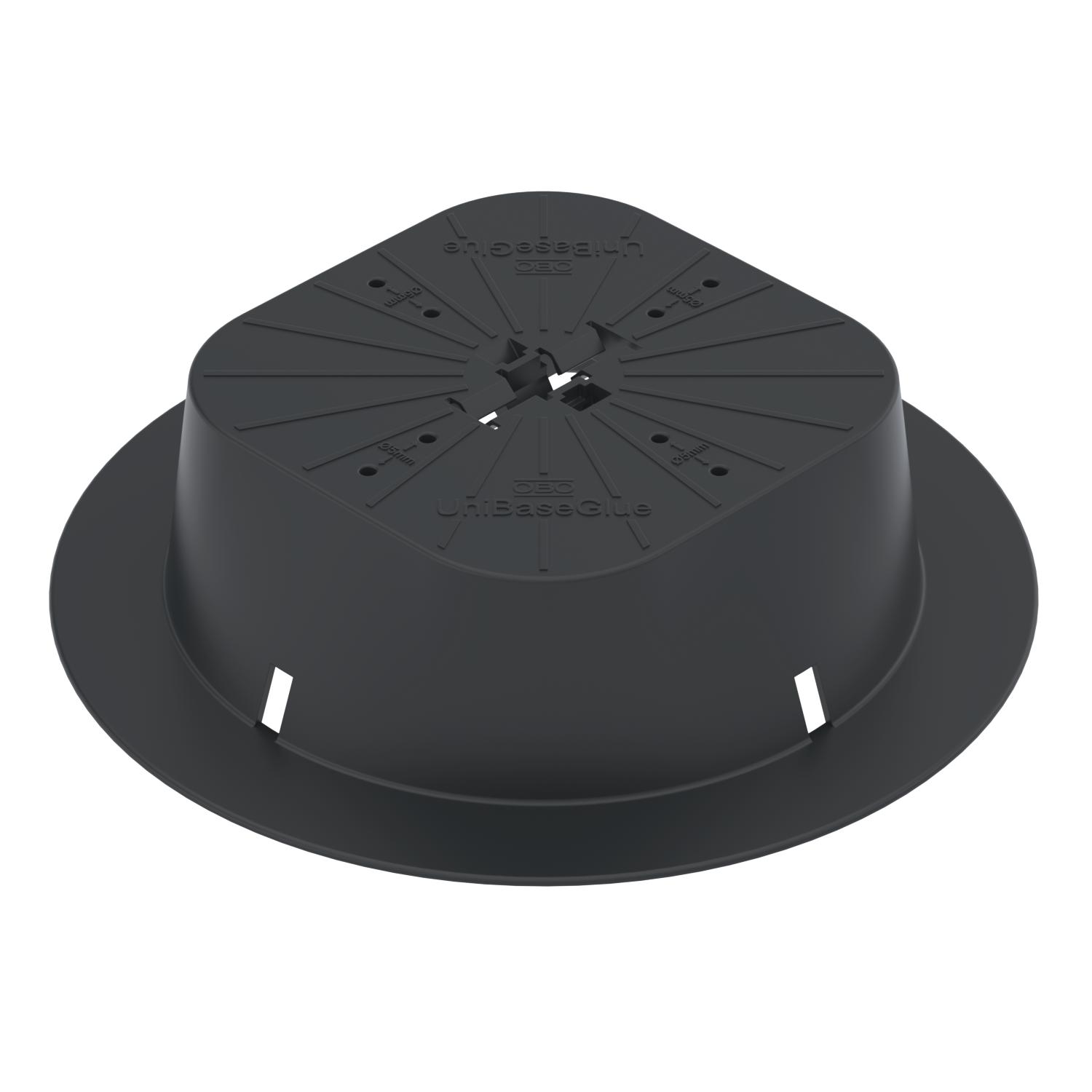

UniBase universal stand for gluing

Name: UniBase universal stand for gluing
Brand: OBO Bettermann
SKU: 5403395

Item no. 5403395 | EAN 4012197378035

Product description

Product description

Universal stand for gluing on flat roofs. Can be used for routing cables with cable trays or mesh cable trays in conjunction with 165 MBG HGRM roof conductor holders. Gluing collar must be selected according to the substrate.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0088 kg CO2e / 1 Piece
Colour	Black

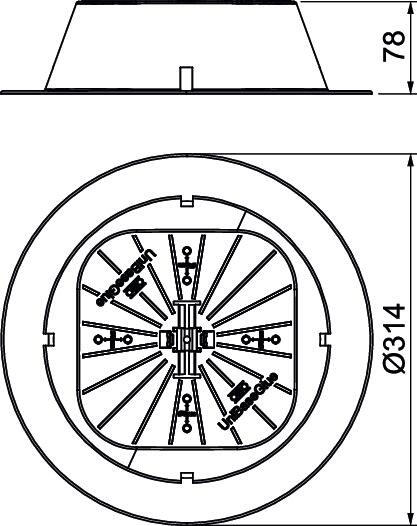

Diameter	314 mm
Fit	5 mm
Height	78 mm

Length	314 mm
Material	Acrylnitrile-styrene-acrylester
Version for	Base
Width	314 mm

All types

All types

Types		Item no.
UniBase Glue		5403395

Accessories

Mounting accessories

Products	Types	Item no.
Mesh cable tray adapter for roof conductor holder	165 MBG HGRM	5218886

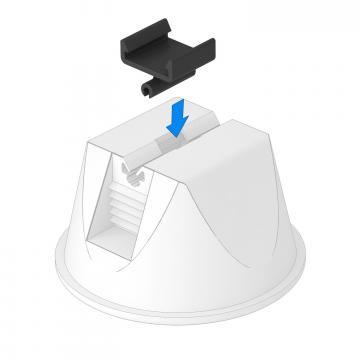

Flat conductor adapter for roof conductor holder, type 165/MBG	165 MBG HFL	5218885

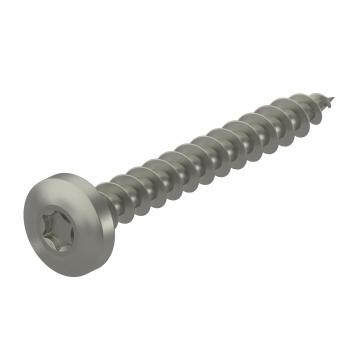

Chipboard screw, with Torx, panhead, stainless steel	OTSP 6,0x40 A4	3191032
