UniBase 6 universal stand

Name: UniBase 6 universal stand
Brand: OBO Bettermann
SKU: 5403391

Item no. 5403391 | EAN 4012197371753

Product description

Product description

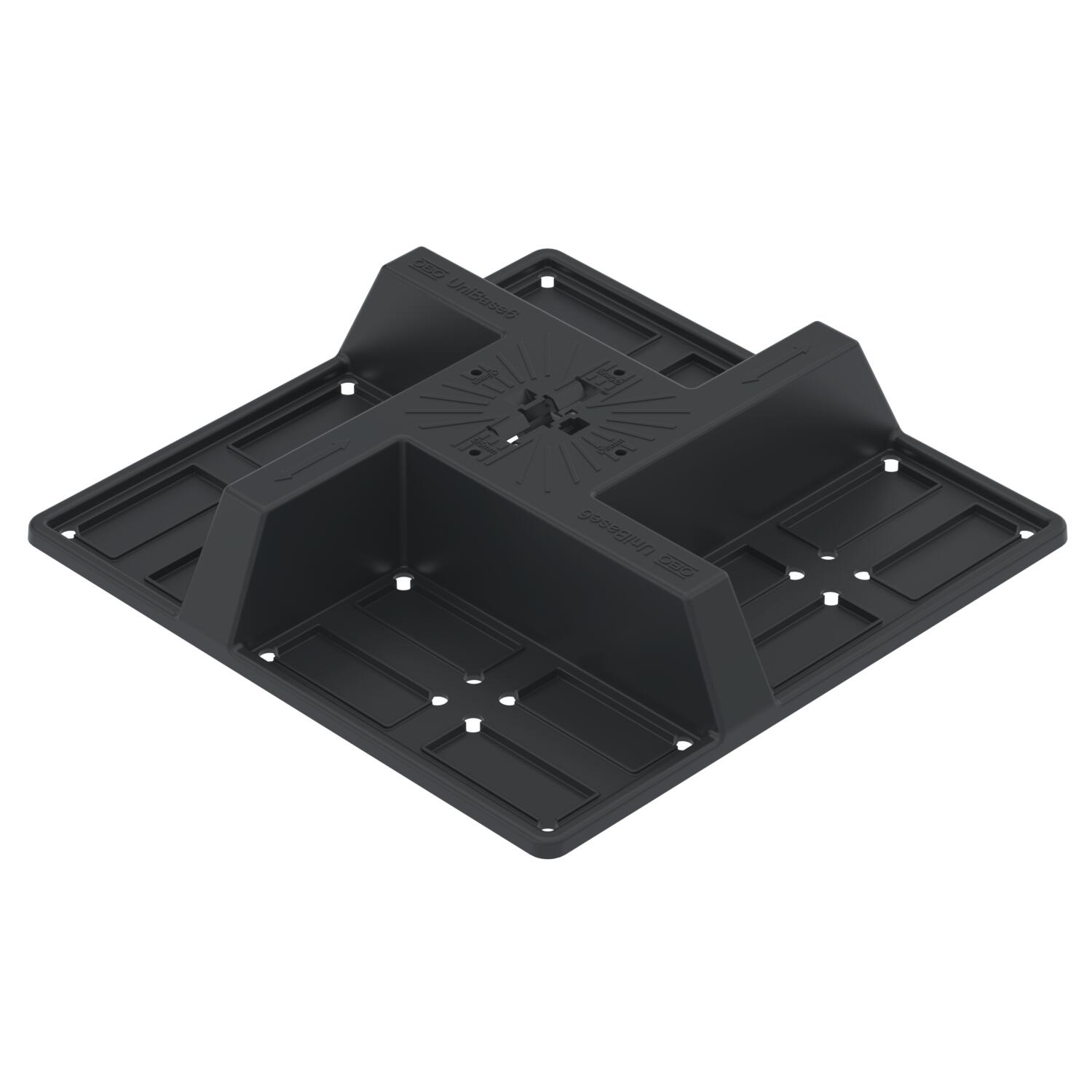

Universal stand for ballasting with standard blocks up to a dimension of 200 x 100 x 100 mm. Can be used on flat roofs, e.g. for mounting PV mounting systems or for cable routing with cable trays or with mesh cable trays in conjunction with roof cable holder 165 MBG HGRM. Blocks not contained in the scope of delivery.

Technical data

Technical data

Carrying depth for ballasting max.	200 mm
Carrying height for ballasting max.	60 mm
Carrying width for ballasting max.	100 mm
Fit	5 mm

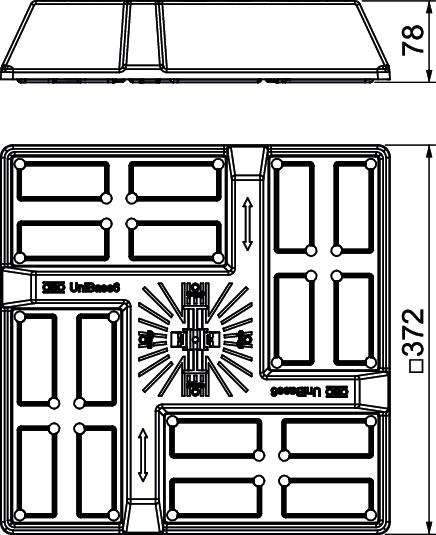

Height	78 mm

Length	372 mm
Number of carrying surfaces for ballasting	4 St.
Version for	Base
Weight	0,81 kg
Width	372 mm

All types

All types

Types		Item no.
UniBase 6		5403391

Accessories

System accessories

Products	Types	Item no.

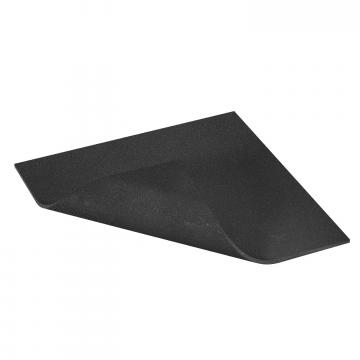

Building protection mat, flat roof	UniBase BSM	5403402

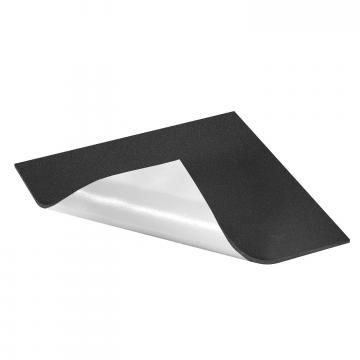

Building protection mat, flat roof, aluminium-lined	UniBase BSM ALU	5403404

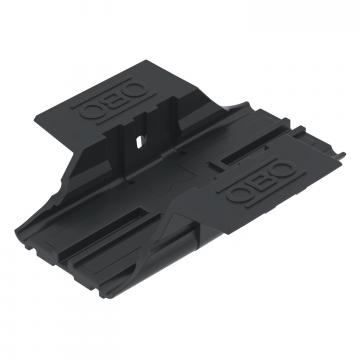

Adapter for TP 45 support profile	UniBase TMP	5403397

Mounting accessories

Products	Types	Item no.
Mesh cable tray adapter for roof conductor holder	165 MBG HGRM	5218886
Flat conductor adapter for roof conductor holder, type 165/MBG	165 MBG HFL	5218885
Chipboard screw, with Torx, panhead, stainless steel	OTSP 6,0x40 A4	3191032
