Truss-head bolt with combination nut, V2A
Item no. 3175608 | EAN 4012195849520
- Product description
-
Product descriptionTruss-head bolt with square neck and combination nut.
-
- Technical data
-
Technical data

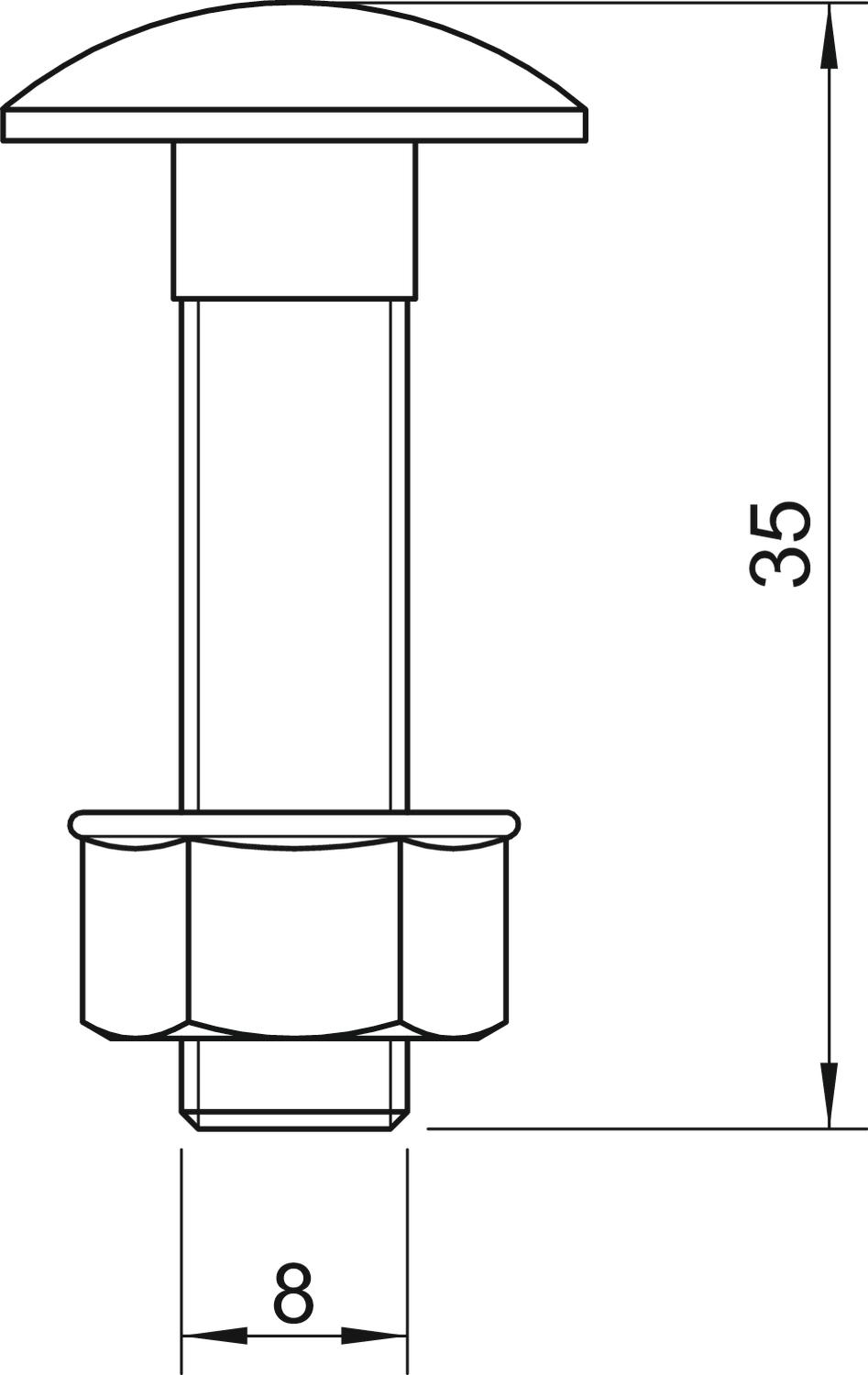

CO2 Footprint (GWP) Cradle-to-Gate 0,131 kg CO₂e / 1 Piece Dimension M8x35/35mm Dimension D 8 mm Dimension L 35 mm Full thread yes Left thread no Length 35 mm Material Stainless steel Screw system Miscellaneous Self-locking no Surface Bright, treated Thread metric 8 Thread type Metric With flange no With nut yes With washer no - All types
- Downloads
-
Data sheet FRSB M8x35 A2 / 3175608 , 0.14MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity FRSB M8x35 A2 / 3175608 , 0.12MB , pdfRoHS Declaration of conformity FRSB M8x35 A2 / 3175608 , 0.12MB , pdf
