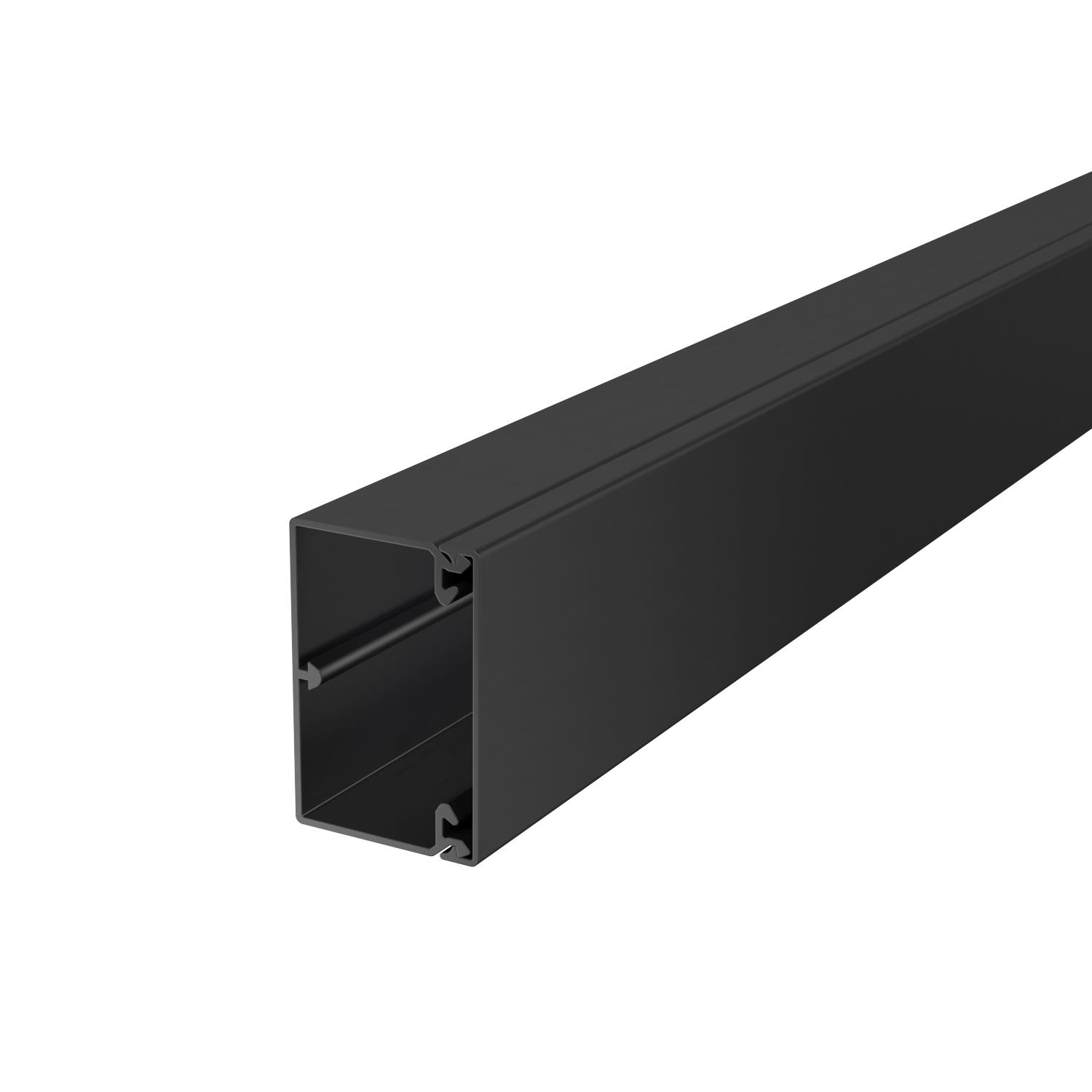

Trunking, type WDK 40060

Item no. / Types

Length	2000 mm

Width	60 mm

Height	40 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	1,1648 kg CO2e / 1 Meter
Colour	Jet black; RAL 9005
Delivery on a roll	no

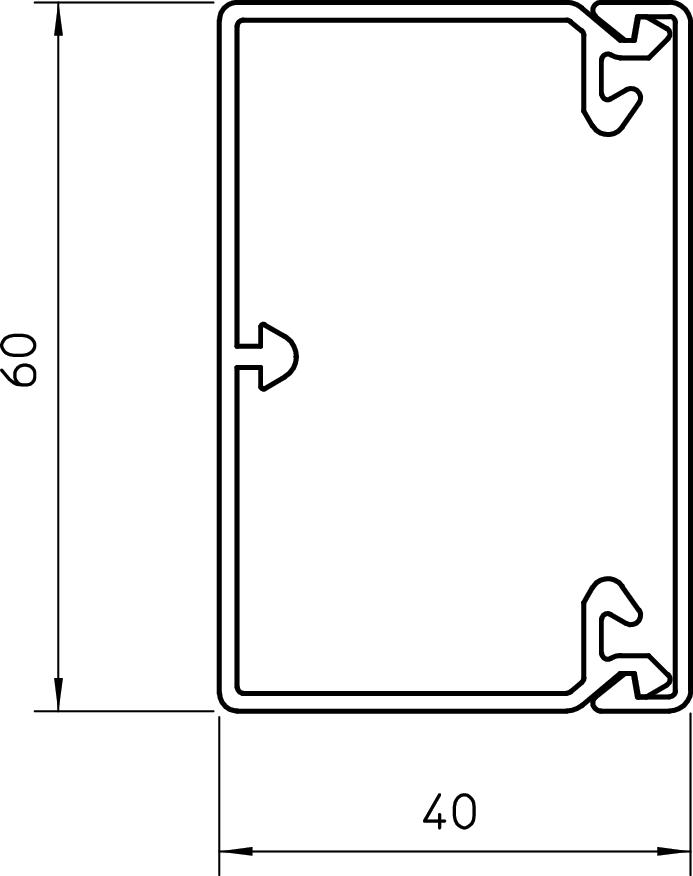

Dimension	2000x60x40
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	40 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	10
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	8
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	7
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	1775 mm²
Version, cable trunking cover	Loose
Width	60 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.
WDK40060CW	2000 mm	60 mm	40 mm	Cream; RAL 9001	6020887
WDK40060BR	2000 mm	60 mm	40 mm	Sepia brown; RAL 8014	6025617
WDK40060GR	2000 mm	60 mm	40 mm	Stone grey; RAL 7030	6025633
WDK40060SW	2000 mm	60 mm	40 mm	Jet black; RAL 9005	6025638
WDK40060LGR	2000 mm	60 mm	40 mm	Light grey; RAL 7035	6027024
WDK40060RW	2000 mm	60 mm	40 mm	Pure white; RAL 9010	6191134

Accessories

Products	Types	Item no.

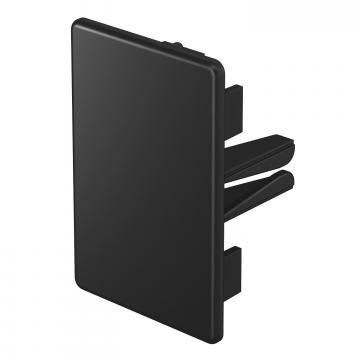

End piece, trunking type WDK 40060	WDK HE40060SW	6191810

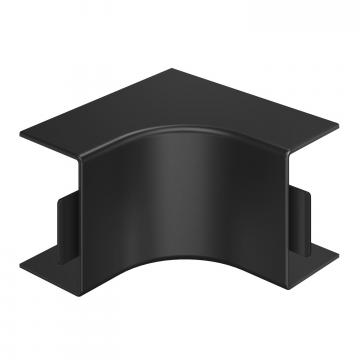

Internal corner cover, trunking type WDK 40060	WDK HI40060SW	6191762

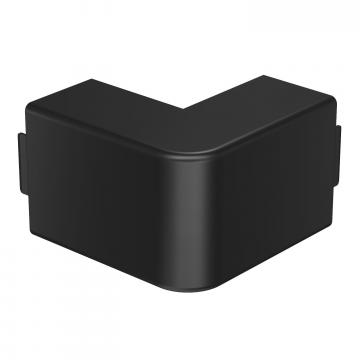

External corner cover, trunking type WDK 40060	WDK HA40060SW	6191776

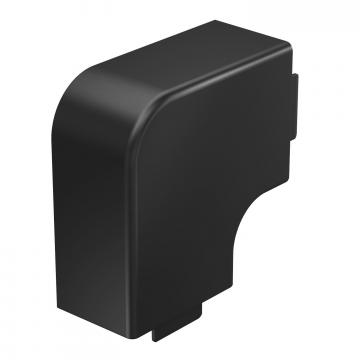

Flat angle cover, trunking type WDK 40060	WDK HF40060SW	6191792
Partition for WDK trunking, trunking height 40 mm	2371 40	6023096
Cover clip for WDK trunking, trunking width 60 mm	2370 60	6022995
