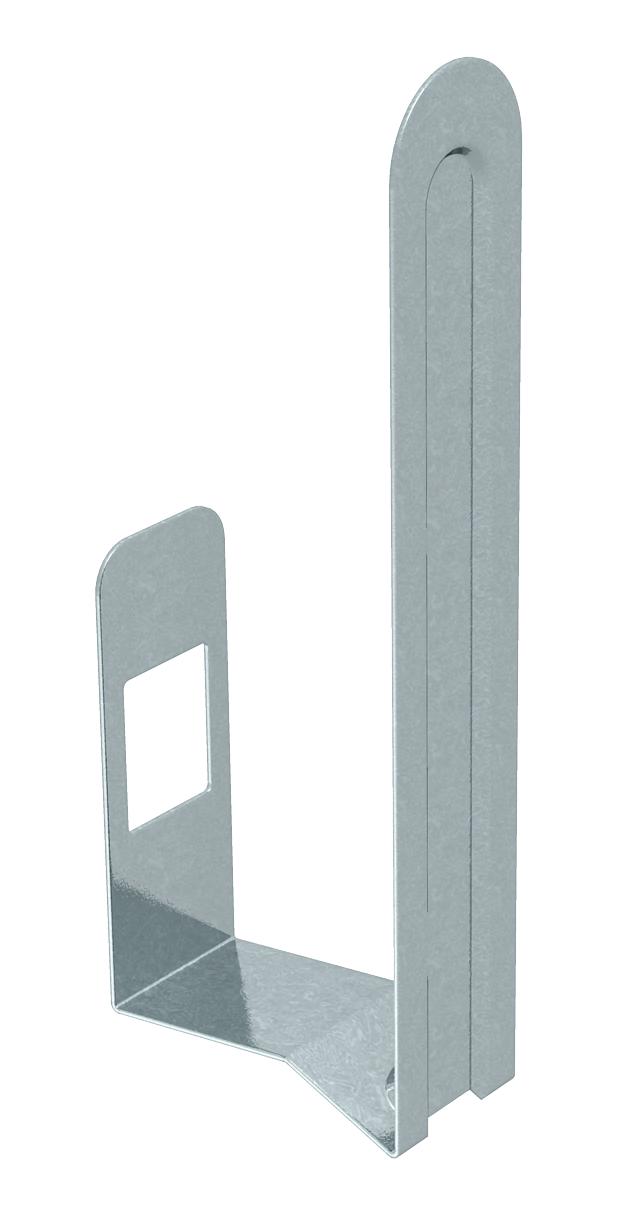

Trunking clamp, LKM, trunking width 150 and 200 mm
Item no. 6249888 | EAN 4012196119295
- Product description
-
Product descriptionThe duct clamp keeps the inserted cables in the trunking, thus simplifying installation on walls and ceilings. The duct clamps are plugged onto the loop perforation and locked on the side wall. Suitable for trunking width 150 mm and 200 mm.
-
- Technical data
-
Technical data

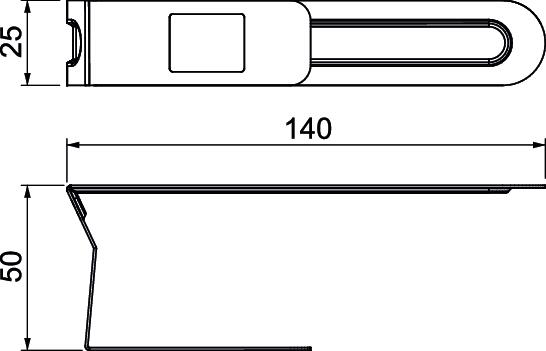

Colour zinc Cover width 150 mm Cover width 2 200 mm Dimension 140mm Dimension a 25 mm Dimension b 141 mm Dimension c 49 mm Fastening type Lockable for duct dimension 60 x 150 - 60 x 200 Halogen-free yes Height 49 mm Length 25 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Self-extinguishing no Surface galvanised, blue passivated Width 141 mm With equipotential bonding no - All types
- Downloads
-
Data sheet LKM K140 / 6249888 , 0.18MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM K140 / 6249888 , 0.10MB , pdfUK Declaration of Conformity LKM K140 / 6249888 , 0.09MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
