Traverse for Z support for BKRS

Item no. 6044434 | EAN 4012197431495

Item no. / Types

Length

Product description

Product description

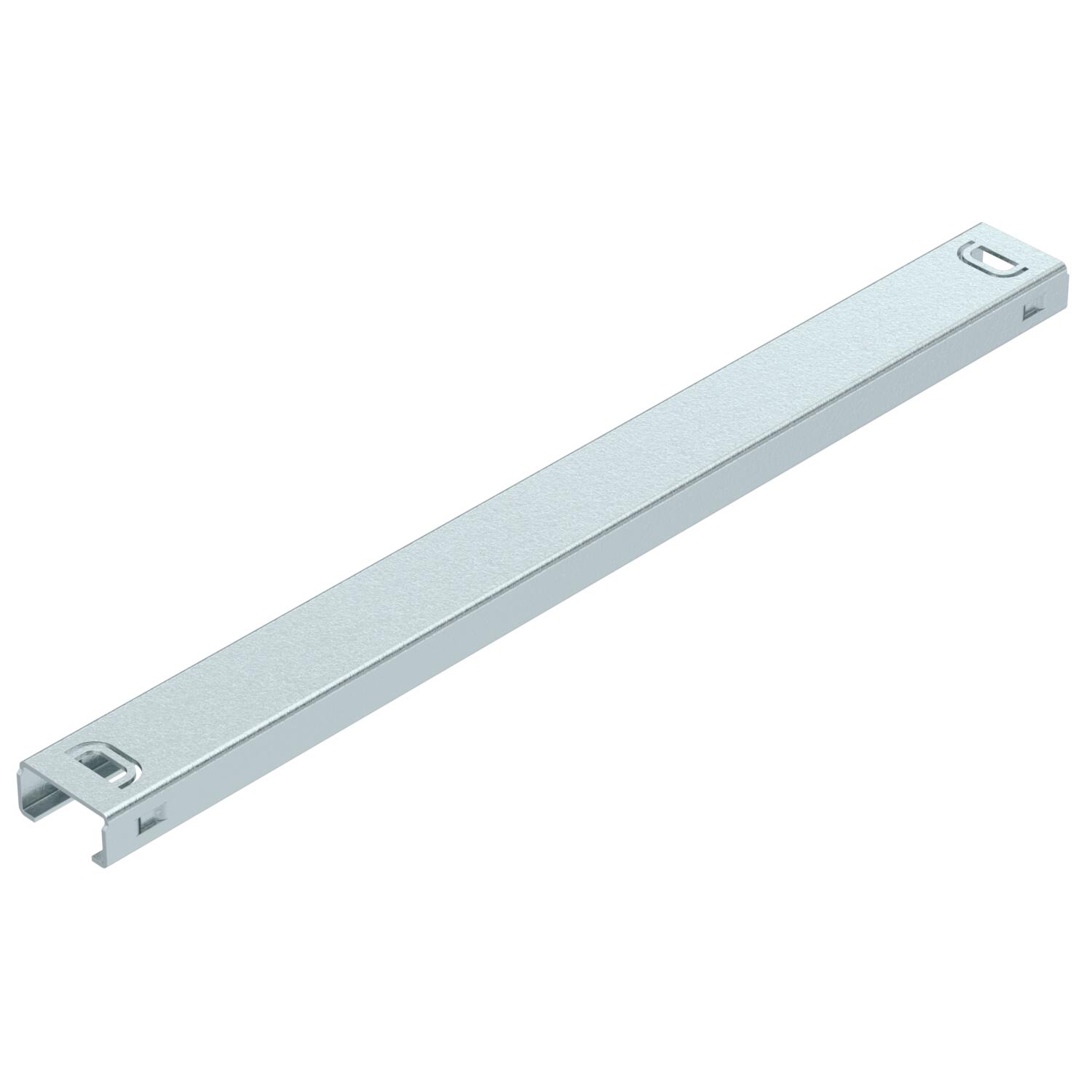

Traverse beam for Z support to support walkable cable trays and to prevent them from sagging at larger cable loads.
Mounting of cable trays with flat-head screw FKS 6 x 12 mm (item no. 6049246) in M6 threaded hole of the Z support.

Technical data

Technical data

Colour	zinc

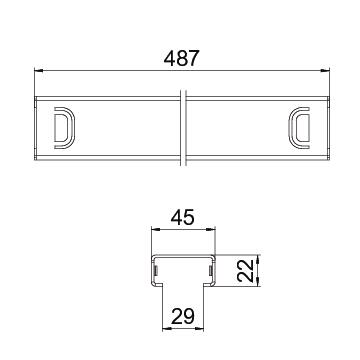

Dimension	45x487x22
Height	22 mm
Length	487 mm

Material	Steel
Plate thickness	2 mm
Surface	Strip galvanized
Width	45 mm

All types

All types

Types	Length	Item no.
TRV ZST 100 FS	87 mm	6044423
TRV ZST 200 FS	187 mm	6044426
TRV ZST 300 FS	287 mm	6044429
TRV ZST 400 FS	387 mm	6044431
TRV ZST 500 FS	487 mm	6044434
TRV ZST 600 FS	587 mm	6044437
