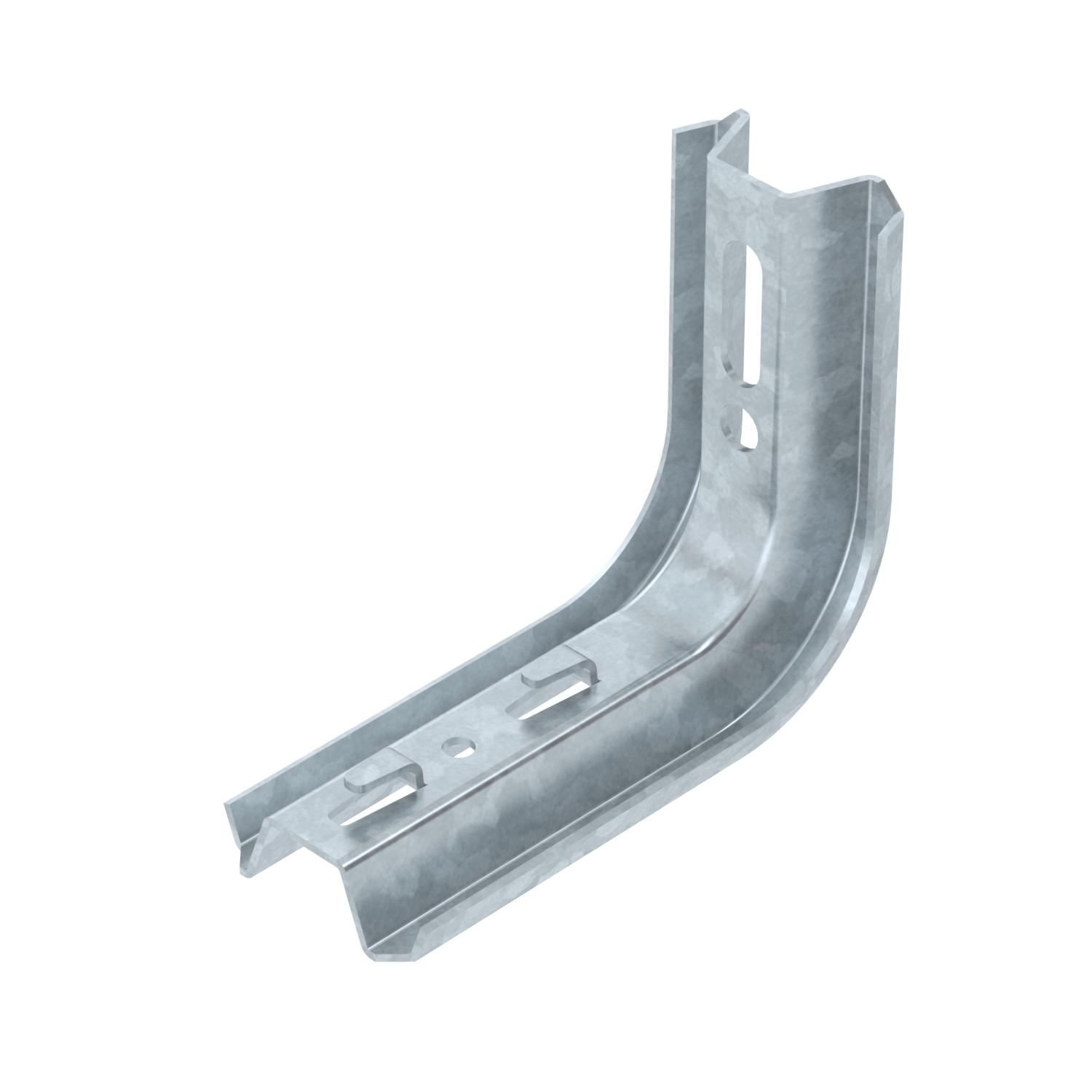

TP support / wall and support bracket FT
Item no. 6366131 | EAN 4012195076957
- Product description
-
Product descriptionTP bracket with clamping lugs.
-
- Technical data
-
Technical data

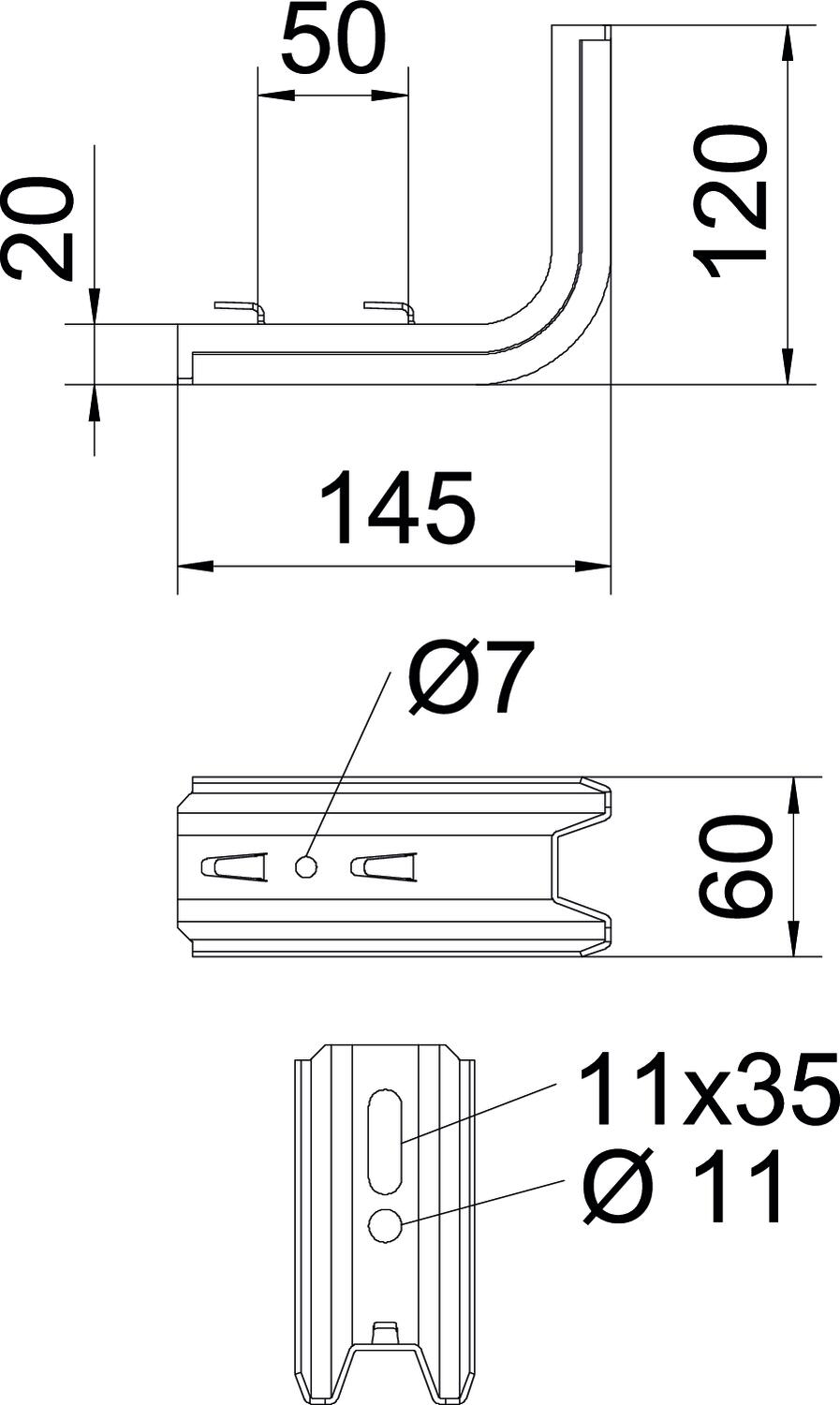

Colour zinc Dimension B145mm Dimension B 60 mm Dimension H 120 mm Dimension L 145 mm F in kN 1,5 kN for width max. 100 mm for width min. 100 Height 60 mm Length 145 mm Maintain electrical functions no Maß W 50 mm Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 120 mm Technical data

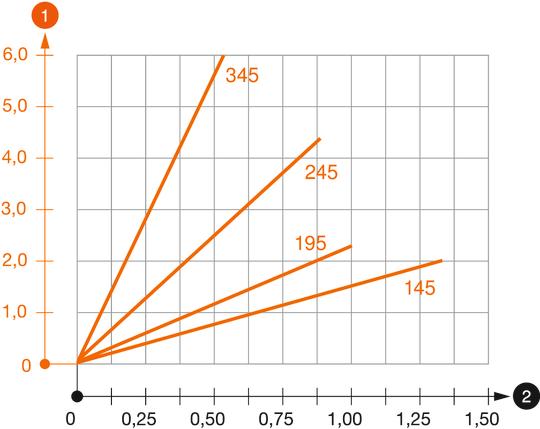

Load diagram, bracket, type TPSAG
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Support width in m
-
- All types
- Downloads
-
Data sheet TPSAG 145 FT / 6366131 , 0.32MB , pdfEU declaration of conformity TPSAG 145 FT / 6366131 , 0.10MB , pdfEnvironmental Product Declaration (EPD) TPSAG 145 FT / 6366131 , 1.48MB , pdfUK Declaration of Conformity TPSAG 145 FT / 6366131 , 0.09MB , pdfREACH Declaration of conformity TPSAG 145 FT / 6366131 , 0.12MB , pdfRoHS Declaration of conformity TPSAG 145 FT / 6366131 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf

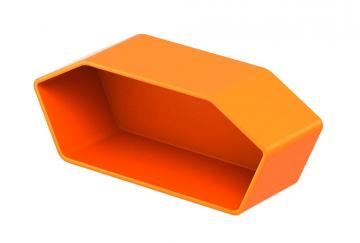

End cap
