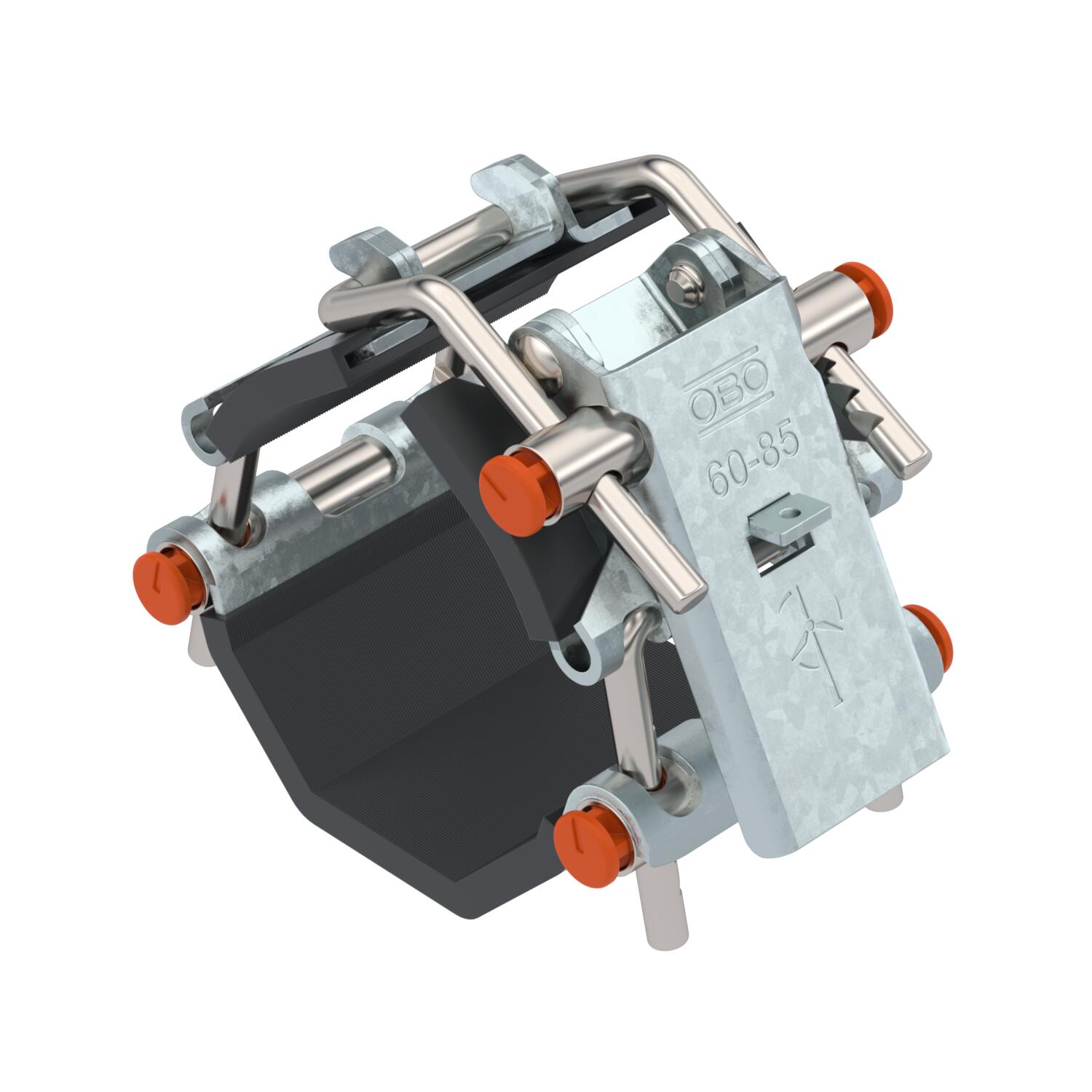

Toolless cable clip, cable diameter 60–85 mm

Item no. 1198660 | EAN 4012197432096

1198660 / WLKS 60-85
60 mm
85 mm
Product description
Product description
Cable clip for the mounting of cables with a large diameter of 60 mm to 85 mm. The diameter can be adjusted without tools. Fastening on a profile rail with hammer-head bolt, washer and nut. Maximum axial load capacity of 150 kg. Application in a temperature range of –40 °C to +90 °C.
  • Communautés Européennes, EC declaration of conformity according to EC directives

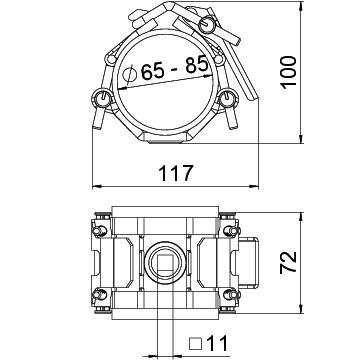

Technical data

Technical data

Cable diameter, max. 85 mm
Cable diameter, min. 60 mm
Clamping range D, max. 85 mm
Clamping range D, min. 60 mm
Dimension 60-85
For pipe diameter, max. 85 mm
For pipe diameter, min. 60 mm
Height 110 mm
Length 125 mm
Mounting type Profile rail
Number of cables/pipes 1
Plate thickness 2 mm
Width 72 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Item no.
WLKS 60-85 60 mm 85 mm 1198660
