Tilting anchor 100 | 13 | 0.5 | M4

morepic-1

morepic-2

morepic-3

Tilting anchor

Item no. 3482154 | EAN 4012195310990

Item no. / Types

Length	100 mm

Drill hole diameter, min.

Breaking load

Thread

Product description

Product description

Two washers and two hexagonal nuts, with threaded shank.

Technical data

Technical data

Breaking load	0,5 kN
CO2 Footprint (GWP) Cradle-to-Gate	0,0773 kg CO₂e / 1 Piece
Dimension	M4x100mm
Drill hole diameter, min.	13 mm
Length	100 mm
Material	Steel

Surface	Electrogalvanized
Thread	M4
Thread type	Metric
Version for	With threaded shaft
With washer	yes

All types

All types

Types	Length	Drill hole diameter, min.	Breaking load	Thread	Item no.
453 M6x100 G	100 mm	16 mm	0.7 kN	M6	3482014
456 M5x100 G	100 mm	13 mm	0.7 kN	M5	3482103
458 M4x100 G	100 mm	13 mm	0.5 kN	M4	3482154

Downloads

Data sheet 458 M4x100 G / 3482154 , 0.16MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 458 M4x100 G / 3482154 , 0.04MB , pdf

Download

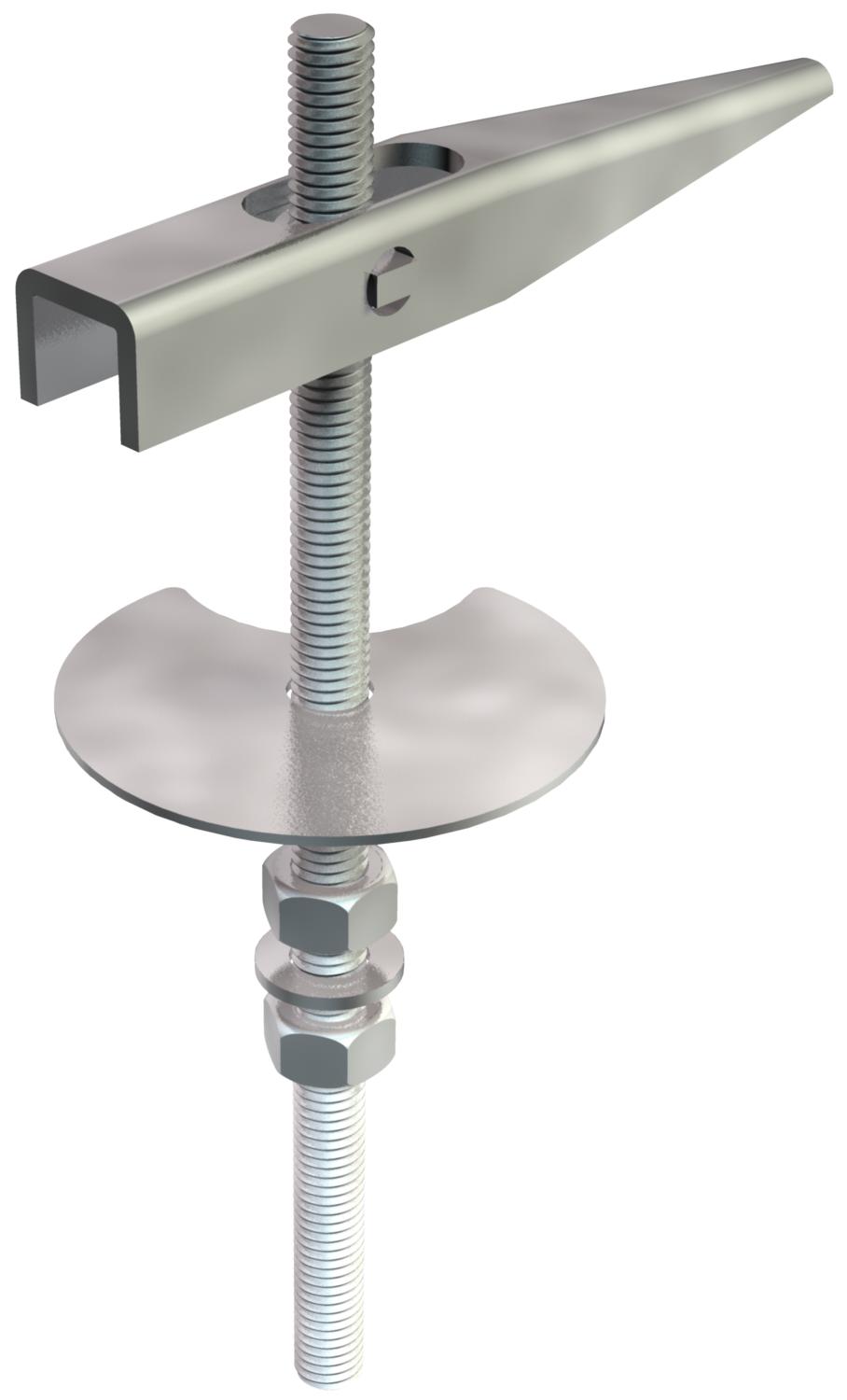

Product graphic 458 M4x100 G / 3482154, 52.42 kB, jpg

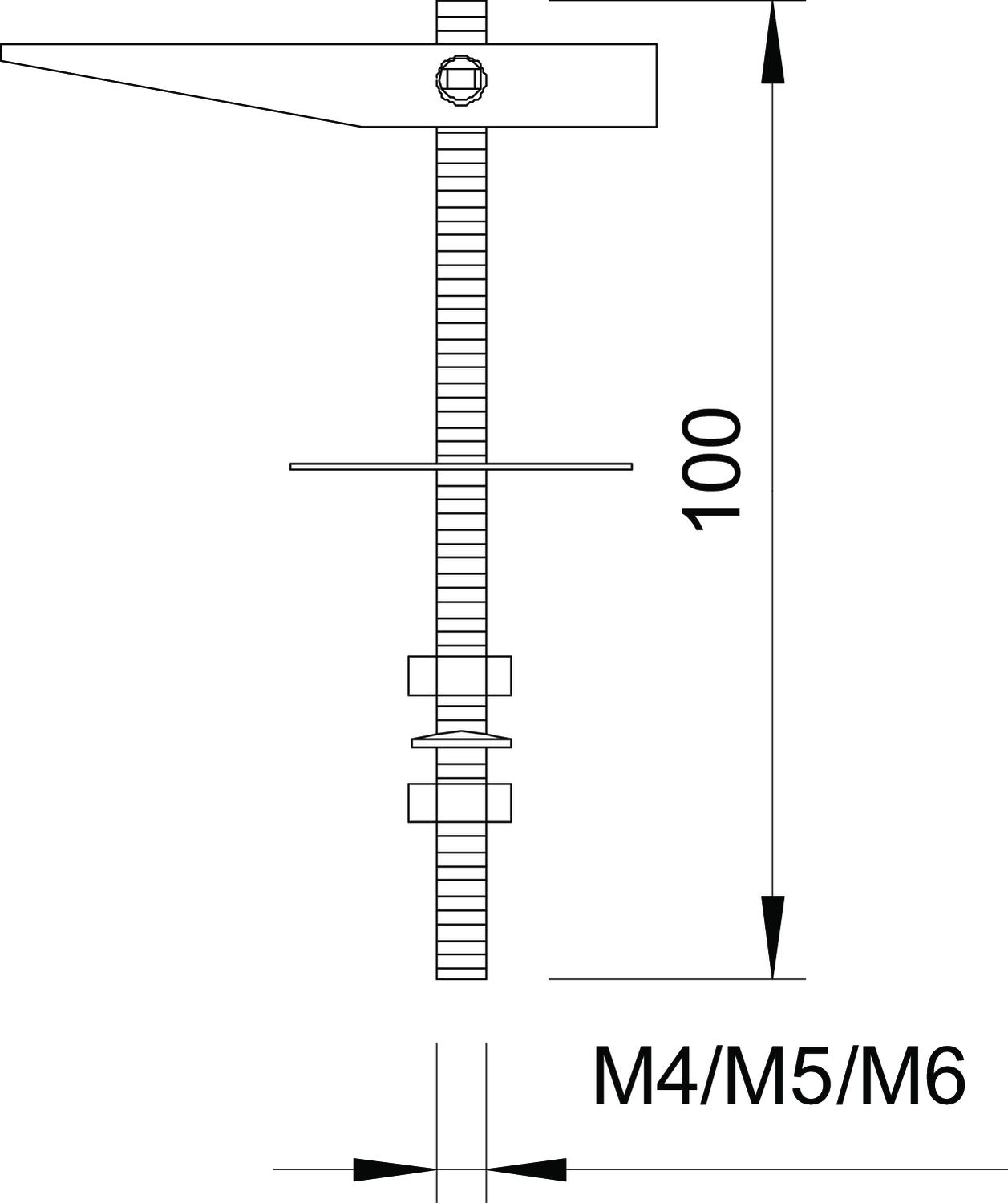

Scale drawing 458 M4x100 G / 3482154, 55.03 kB, jpg

458 M4x100 G / 3482154
