Terminal for FangFix system
Item no. 5403219 | EAN 4012195548775
- Product description
-

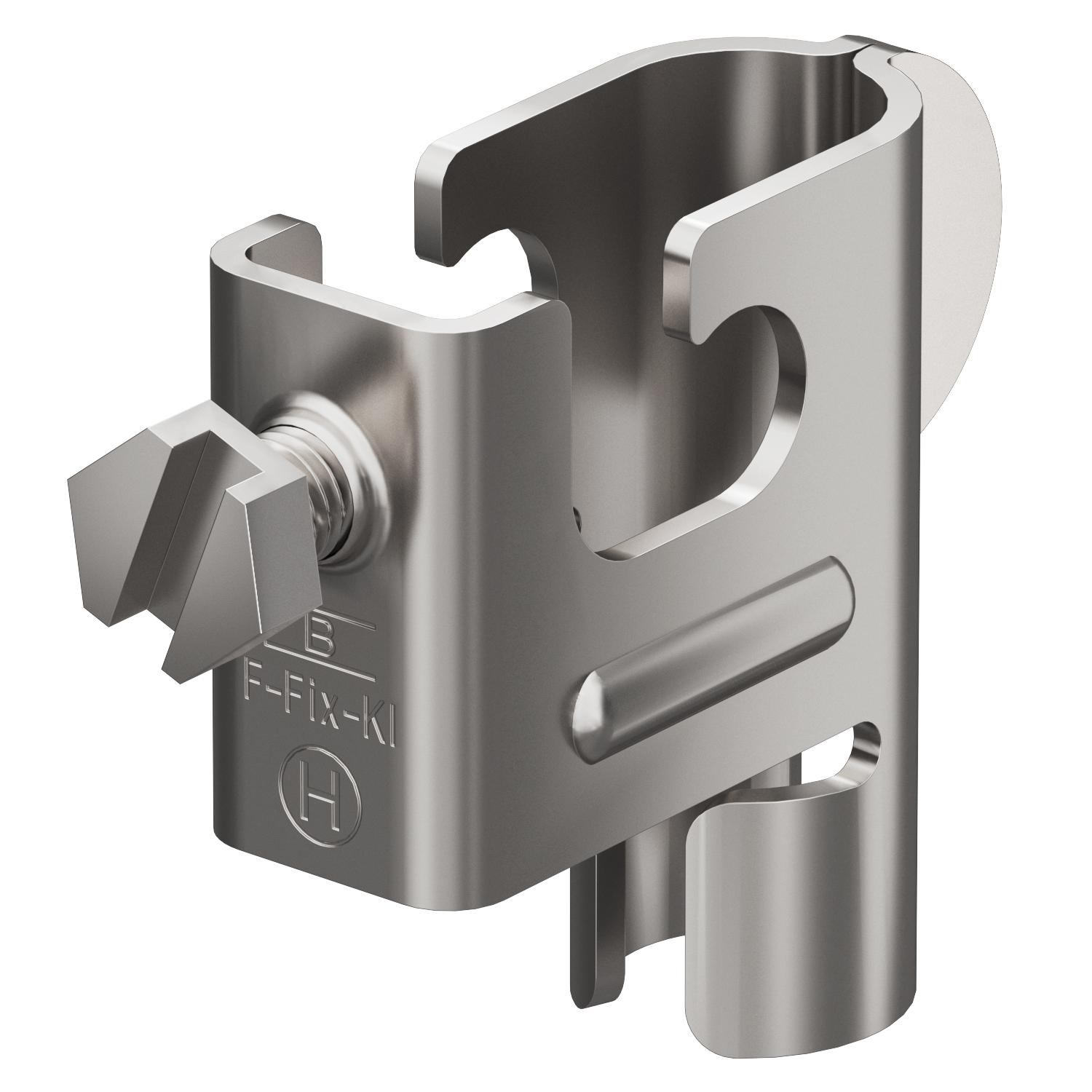

Product description• FangFix terminal, VA for RD 8 mm
• Tested with H (0185 kA) to DIN EN 305-62305
• Round conductor installed on the air-termination rod with only one screw
• Suitable for Ø 16 mm pipe air-termination rods
-
- Technical data
-
Technical data

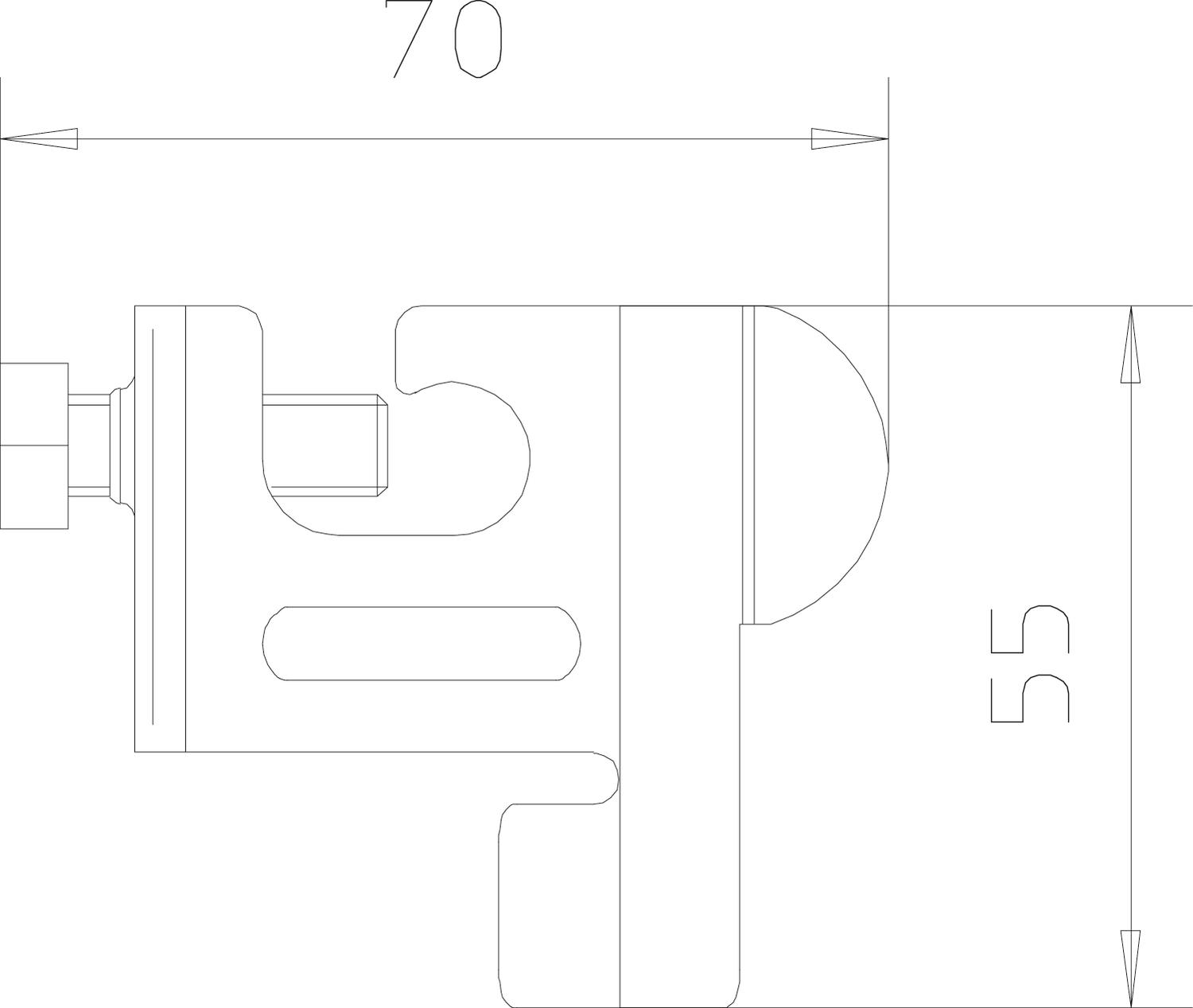

CO2 Footprint (GWP) Cradle-to-Gate 0,6674 kg CO2e / 1 Piece Dimension RD8 Fit Rd 8 mm Height 55 mm Length 55 mm Material Stainless steel Width 70 mm - All types
- Downloads
-
Data sheet F-FIX-KL / 5403219 , 0.22MB , pdfEU declaration of conformity F-FIX-KL / 5403219 , 0.06MB , pdfREACH Declaration of conformity F-FIX-KL / 5403219 , 0.12MB , pdfRoHS Declaration of conformity F-FIX-KL / 5403219 , 0.13MB , pdf
