Tensioning wire clip, polystyrene | | | | M4x13 | Polystyrene |
morepic-1 morepic-2 morepic-3

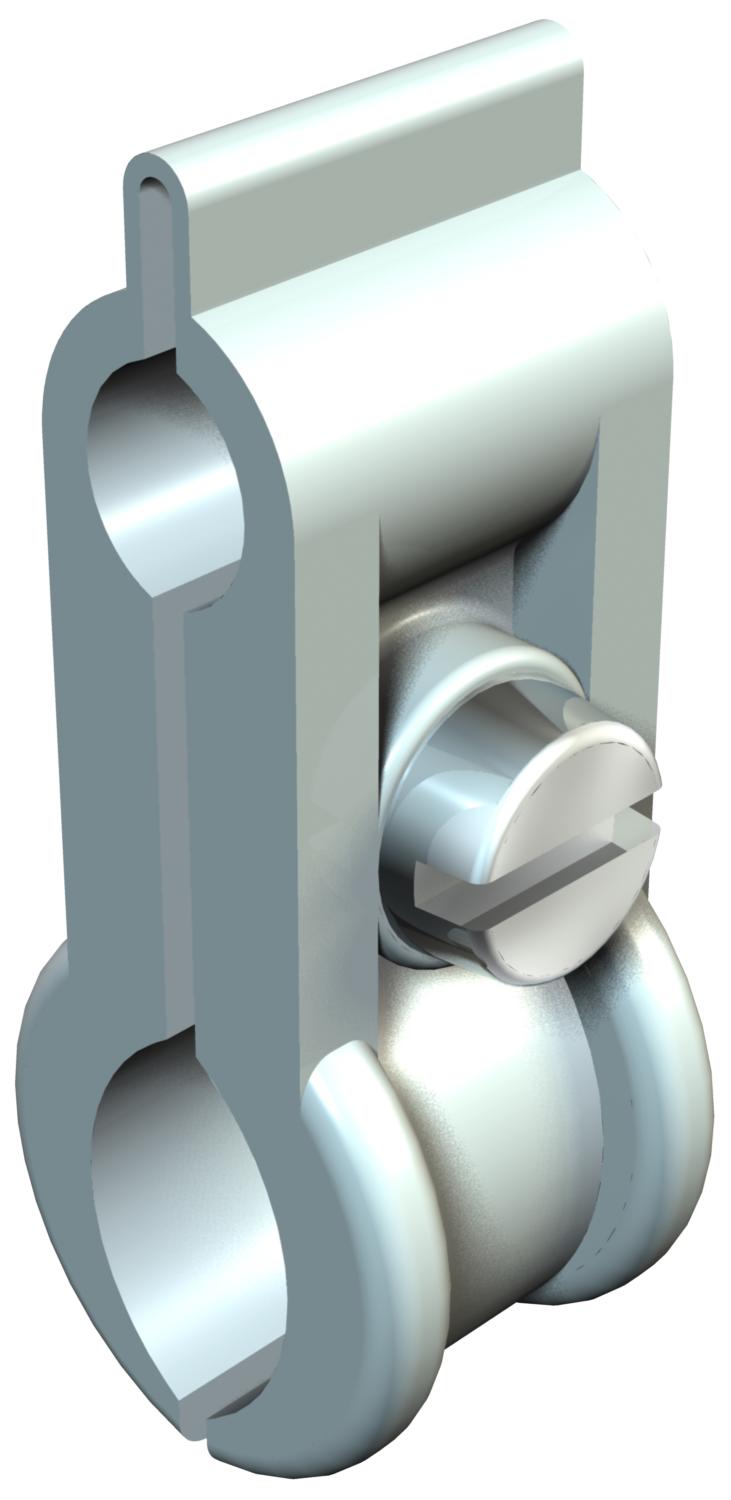

Tensioning wire clip, polystyrene

Item no. 2305151 | EAN 4012195224297

Polystyrene
Product description
Product description
Bolt, steel, electrogalvanised, light grey.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M4x13
CO2 Footprint (GWP) Cradle-to-Gate 0,0153 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035

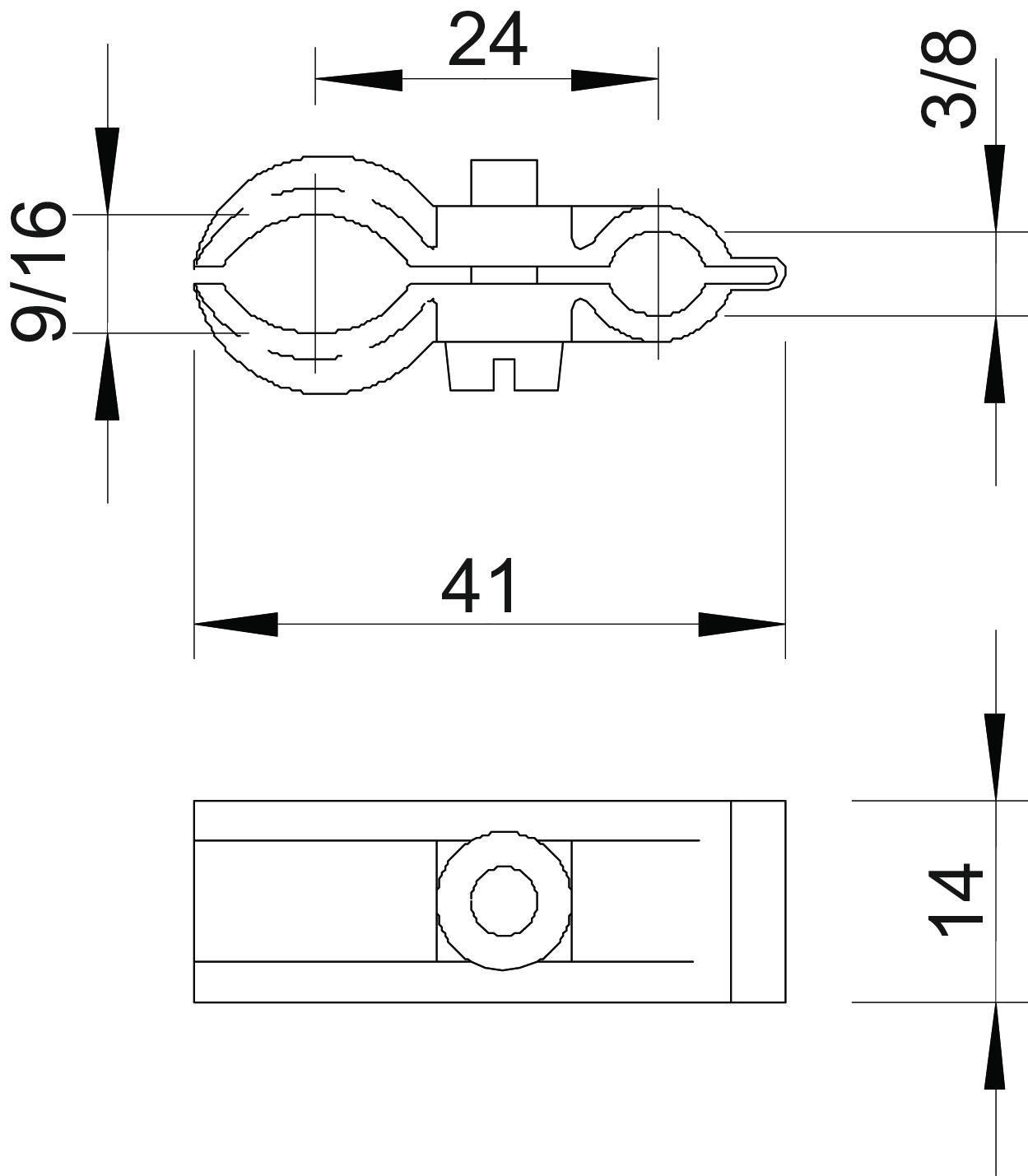

Dimension 9-16mm
Dimension A 41 mm
Dimension b 14 mm
Dimension B 24 mm
Halogen-free yes
Material Polystyrene
Number of cables/pipes 1
Version for Not insulated
All types

All types

Types Bolt Material Item no.
4024 9-16 M4x13 Polystyrene 2305151
4024 16-23 M5x20 Polystyrene 2305232
