Tension jack A4

Item no. 5300132 | EAN 4012195901204

Item no. / Types

Dimension A

Dimension B

Dimension C

Breaking load

Thread

Product description

Product description

With hook and eye, to DIN 1480.

Technical data

Technical data

Breaking load	10 kN
CO2 Footprint (GWP) Cradle-to-Gate	4,7751 kg CO2e / 1 Piece
Diameter, interior	22/19 mm
Dimension	M16
Dimension A	22 mm
Dimension B	19 mm

Dimension C	170 mm
Length of clamping nut C	170 mm
Material	Stainless steel
Span width	110 mm
Surface	Bright, treated
Thread	M16

All types

All types

Types	Dimension A	Dimension B	Dimension C	Breaking load	Thread	Item no.
945 M6 A4	9 mm	8.5 mm	110 mm	2 kN	M6	5300120
945 M10 A4	14 mm	13.5 mm	125 mm	5 kN	M10	5300124
945 M12 A4	16 mm	15.5 mm	125 mm	8 kN	M12	5300127
945 M16 A4	22 mm	19 mm	170 mm	10 kN	M16	5300132

Downloads

Data sheet 945 M16 A4 / 5300132 , 0.16MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

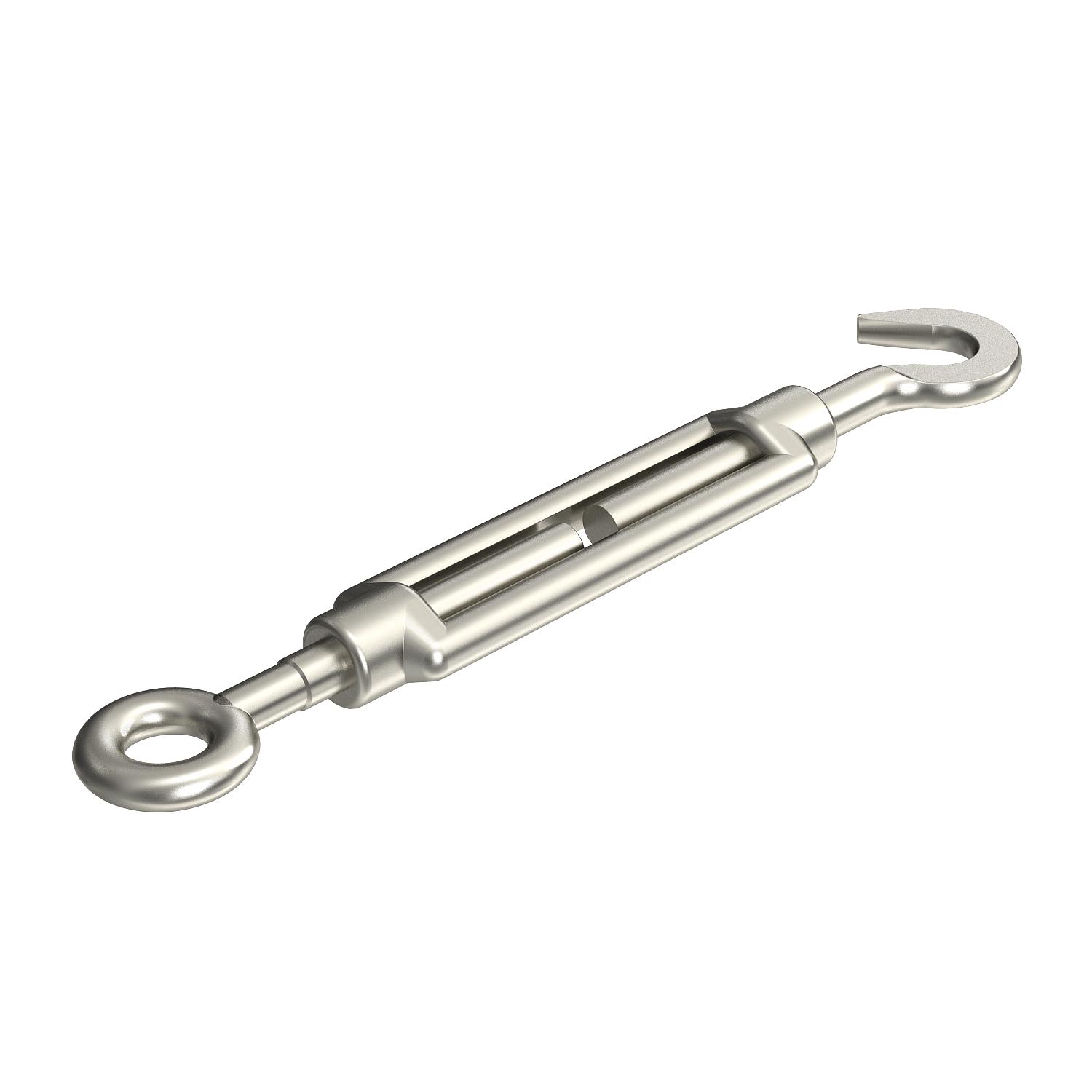

Product graphic 945 M16 A4 / 5300132, 55.41 kB, jpg

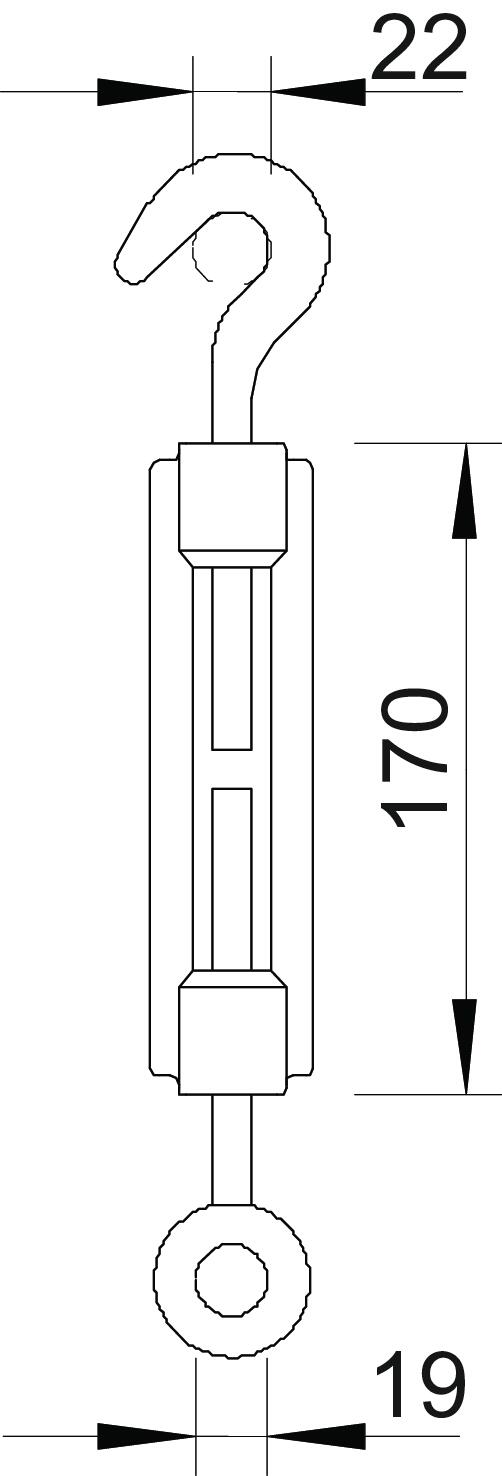

Scale drawing 945 M16 A4 / 5300132, 37.20 kB, jpg

945 M16 A4 / 5300132
