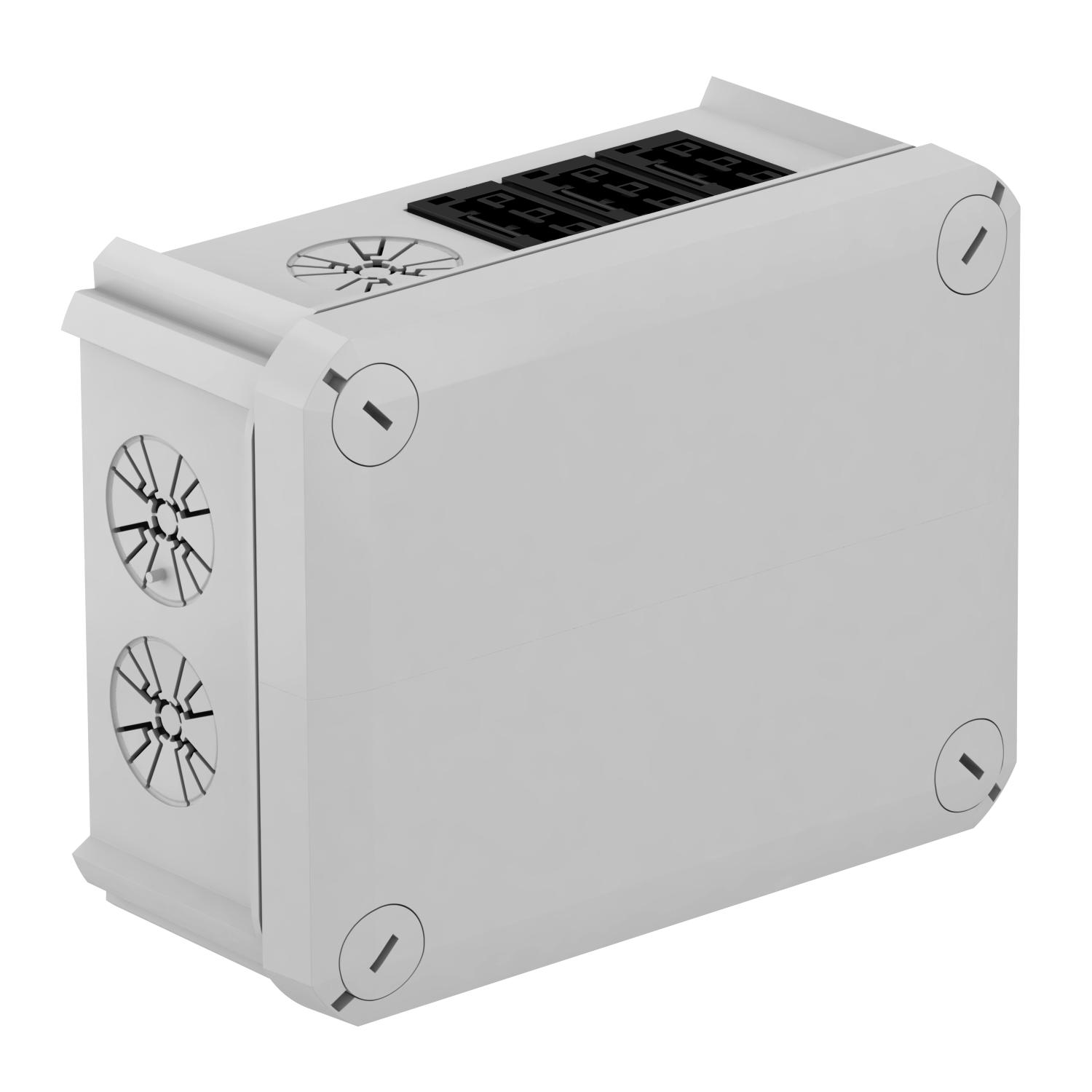

T100 junction box, WAGO, single-phase 136x102x57 | 4 | IP20 | Light grey; RAL 7035

T100 junction box, WAGO, single-phase

Item no. 2007790 | EAN 4012196625246

Item no. / Types	2007790 / T 100 WWB 6SW

Clear internal dimensions	136x102x57 mm

No. of entries	4

Protection rating	IP20

Colour	Light grey; RAL 7035

Product description

Product description

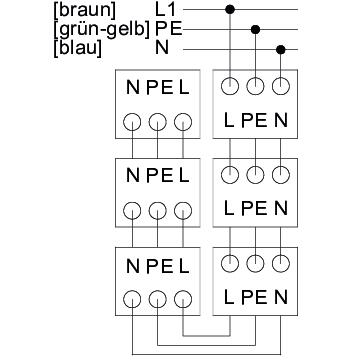

Junction box with WAGO sockets, 3-pin. 6x black for the connection of cables indoors and in protected outdoor areas. Rectangular design with knock-out entries to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C.
Clear internal dimensions: 136x102x57 mm

Technical data

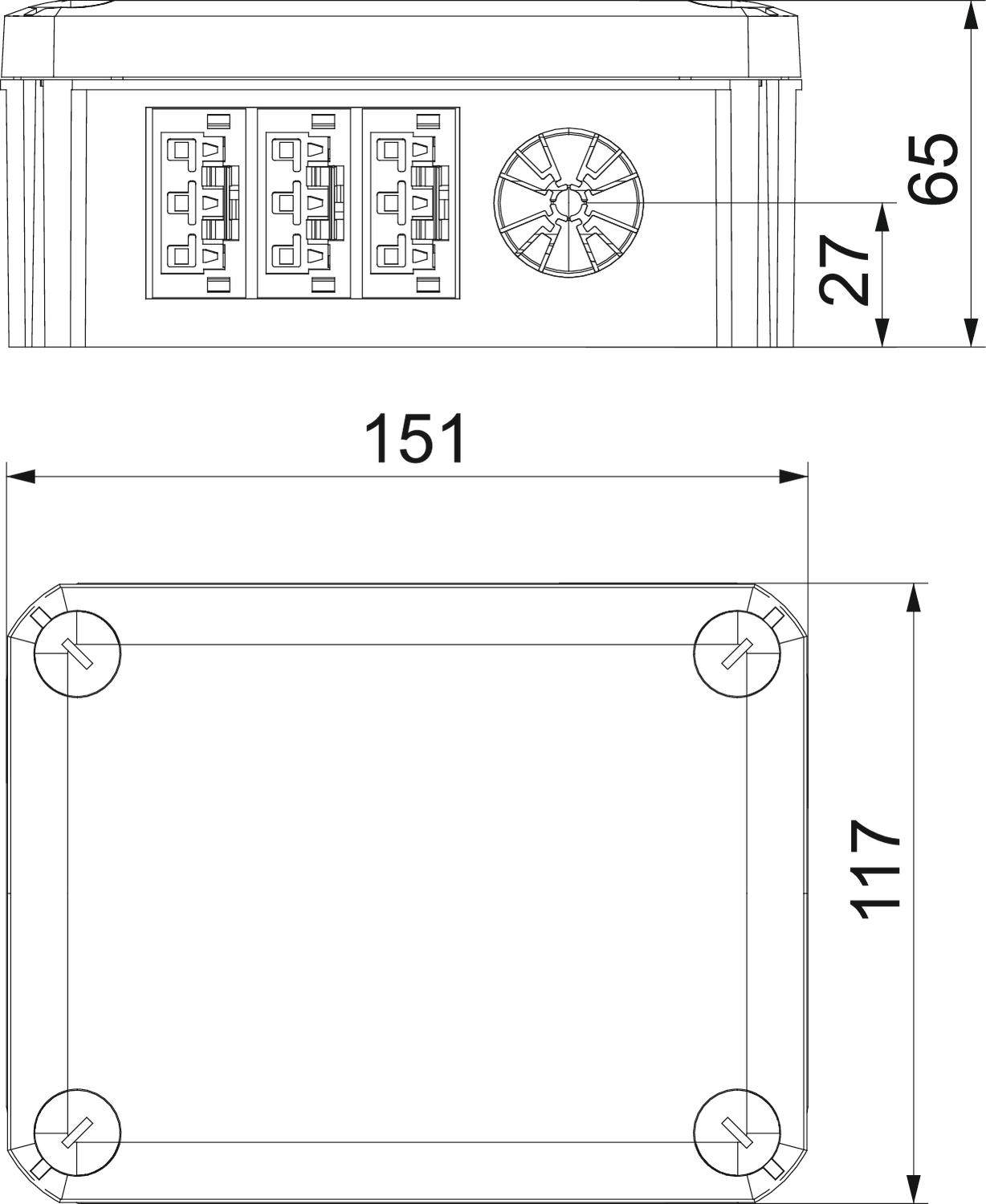

Dimensions

Clear internal dimensions	136x102x57 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,7141 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035
Cover	Not transparent
Cover fastening	Screwed
Dimension	150x116x67
Entries	4
Equipment	Miscellaneous
Expandable	yes
Explosion-tested version	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	67 mm
Length	150 mm

Material	Polypropylene
Measured insulation voltage Vi	500 V
No. of entries	4
Nominal cross-section, min.	2,5 mm²
Nominal voltage	500 V
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP20
Sealable	yes
Shape	Rectangular
Transparent lid	no
Type of entry	Strain relief entries for direct penetrations for cable diameters of 7−21 mm
Type of housing penetration	Pre-marking
Weatherproof	no
Width	116 mm
with lid	yes
With screening	no
