T piece cover, for trunking type WDK 13025 | | | Oyster white; RAL 1013
morepic-1 morepic-2

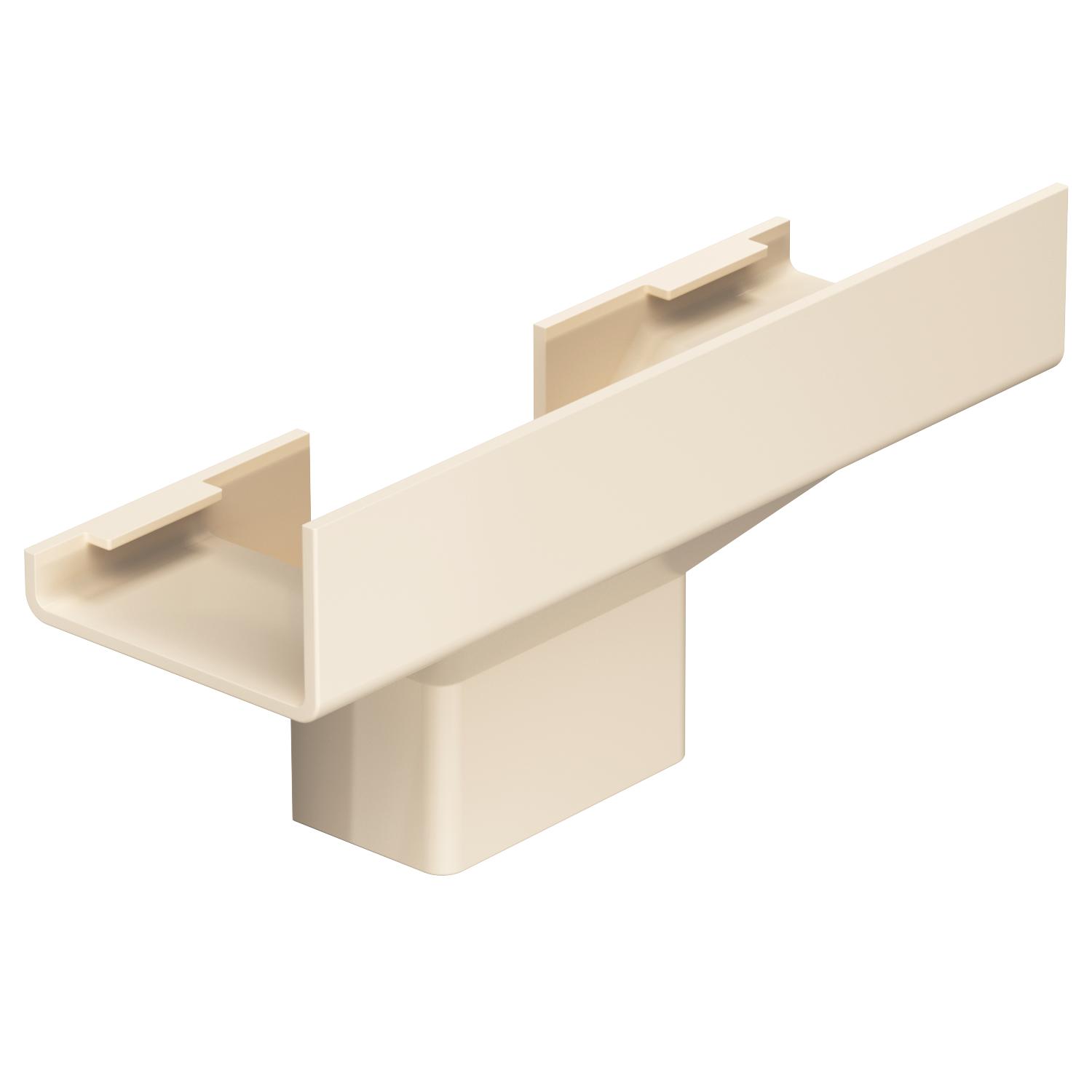

T piece cover, for trunking type WDK 13025

Item no. 6192448 | EAN 4012195959137

Product description
Product description
T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Oyster white; RAL 1013

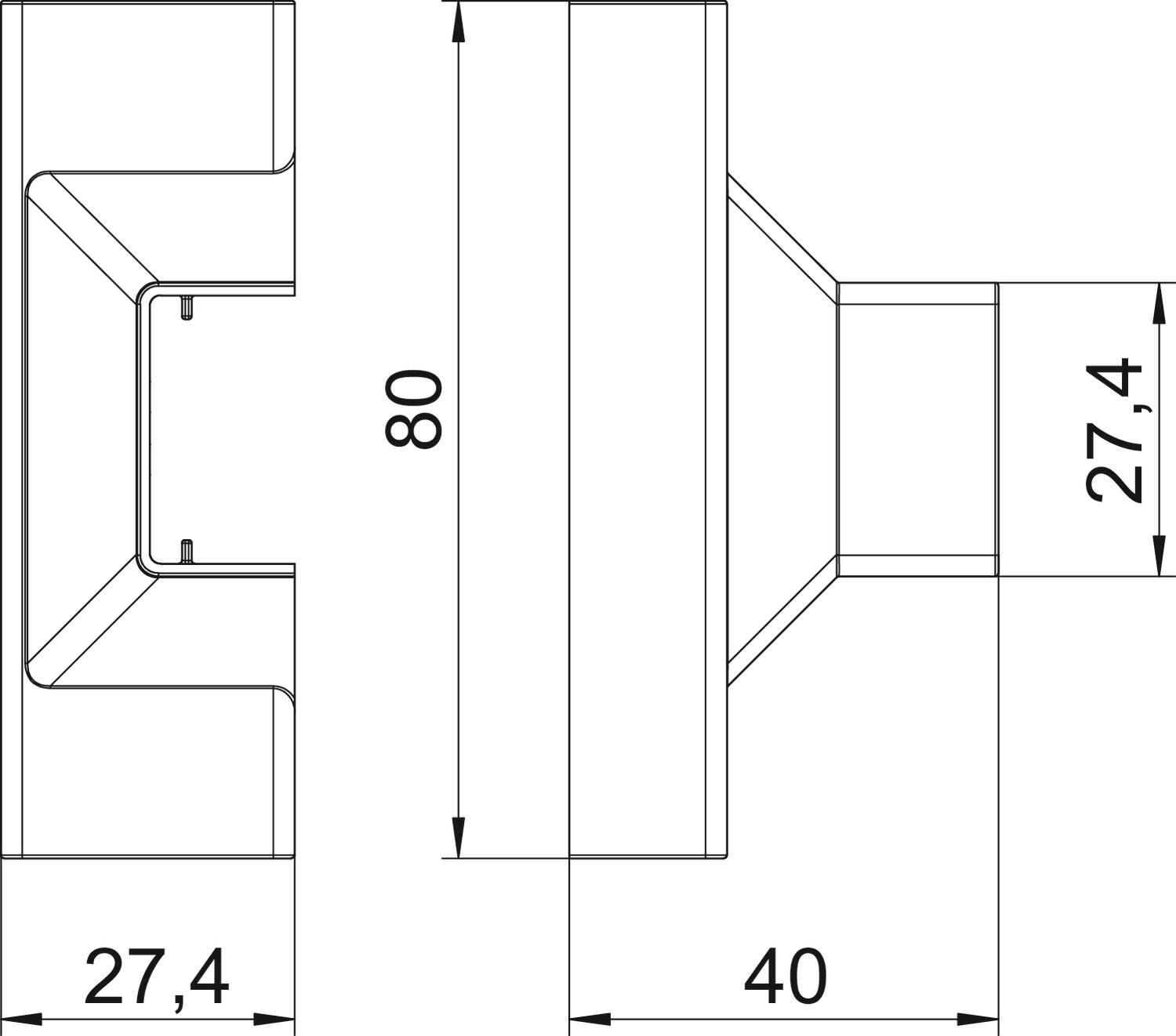

Dimension 15x80x40mm
Fastening type Lockable
Halogen-free no
Height 13 mm
Length 80 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Hood fitting
Width 25 mm
All types

All types

Types Colour Item no.
WDK HTCW13025PW Oyster white; RAL 1013 6192448
WDK HTCW13025RW Pure white; RAL 9010 6192450
