T piece 60 FT
Item no. 6213872 | EAN 4012196685790
- Product description
-

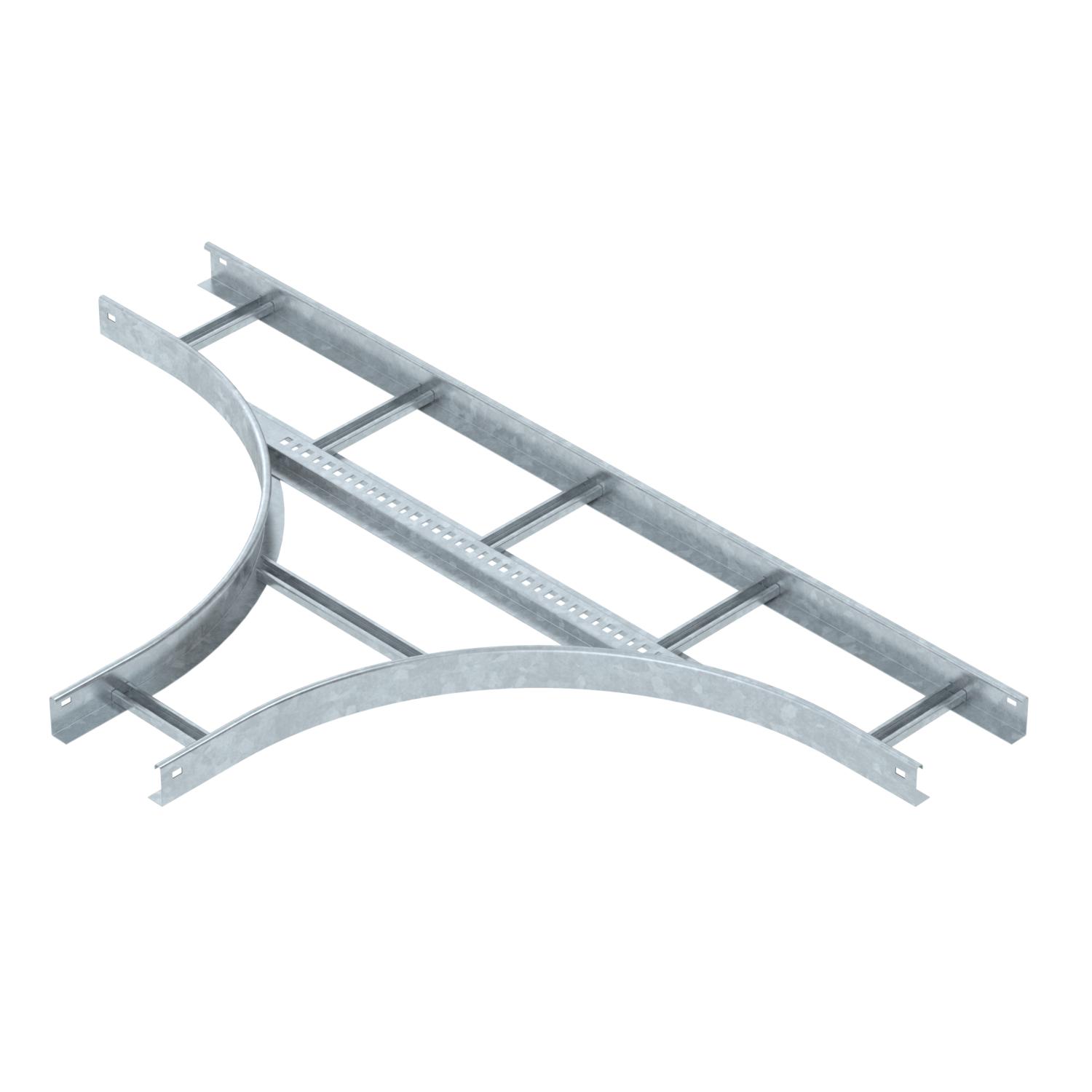

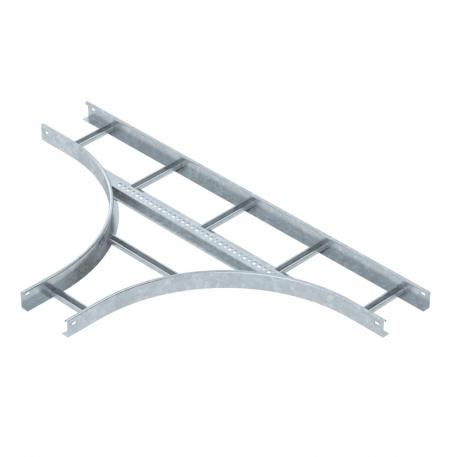

Product descriptionT piece, horizontal, for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data

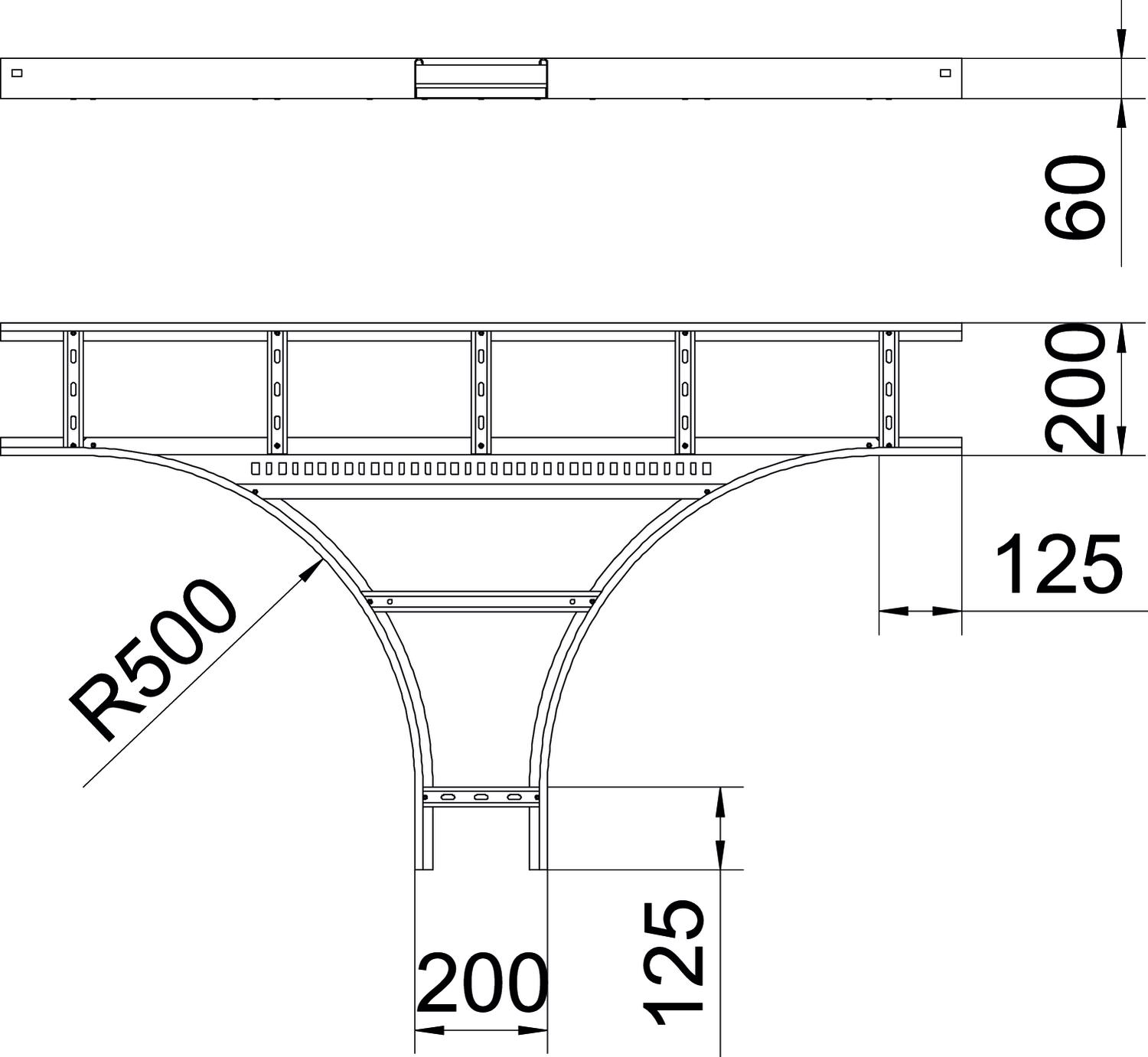

Colour zinc Dimension 60x200 Dimension B 200 mm Dimension R 500 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FT
LVG 60 FT 6208843 - Downloads
-
