T piece 110 FT
Item no. 6219402 | EAN 4012196686018
- Product description
-

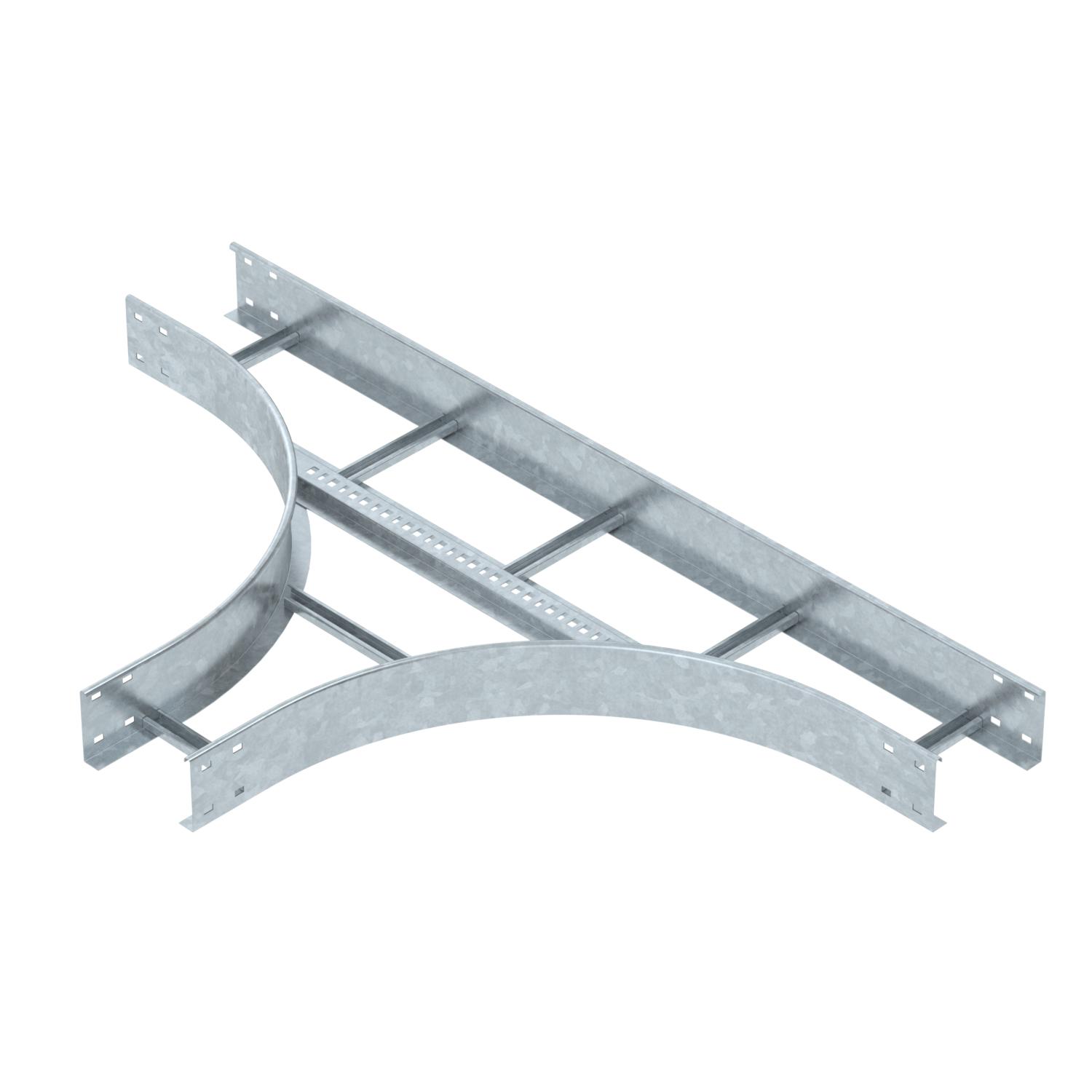

Product descriptionT piece to create a horizontal branch, fittings for cable ladders of side height110 mm. With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data

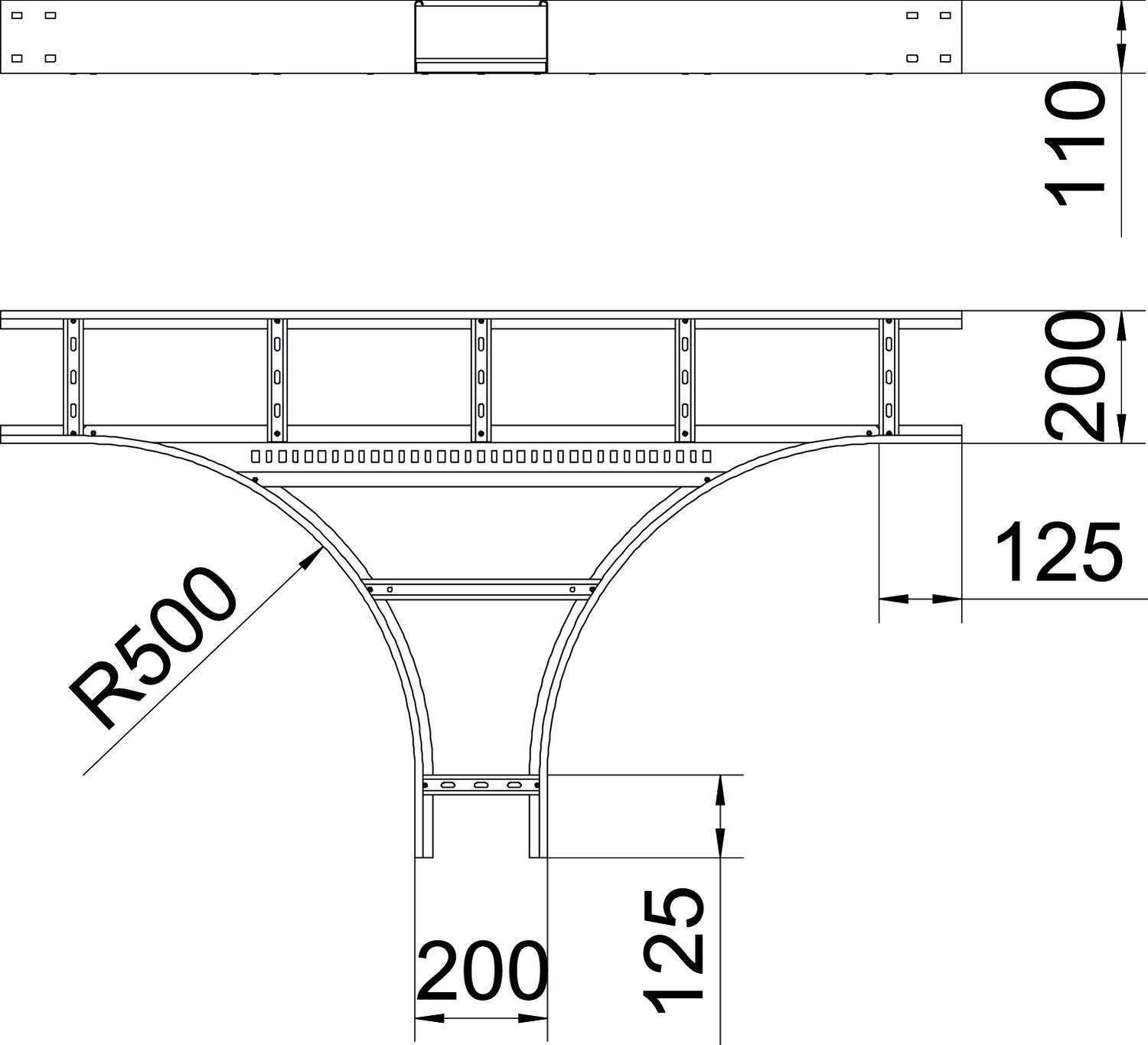

Colour zinc Dimension 110x200 Dimension B 200 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FT
LVG 110 FT 6216548 - Downloads
-
