T piece 110 FT
Item no. 6225350 | EAN 4012196444526
- Product description
-

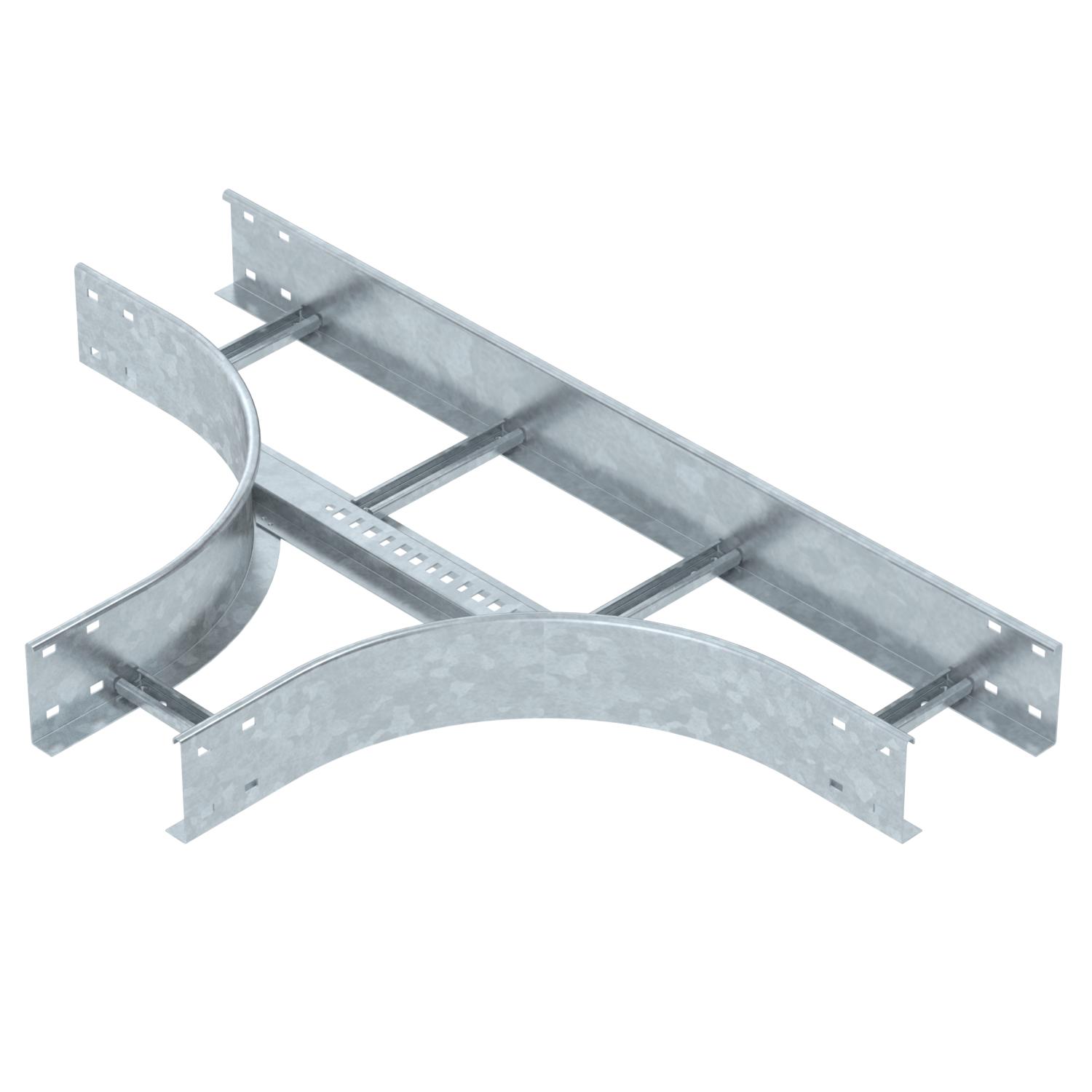

Product descriptionT piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data

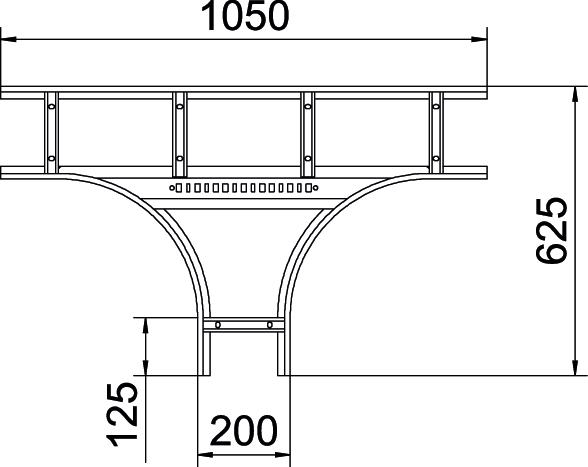

Colour zinc Connector version Without connectors Dimension 110x200 Dimension B 200 mm Dimension R 300 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FT
LVG 110 FT 6216548 - Downloads
-
Data sheet SLT 1120 R3 FT / 6225350 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity SLT 1120 R3 FT / 6225350 , 0.10MB , pdfUK Declaration of Conformity SLT 1120 R3 FT / 6225350 , 0.09MB , pdfREACH Declaration of conformity SLT 1120 R3 FT / 6225350 , 0.12MB , pdfRoHS Declaration of conformity SLT 1120 R3 FT / 6225350 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
