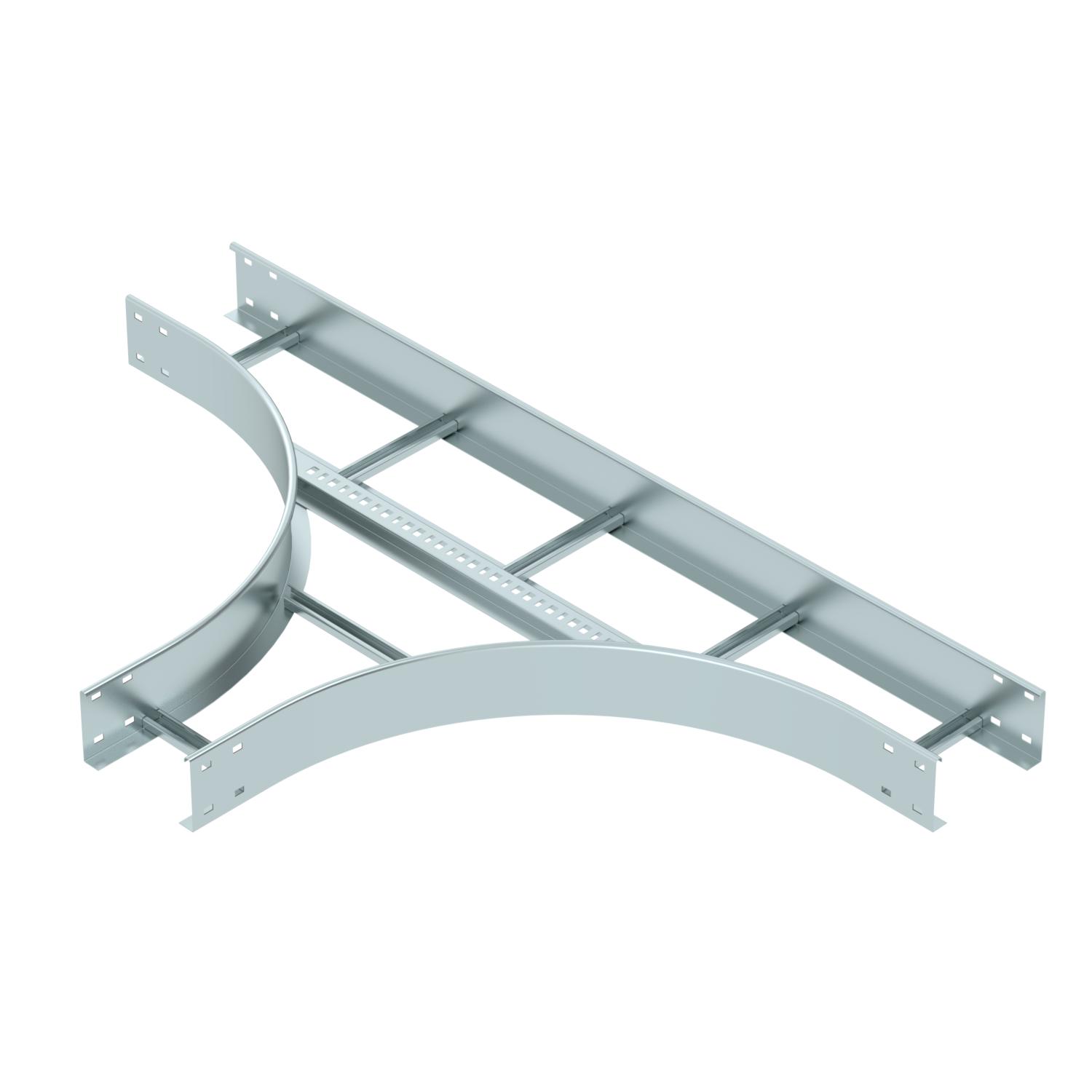

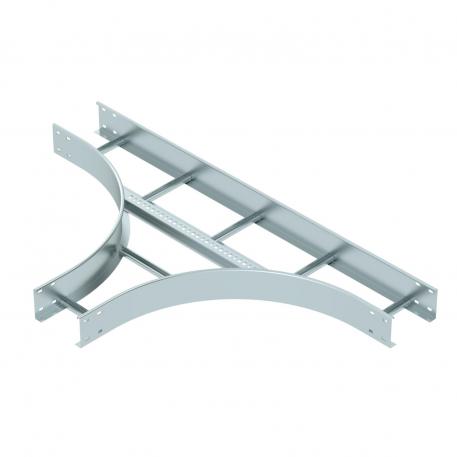

T piece 110 FS
Item no. 6219382 | EAN 4012196685899
- Product description
-
Product descriptionT piece to create a horizontal branch, fittings for cable ladders of side height110 mm. With connector perforation. Can be used in indoor areas. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data

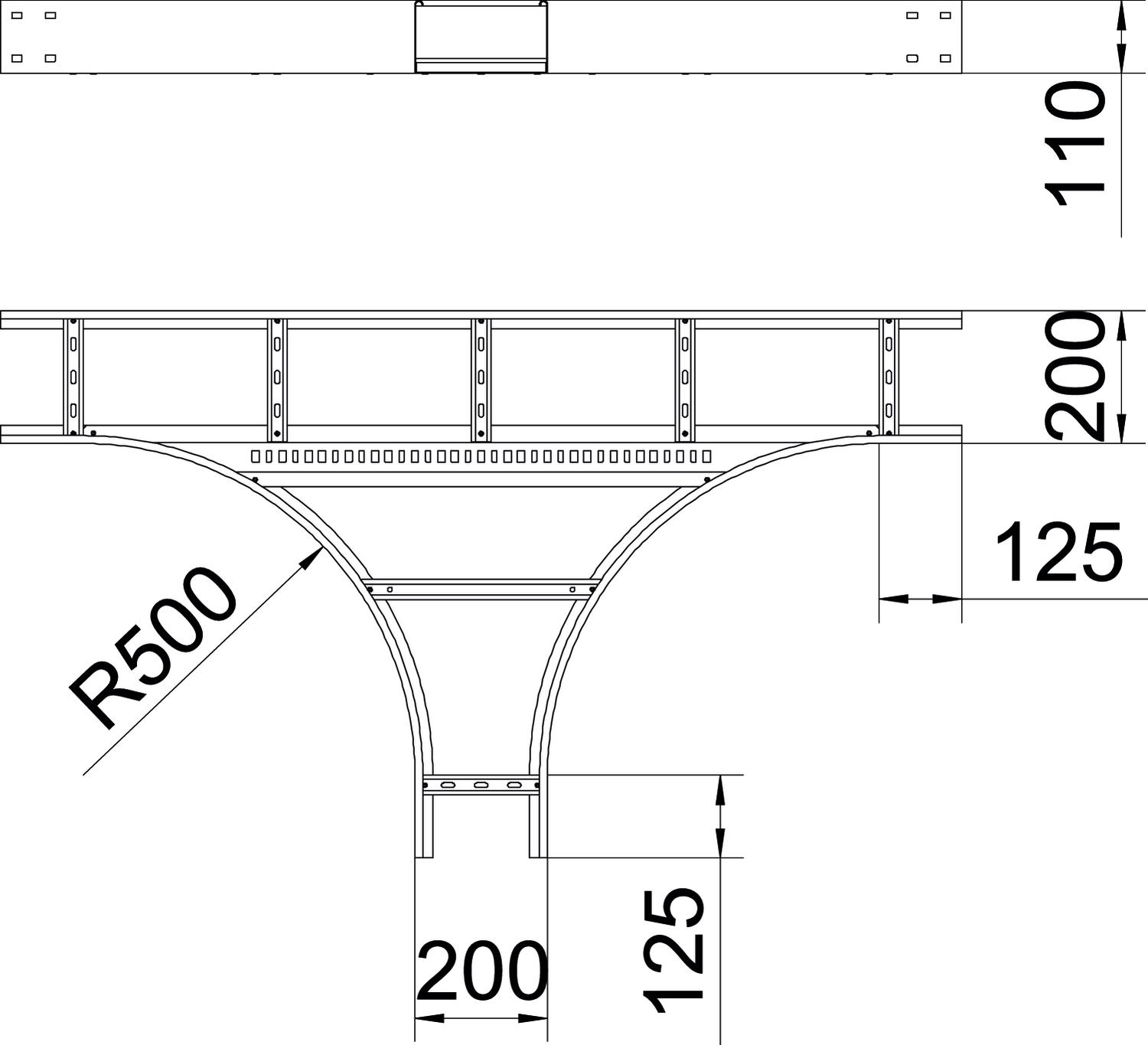

Colour zinc Dimension 110x200 Dimension B 200 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanized Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FS
LVG 110 FS 6216545 - Downloads
-
