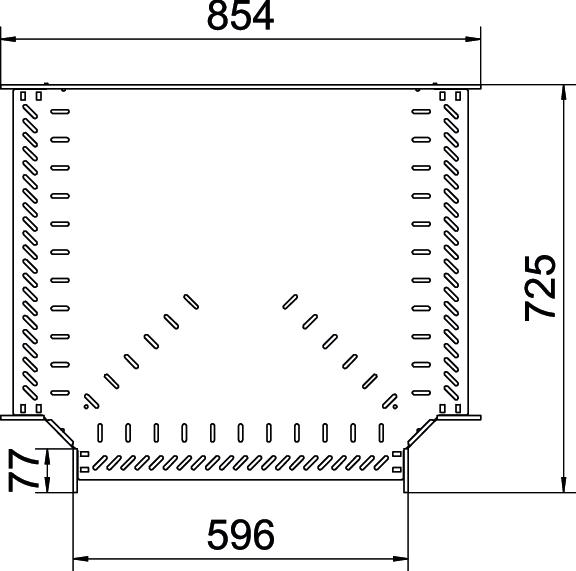

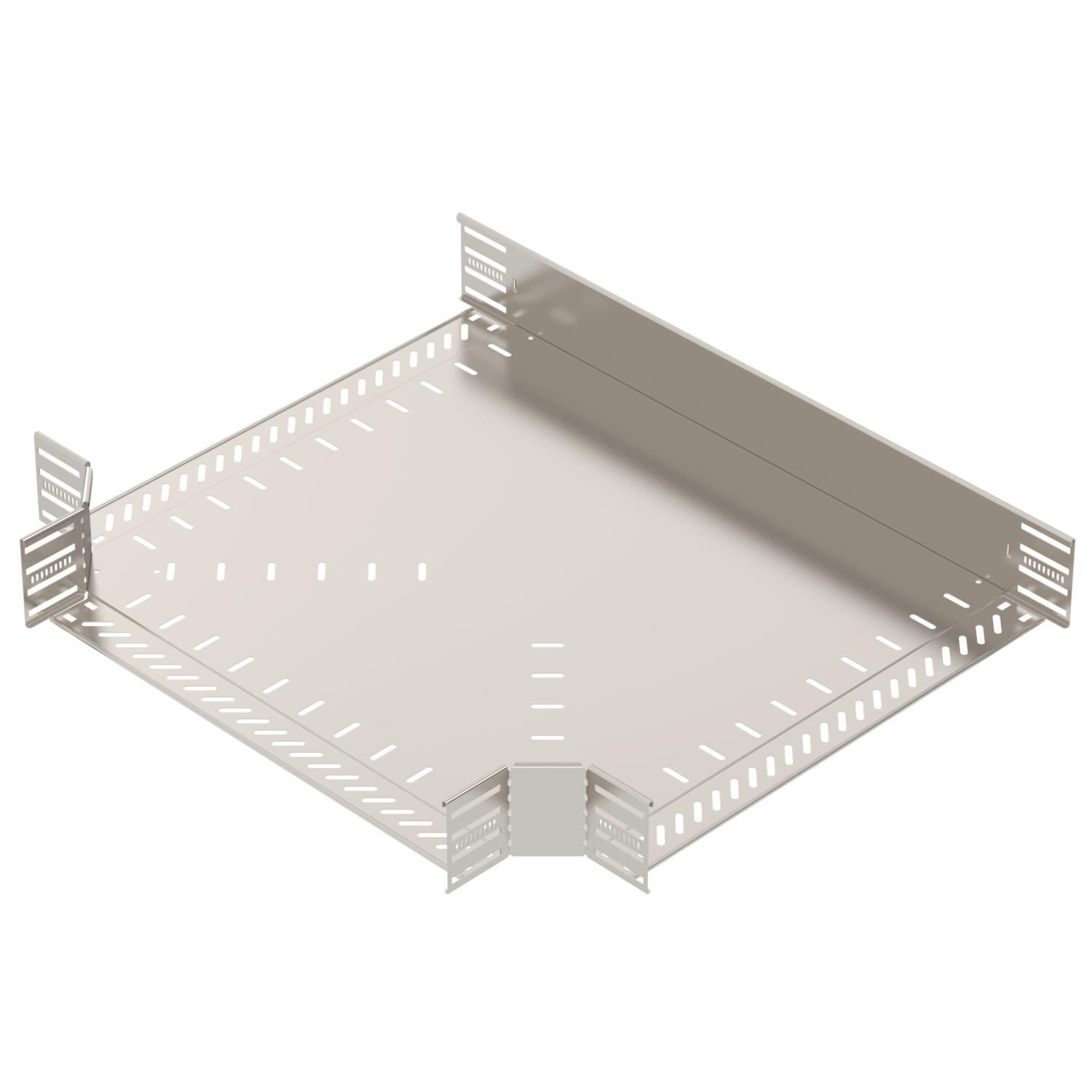

T piece 110/600 A2 600 | Stainless steel | Bright, treated

T piece 110/600 A2

Item no. 6038370 | EAN 4012197340551

Item no. / Types

Width

Material	Stainless steel

Surface	Bright, treated

Product description

Product description

T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	48,19 kg CO2e / 1 Piece
Colour	stainless steel
Connector version	Integrated connector
Dimension	110x600
Dimension B	600 mm
Height	110 mm
Maintain electrical functions	no
Material	Stainless steel
NATO hole pattern	no
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C

Plate thickness	1 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	36 St.
Rustproof steel, pickled	no
Surface	Bright, treated
Type	T piece horizontal
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	600 mm
Width of the branch	600 mm

All types

All types

Types	Width	Material	Surface	Item no.
RT 110 A2	100 mm	Stainless steel	Bright, treated	6038360
RT 120 A2	200 mm	Stainless steel	Bright, treated	6038362
RT 130 A2	300 mm	Stainless steel	Bright, treated	6038364
RT 140 A2	400 mm	Stainless steel	Bright, treated	6038366
RT 150 A2	500 mm	Stainless steel	Bright, treated	6038368
RT 160 A2	600 mm	Stainless steel	Bright, treated	6038370
