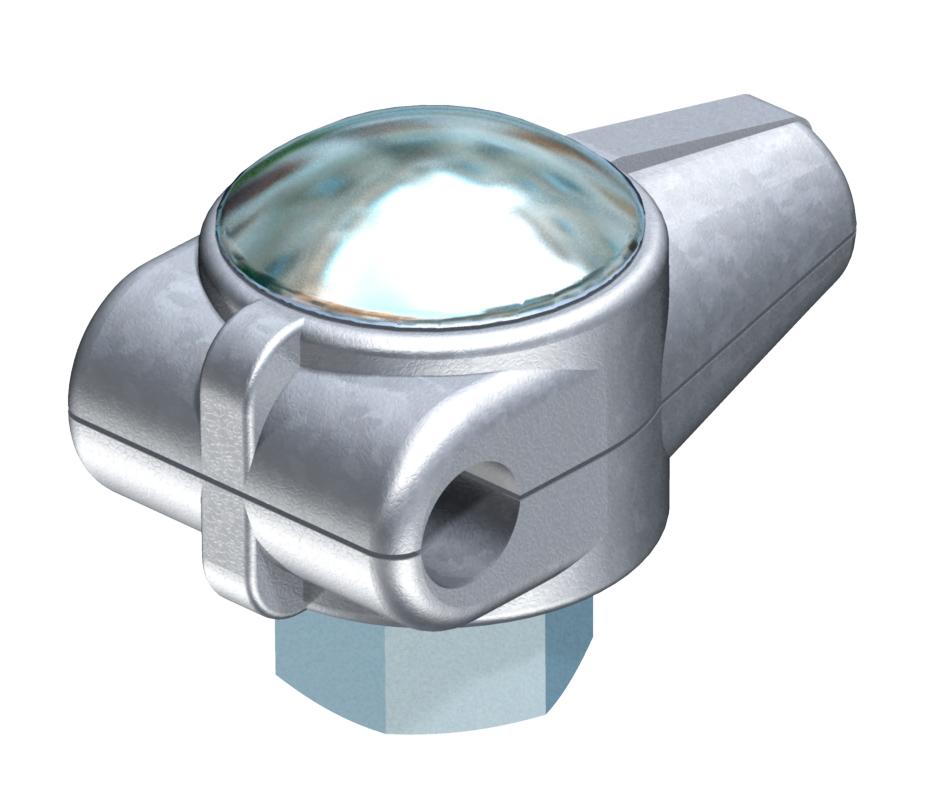

T connector Rd 8 mm
Item no. 5311039 | EAN 4012195417316
- Product description
-
Product description• With truss-head bolt M10 x 30 and hexagonal nut M10
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,7061 kg CO2e / 1 Piece Dimension 8mm Fit Rd 8 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Die-cast zinc Suitable for connection Round conductor Rd 8 / Rd 8 Surface Electrogalvanized Type of connector T connector Type of fastening screw Gutter bolt - All types
- Downloads
-
Data sheet 244 / 5311039 , 0.16MB , pdfEU declaration of conformity 244 / 5311039 , 0.06MB , pdfREACH Declaration of conformity 244 / 5311039 , 0.12MB , pdfRoHS Declaration of conformity 244 / 5311039 , 0.12MB , pdf
